JVL...intelligent motors

Probably the best integrated motors in the world

Double power, same size
MAC320 new integrated servo motor fills the gap between current motor sizes
It offers extreme compactness and double power compared to the MAC141


SPS | Hall 4 Booth 301 | Nuremberg, 8.-10. November 2022


MAC320


SPS

Contact JVL for a free e-ticket

Get your free ticket now, simply by contacting JVL. We will then send you a ticket code.

It is a great opportunity to meet JVL and discuss your application and requirements.

Book a meeting with JVL

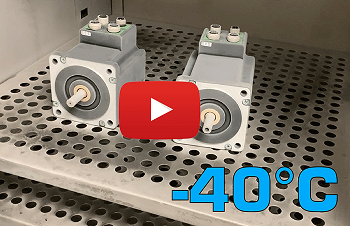

Extreme environmental test

Extreme Environmental Test

Follow a JVL motor through the harsh IP66 environmental approval recorded in first person view.

Performed in JVL's official inhouse test lab.

Click here for the video


Quickguide

Quick power connection guide for MIS17-43

In just 3 minutes you get all the important information about how to connect JVL's ServoStep motors NEMA17-43.

You learn the basic specifications, color coding and about pitfalls to avoid.

Click for more videos

Click for MIS product page


ServoStep range

ServoStep range

JVL supplies integrated stepper motors with closed-loop, ePLC, multiturn encoder and Ethernet inside.

NEMA17-43 (0,18-25Nm)

Read more about all the options in the flyer

Click for flyer

Click for more information


New shafts for direct mouunt

New shafts for direct mount

NEMA23 motors are now available with hollow shaft or oversized shaft. Both motor types have large double row ball bearings so you can directly mount a spindle or timing belt wheel. No coupling needed.

For linear motor

Click for press release


Motorsizer

MotorSizer 4.0 sizing tool

With the free JVL software MotorSizer you can calculate and show the combinations of motors and gears that can run the application according to your specifications.

Possible types of drive set-ups include:

  • A belt driven construction
  • A lead screw construction
  • A rotary disc construction

Click for more information

Click for press release

Click for webinar

Try MotorSizer now.
Login: demo@jvl.dk
Password: demo
Valid for 1 month or register your own account.


MAC140

3. generation of MAC 141 W servo motor

The new generation of MAC141 offers absolute multiturn encoder based on the Wiegand principle where no battery is needed. Encoder resolution up to 8196 CPR which doubles the resolution of the previous generation MAC141.

Furthermore, increased efficiency and a cooler motor is achieved.

Optional, the motor is available with STO and protection rating up to IP65.

Click for more information

Click for press release


Servo vs Stepper

Servo vs Stepper

Servo vs Stepper - pros and cons presented in this epic motor type battle!

Click here for the video


MIS171

Probably the best integrated motor in the world right now!

NEMA17 with up-to 3000 RPM, integrated Ethernet and switch, closed-loop (no stall), embedded PLC and much more! Our MIS171 is presented at the Hannover Fair 2022 by Kenneth Pilheden.

Click here for the video

See more about JVL integrated step motors with closed-loop here

JVL - What else!


MAC800

MAC800 - Worlds Most Compact 750 W Integrated Servo Motor

RMS power 746 W S1 and 6.8 Nm Peak. The MAC motor® series consists of compact and efficient motors where controller, PLC, encoder, power supply and bus system are integrated in one unit. Optional industrial Ethernet, fieldbus, IP protection class, abs. multiturn encoder, brake and much more.

Click for more information

Click for press release


IO-Link

IO-Link

JVL can now also connect to IO-Link via our new IO-Link Gateway which can be used on both our MAC motor® integrated servo motors and ServoStep integrated stepper motors.

IO-Link is a cost effective alternative to industrial Ethernet.

For ServoStep you can additionally run 2-5 motors on 1 pcs IO-Link Gateway using multidrop, reducing cost even more.

Click for more information

Click for video

Click for press release



MAC motor range

MAC motor® range

JVL supplies integrated servo motors with ePLC, brake, multiturn encoder and support for all Ethernet protocols.

50-4500 Watt.

Read more about all the options in the flyer.

Click for flyer

Click for more information


MIS23 w. clamp and pin

Motor for direct mount of a timing-belt wheel

The new MIS23xx49 ServoStep motor features a large 14 shaft and double row ball bearing.

The oversized bearing allows high radial forces directly on the motor shaft - up to 5100 N.

This combination can shorten your overall design length and save you the cost of an additional bearing housing.

The ServoStep motor is an all-in-one unit with embedded ePLC and 2 port Ethernet switch.

Click for more information

Click for press release integrated motor

Click for press release spindle drives


Actuator table

New master-slave sync support

JVL now supports master-slave synchronization without external PLC. The new feature will let you quickly set up applications like lifting a load in 4 corners.

MacTalk is used to program the master motor. You can connect up to three slaves. The master automatically finds the slaves on the bus, and the master automatically configures them.

A primary benefit is the speedy setup time.

For easy control, a JVL HMI can be added to the master motor.

The new Master-slave feature is supported by all MIS Integrated ServoStep motors with CANopen.

Click for more information

Click for press release



MAC101

Stainless steel MAC101 with absolute multiturn encoder

Integrated Servo Motor in stainless steel and IP69K. Ideal for the food and medico industry.

Protected against both high pressure and high temperature washdowns used in pharmaceutical and food production.

RMS power 100 W, 370 W peak power and optional built-in gear offers up-to 37.8 Nm.

Click for more information

Click for press release


STO

STO SIL3/PLe TÜV-approved for integrated motors ServoStep size NEMA 17-43

JVL can now offer TÜV-approved STO-functionality (Safe Torque Off) for the whole range of ServoStep integrated stepper motors, from size NEMA 17 to NEMA 43.

The STO Function is used for disabling the energy to the motor. The motor will thereby be set in a state where it produces no torque. The STO function is the most common and basic drive-integrated safety function. It ensures that no torque-generating energy can continue to act upon a motor and prevents unintentional starting.

Click for more information

Read more about motors with STO
