MIS23x Servostep with Double row ball bearing up to 7100N axial load for external ball or lead screw


NEMA23 ultra compact and all in one Integrated ServoStep Motors with Closed-Loop, Ethernet, multiturn encoder. Mount external ball or leadscrews directly in hollow shaft with a clamp or a pin.  Alternative use the model with 14mm shaft for toothwehl applications with extreme high radial load force


Features:
  • Double row ball bearing
  • Ultra compact. All in one
  • Hollow shaft 8 or 12mm
  • Output shaft 14mm with key
  • Torque pin at 24 or 33,3mm
  • Hollow shaft with bottom M5 thread
  • High performance driver technology
  • Steppermotor with ultra high torque
  • IP42 or IP65/67 protection
  • Absolute multiturn encoder
  • 6 different Industrial Ethernet
  • Controller with 8IOA
  • Driver 409600 step/rev
  • Peak power 177 or 316W
  • Closed loop. High efficiency







What is inside?

Part number
Running Torque
Length
Shaft
Power
Weight
Drawing
MIS232Q66..
1.97
144

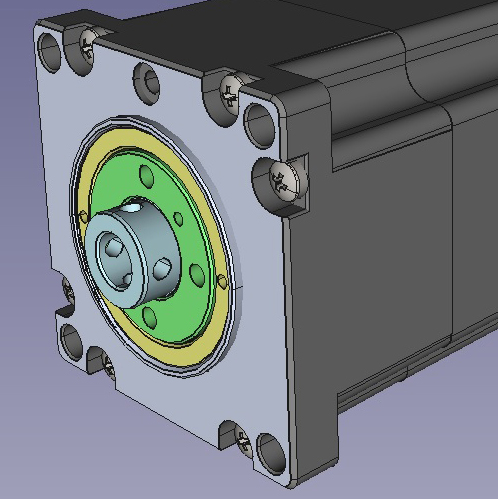

Ø8 Hollow + pin
221

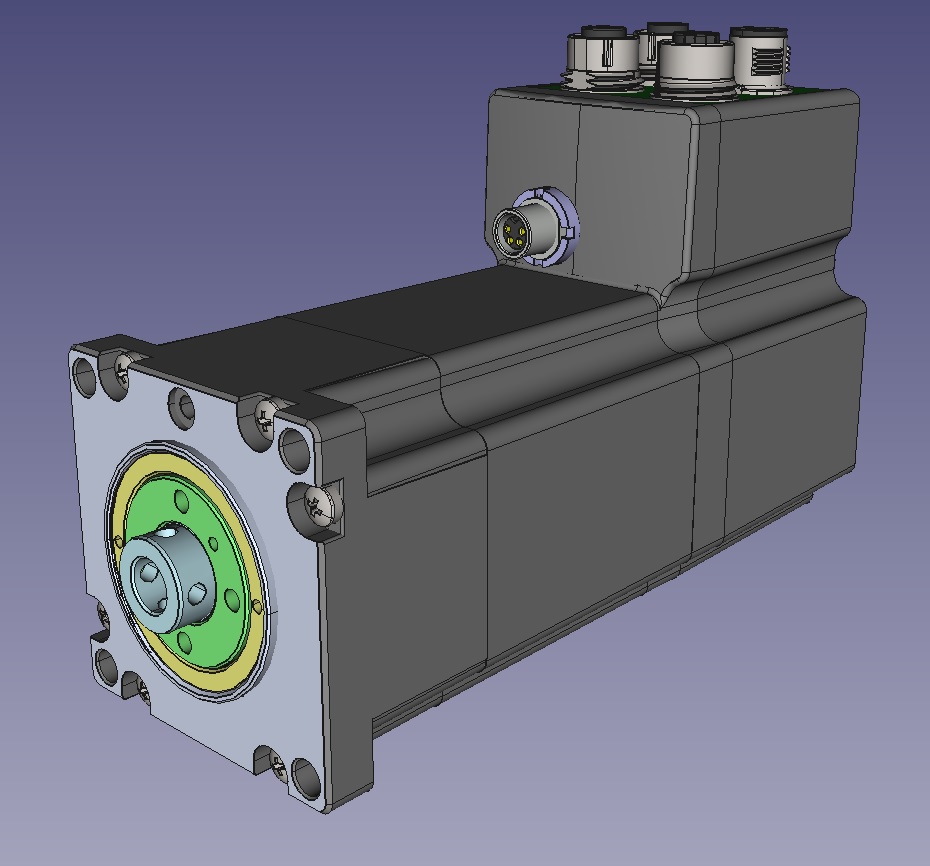

MIS232S66..
1.97 144
Ø8 Hollow + pin
221


MIS232Q67..
1.97
144

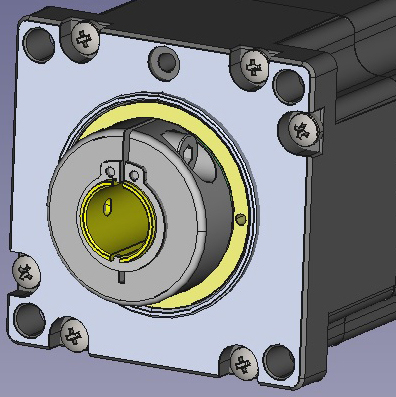

Ø12 Hollow + Clamp 221

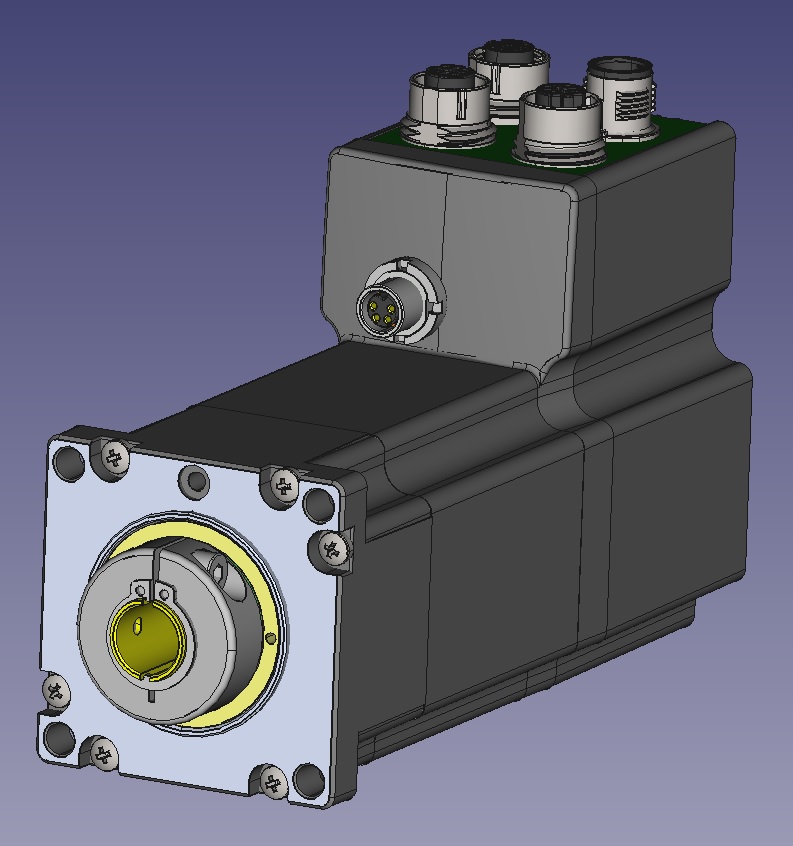

MIS232S67..
1.97 144
Ø12 Hollow + Clamp 221




MIS231Q49..
0.97
123
Ø14 with keyway
177



MIS231S49..
0.97
123
Ø14 with keyway
177


MIS232R49..
2.53
144
Ø14 with keyway
316



MIS232T49..
2.53
144
Ø14 with keyway
316




Example of screws available for option 66 and 67:
Item no.
Description*
Lead: [mm/rev]
Screw length [mm]**
Nut length [mm]**
Diameter [mm]
Drawing
HBWE-FA03G4S0050 Steel Trapezoidal lead screw, brass nut. 7th grade tolerance, light preload.
3
50
30
16

HBWE-R102F4S0050 Steel rolled ball screw, Flange type E ball screw nut. 7th grade tolerance, light preload.
2 50
30
12


HBWE-R105F4S0300 Steel rolled ball screw, Flange type E ball screw nut. 7th grade tolerance, light preload.
5 300
30
12


HBWE-R110F4S0300 Steel rolled ball screw, Flange type E ball screw nut. 7th grade tolerance, light preload.
10 300 30
12
*: Stainless steel screw is available but at a higher price, special screw coating currently not available.
**: Total length of threaded screw, for total travel length of the nut subtract the Nut length from Screw length.
