MotorSizer - Find the right solution for your application


-MotorSizerTM 4.0

MotorSizer 4.0 is a web based software freely available on the Internet 24 hours a day.

MotorSizer 4.0 is our own WEB tool, which you can use to find the perfect JVL motor and gear for your application.

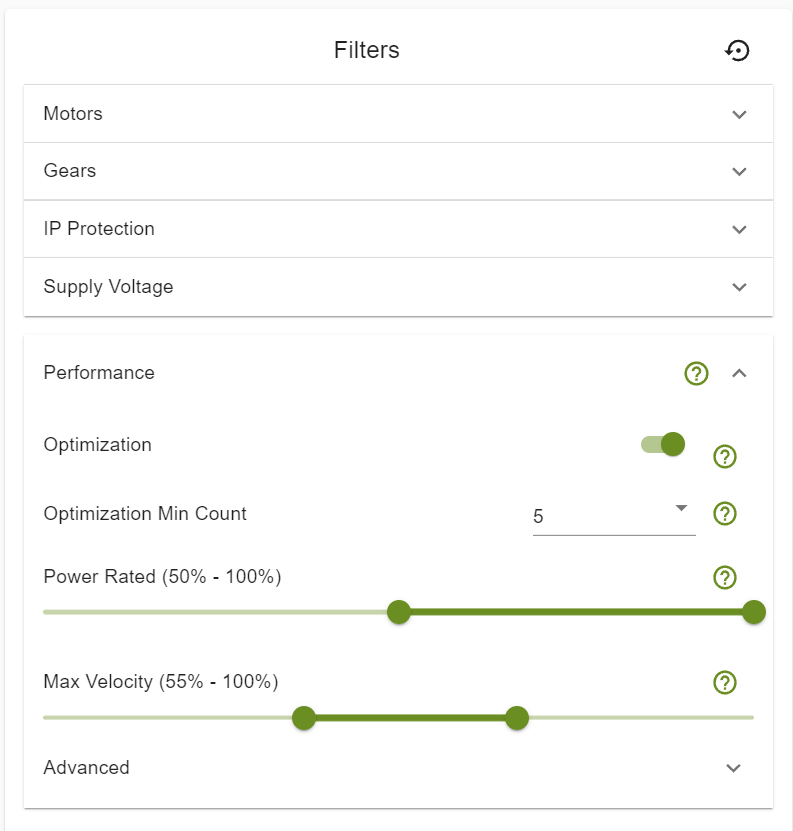

MotorSizer 4.0 differs from the previous version in many ways, but most important is that you now can describe your application and any requirements you may have like IP degree, brake or STO.

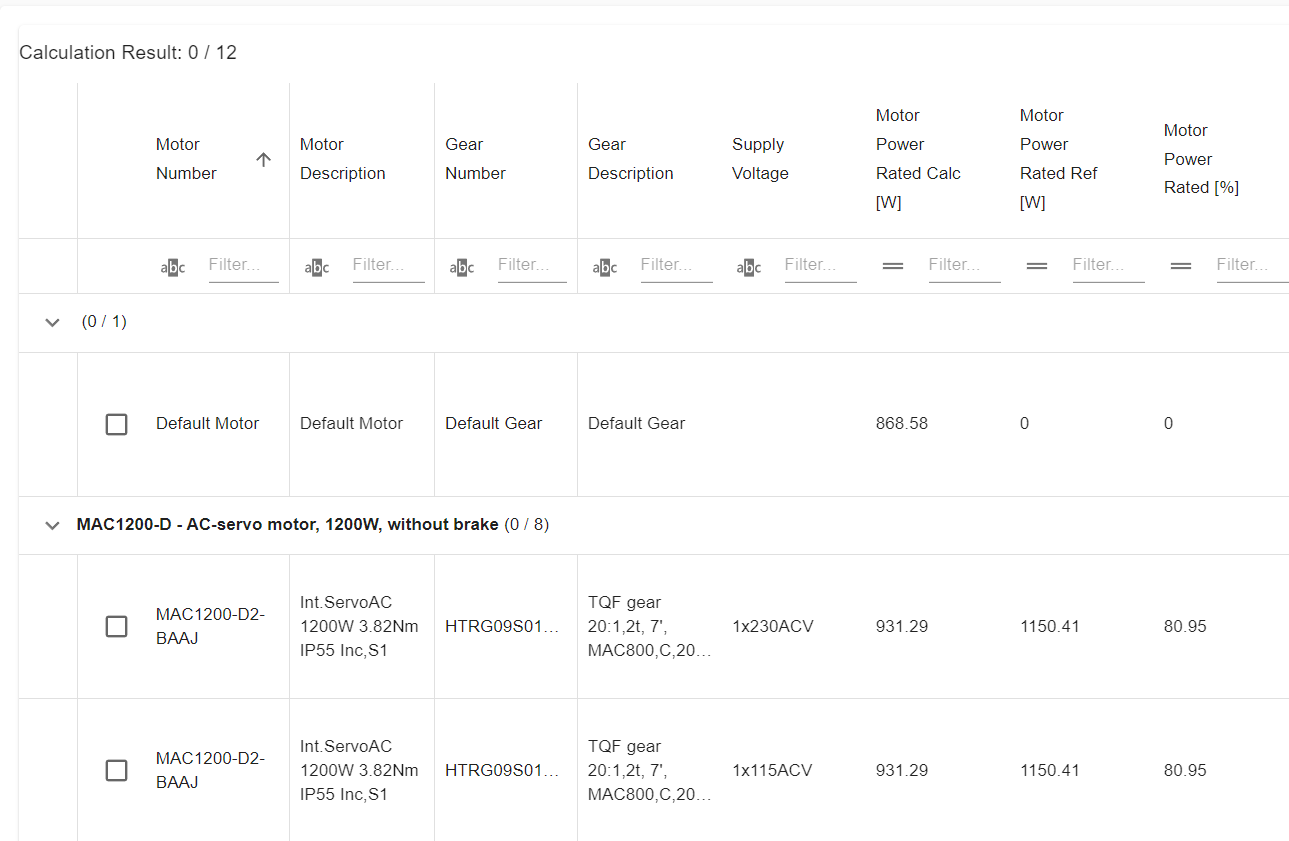

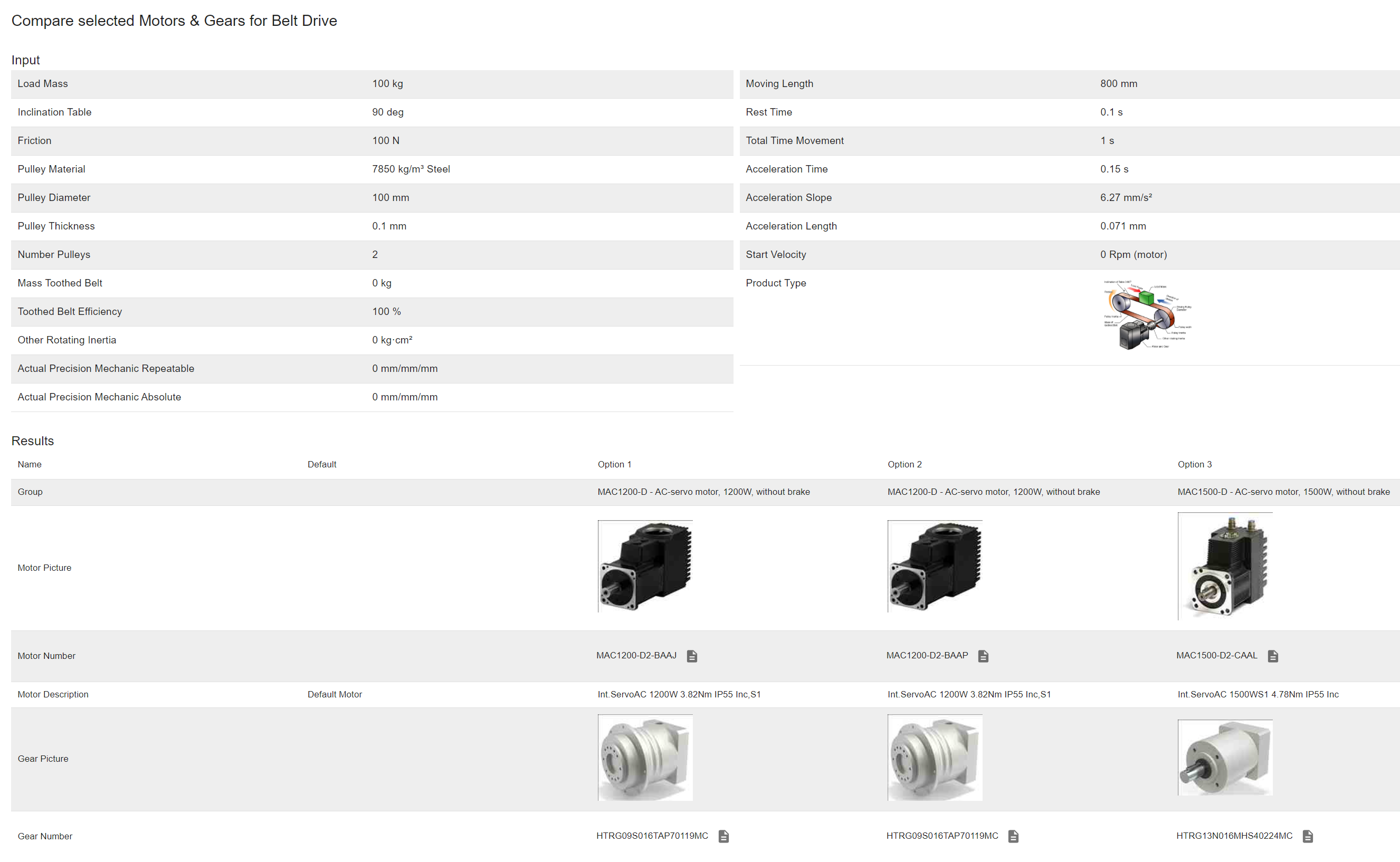

MotorSizer 4.0 can then tell you which motor and gear combinations that we have and can be used and you can decide between the different options available.

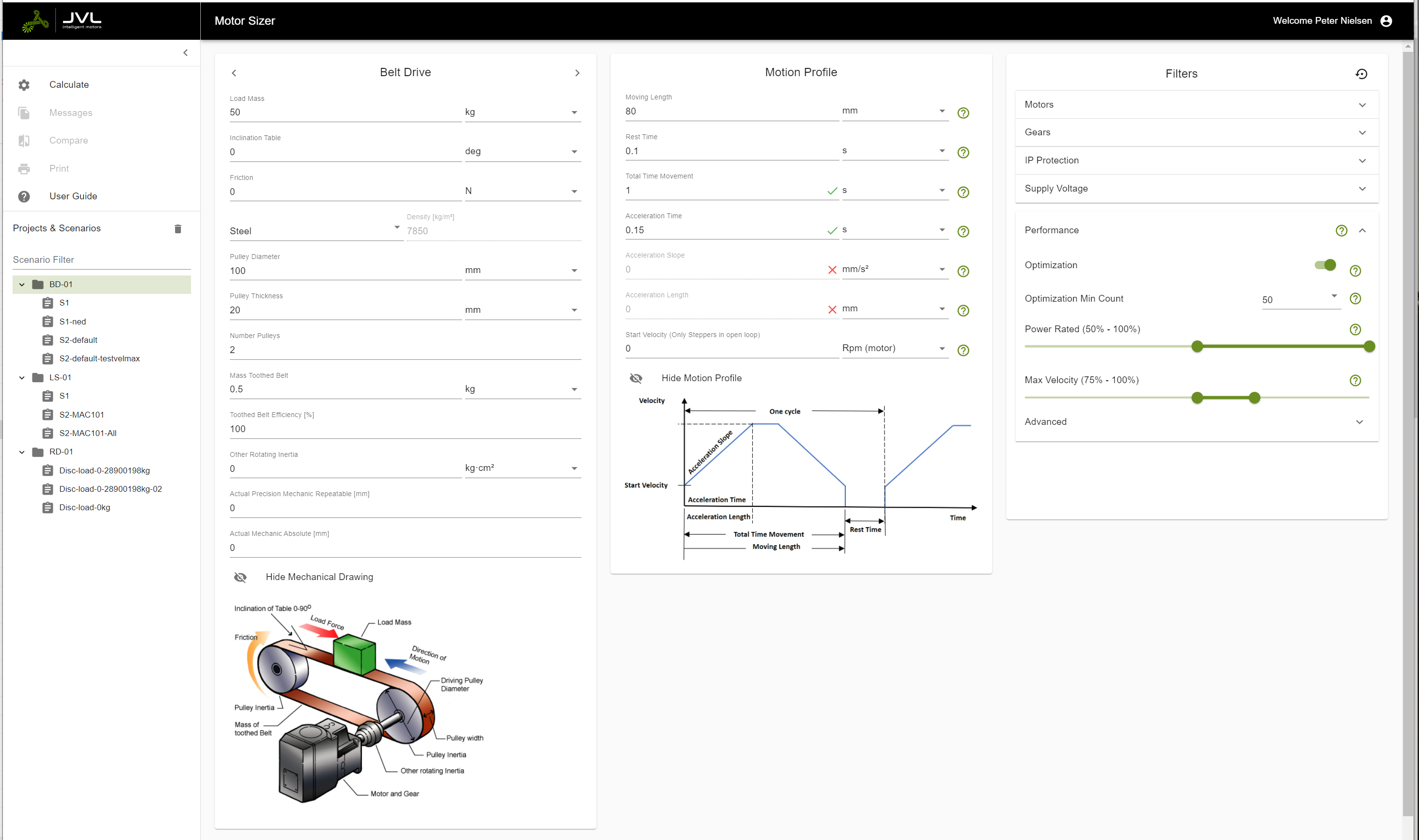

MotorSizer 4.0 is very easy to use. A single screen picture is used for displaying all parameters. Once the known values have been keyed in, simply select CALCULATE to display the results of the configuration.


JVL - motorsizer is a free software to help you choose the rigth integrated servo or stepper motor
Motorsizer software is a smart tool to determine the rigth JVL smartmotor & gear

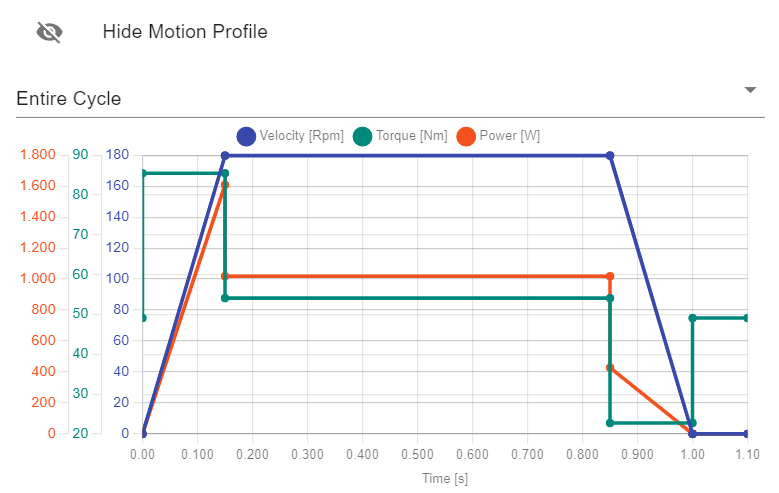

Example of motorsizer chart
Smart software from JVL - motorsizer calculate all paremeters
motosizer is a free and easy to use software by JVL, for helping to choose the rigth gear & smartmotor.

- Easy to use
- Single screen for all calculations
- Can be used for dimensioning JVL Stepper and AC-Servo Motors
- Following parameters can be keyed-in:
Distance - Acceleration - Time - Load - Delay
Mechanical information - Vertical/Horizontal movement
- Can calculate with or without gearing on various applications: Spindle - Drive belt - Disc
- Also ideal for educational purposes

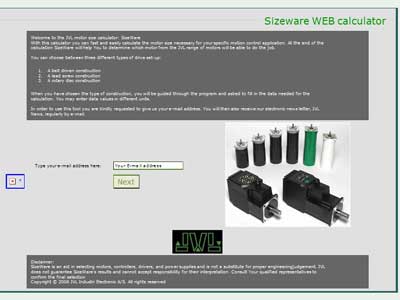

-MotorSizerTM 3.0

MotorSizer is a web based software freely available on the Internet 24 hours a day.

MotorSizer makes it very easy to determine the required motor and gear size for a specific task in applications such as machine design, education and research.

MotorSizer enables you to key-in all commonly required parameter values that influence the motor torque or power required in order to achieve the desired motion.

MotorSizer can be used for calculation of the correct motor and gear size for AC-Servo, DC-Servo, and Stepper motors.

MotorSizer is very easy to use. A single screen picture is used for displaying all parameters. Once the known values have been keyed in, simply select CALCULATE to display the results of the configuration.


JVL - motorsizer is a free software to help you choose the rigth integrated servo or stepper motor
Motorsizer software is a smart tool to determine the rigth JVL smartmotor & gear
Example of motorsizer chart
Smart software from JVL - motorsizer calculate all paremeters
motosizer is a free and easy to use software by JVL, for helping to choose the rigth gear & smartmotor.

- Easy to use
- Single screen for all calculations
- Can be used for dimensioning Step, AC-, and DC-Servo Motors
- Following parameters can be keyed-in:
Velocity - Acceleration - Time - Load
Motor Inertia - Gear Inertia
Vertical/Horizontal movement - Safety factor
- Can calculate with or without gearing on various drives: Spindle - Drive belt - Disc
- Also ideal for educational purposes
