Order no. |
Torque
Holding/Running
(Nm)* |
Protec-
tion
(Optional) |
|
|
Stepper Motor NEMA17 42x42mm Flange
|
|
|
0.37/0.37
0.56/0.56
0.80/0.80
|
Standard IP42 (IP65)
|
Integrated w/ SMC66 |
|

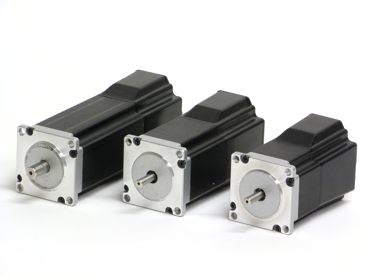

Stepper Motor NEMA23 57x57mm Flange
|
|
|
0.97/0.97
1.97/1.97
3.08/3.08 |
Standard IP42 (IP65)
|
Integrated w/ SMC66
|
|
|
|
1.16/1.16
2.53/2.53
|
Standard
IP42 (IP65)
|
Integrated w/ SMC66 |
|
MIS231A
MIS232A
MIS234A |
1.3/1.1
1.8/1.6
3.0/2.9 |
Standard
IP42
(IP65) |
Integrated |
|
Stepper Motor NEMA34 86x86mm Flange
|
MIS340C
MIS341C
MIS342C
MIS343C |
3.0/3.0
5.1/5.1
9.0/9.0
12.0/12.0 |
Standard
IP42
(IP65) |
Integrated |
|
Stepper Motor NEMA43 110x110mm Flange
|
MIS430C
MIS431C
MIS432C |
10.0/10.0
18.7/18.7
25.0/25.0
|
Standard
IP42 |
Integrated |
|
*Values are truncated.
|
Order no. |
Max. Current
(A) |
Protec-
tion
(Optional) |
|
|
Stepper Motor Controller SMC75 Max. 3 Amp
|
| SMC75xxMx |
3 |
Standard
IP42 |
SMC75 with housing |
|
| SMC75xx |
3 |
Open board |
SMC75 with no housing |
 |
Stepper Motor Controller SMC66 Max. 6 Amp
|
|
SMC66xx |
6 |
Standard
IP42
(IP65) |
SMC66 with housing |
|
| SMC66xx |
6 |
Open board
|
SMC66 PLC |
|
Stepper Motor Controller SMC85 Max. 9 Amp
|
|
SMC85xxMx |
9 |
Standard
IP42
(IP65) |
SMC85 with housing |
|
| SMC85xx |
9 |
Open board
|
SMC85 PLC |
|
|
|

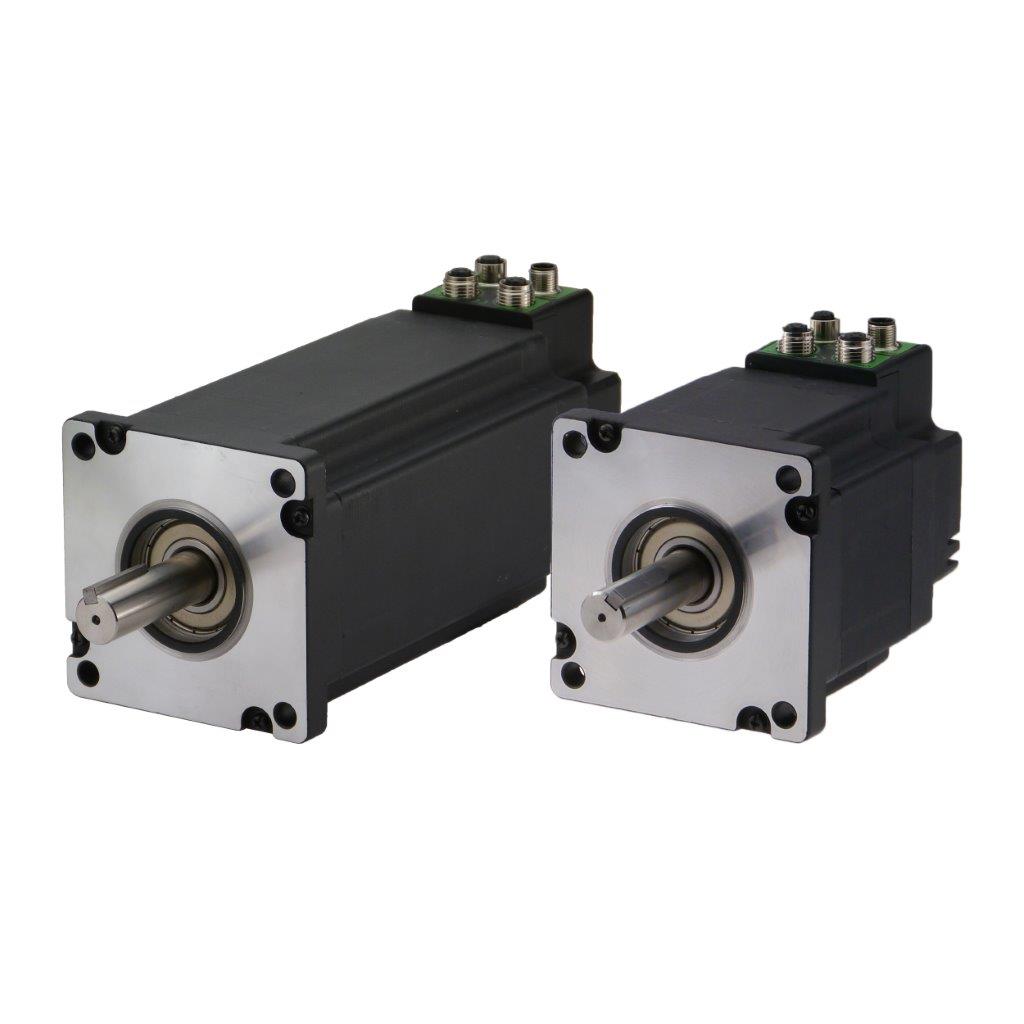

The MIS motor - the complete motion solution Stepper motor with integrated controller All necessary components in one unit
The basic idea of the MIS motor is to minimize the installation costs but also to make a component that is much better protected against electrical noise which can be a problem when using long cables between controller and motor.
The stepper motor, hallsensor, encoder and electronics are specially developed by JVL so that they together form an enclosed unit where the power driver and controller are mounted inside the motor in a closed section.
The MIS motors can be delivered in sizes of 0.36 to 25.0.
Adapt your motor to your application with firmware

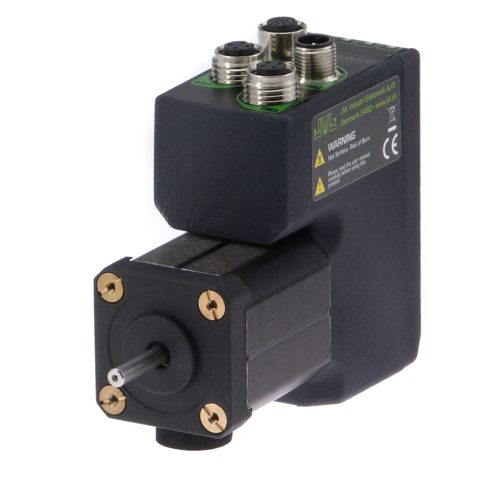

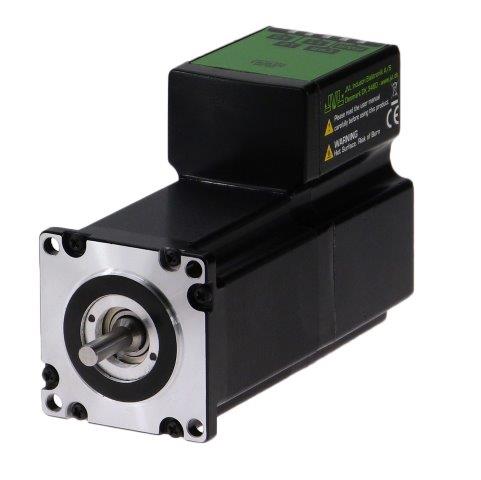

JVL MIS Integrated Stepper Motors can be delivered with different numbers of M12 connectors depending on the application. MIS17x and MIS23x motors can be delivered with RS485 interface and PLC built-in and optional CANopen. MIS34x and MIS43x have RS485 and PLC built-in and optional Profinet, EtherCAT, Ethernet/IP, Powerlink or MODBUS TCP/IP interface.
All MIS motors have optional magnetic absolute encoder built-in and MIS34x and MIS43 have optional absolute multiturn encoder built-in.
Read more in the Quickstep brochure or click on the pictures for more information.
|
