servo motor - 13.5 kW peak
 |
Contact JVL for a free e-ticketGet your free ticket now, simply by contacting JVL. We will then send you a ticket code. It is a great opportunity to meet JVL and discuss your application and requirements. |
|---|
|

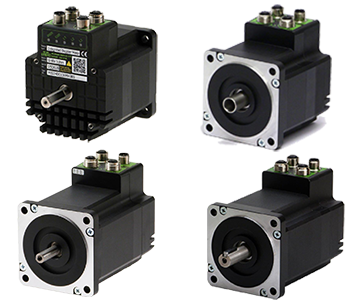

ServoStepTM in size NEMA34 keeps expandingLarge variety of shaft versions: Ø9.53 mm, Ø14.0 mm, double shaft, hollow shaft and now also Ø12.7 mm. Market leading resolution of 409600 counts/rev Optional Ethernet protocols and possibility to daisy-chain Ethernet cables from motor to motor. |
|---|
|
High power positioning in a small all-in-one packageThe new integrated servo motor MAC083 offers 83 W / 4000RPM at 24VDC and 250W peak. This makes it the most powerful integrated motor in the NEMA23, length 110 mm. Optional with absolute multiturn encoder based on the Wiegand principle where no battery is needed. |
|---|
|
Power Supply OptimizerNew combined power dump and 24VDC control power supply. The new power supply optimizer is designed to address this problem, by adding a built-in power dump circuit to the power cable.
|
|---|
|
320 W Stainless Steel Servo IP69KMAC231 - All-in-one Integrated servo motor in stainless steel and IP69K. Ideal for harsh environments. Protected against both high pressure and high temperature washdowns. 320 W RMS power S3 with 25% duty cycle and 750 W peak. 50 Nm with optional built-in gearbox. |
|---|
 |
IO-LinkJVL can now also connect to IO-Link via our new IO-Link Gateway which can be used on both our MAC motor® integrated servo motors and ServoStepTM integrated stepper motors. IO-Link is a cost effective alternative to industrial Ethernet. For ServoStepTM you can additionally run 2-5 motors on 1 pcs IO-Link Gateway using multidrop, reducing cost even more. |
|---|
|
ServoStepTM rangeJVL supplies integrated stepper motors with closed-loop, ePLCTM, multiturn encoder and Ethernet inside. NEMA17-43 (0.18-25Nm) Read more about all the options in the flyer |
|---|
 |
Industrial Wireless EthernetSupporting both EtherNet/IP, Profinet and ModbusTCP/UDP, JVL can now deliver wireless Ethernet for the whole range of ServoStep motors, NEMA17-43. Set up your motors as Client or Access Point, using 2.4 GHz or 5 GHz. To avoid cabling, use a battery for motor power. Combined with the closed-loop feature an energy saving of 93% can be reached. |
|---|
|
Quick power connection guide for MIS17-43In just 3 minutes you get all the important information about how to connect JVL's ServoStepTM motors NEMA17-43. You learn the basic specifications, color coding and about pitfalls to avoid. |
|---|
|
New shafts for direct mountNEMA23 motors are now available with hollow shaft or oversized shaft. Both motor types have large double row ball bearings so you can directly mount a spindle or timing belt wheel. No coupling needed. |
|---|
|
MotorSizer 4.0 sizing toolWith the free JVL software MotorSizer you can calculate and show the combinations of motors and gears that can run the application according to your specifications. Possible types of drive set-ups include:
|
|---|
|
MAC motor® rangeJVL supplies integrated servo motors with ePLCTM, brake, multiturn encoder and support for all Ethernet protocols. 50-4500 Watt. Read more about all the options in the flyer. |
|---|
|
Motor for direct mount of a timing-belt wheelThe new MIS23xx49 ServoStepTM motor features a large Ø14 shaft and double row ball bearing. The oversized bearing allows high radial forces directly on the motor shaft - up to 5100 N. This combination can shorten your overall design length and save you the cost of an additional bearing housing. The ServoStepTM motor is an all-in-one unit with embedded ePLCTM and 2 port Ethernet switch. |
|---|
