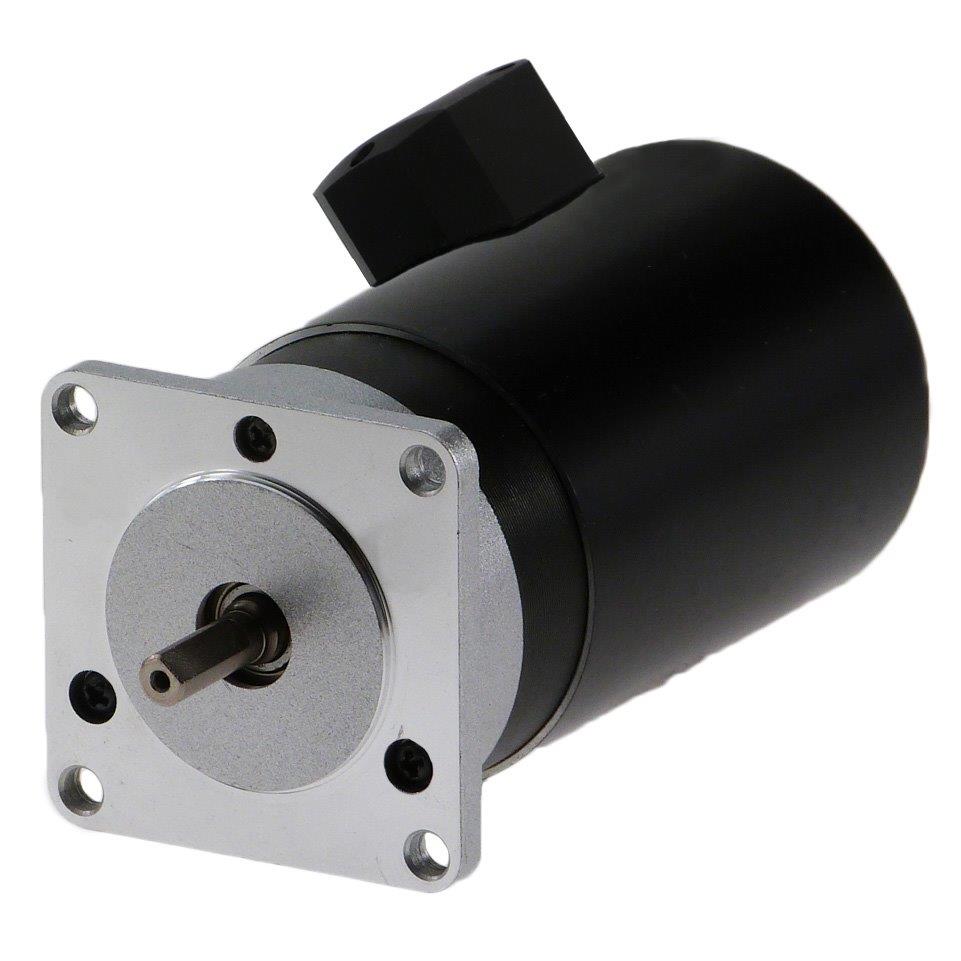

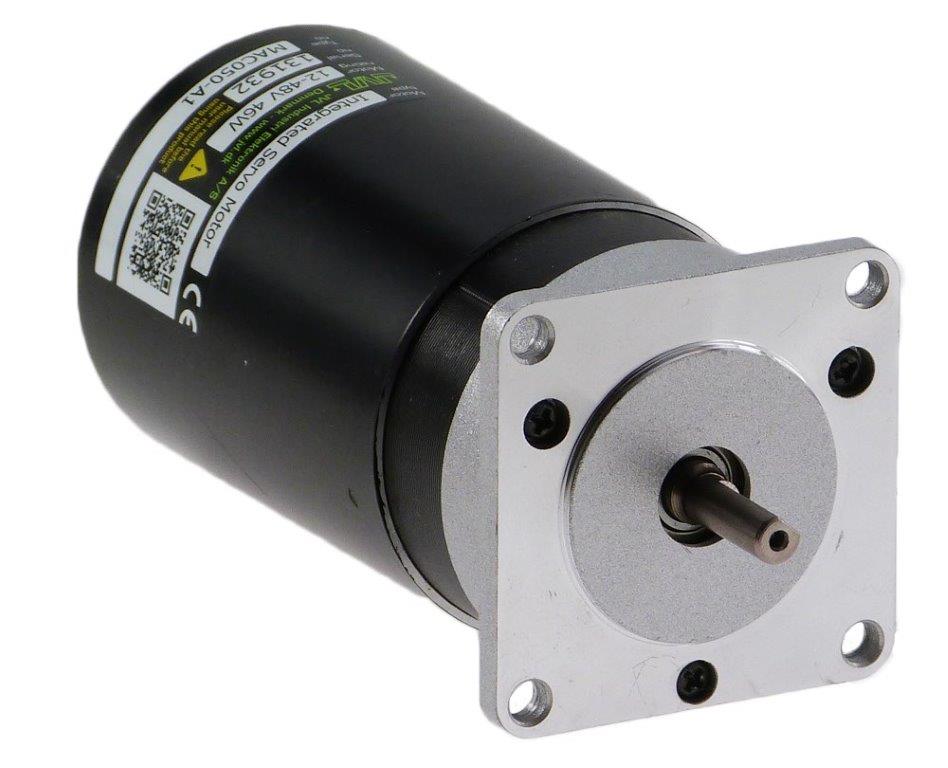

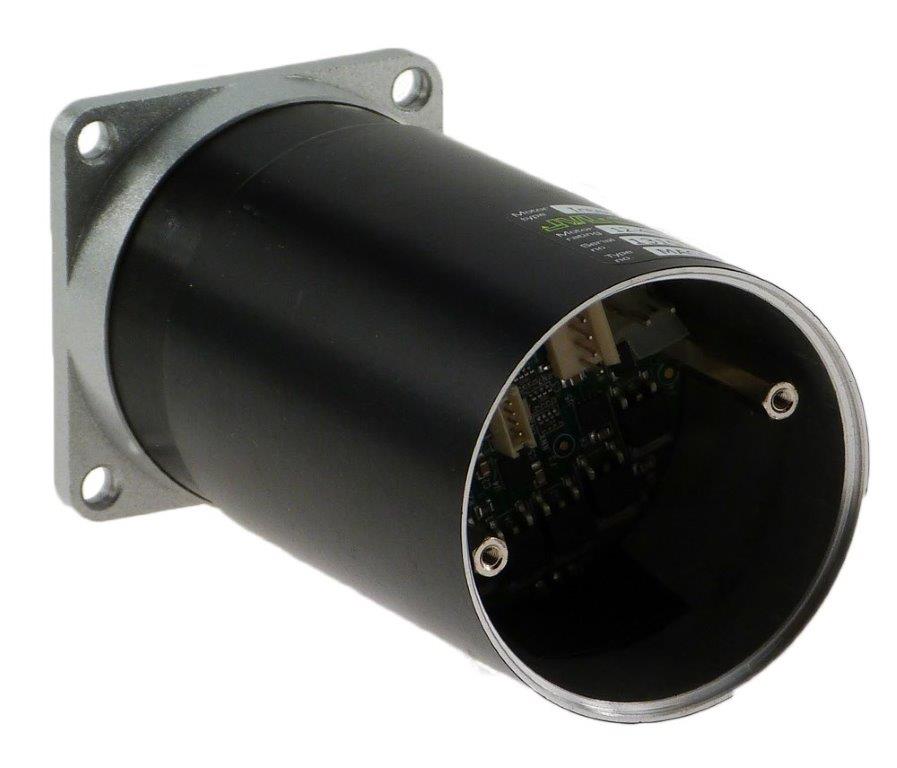

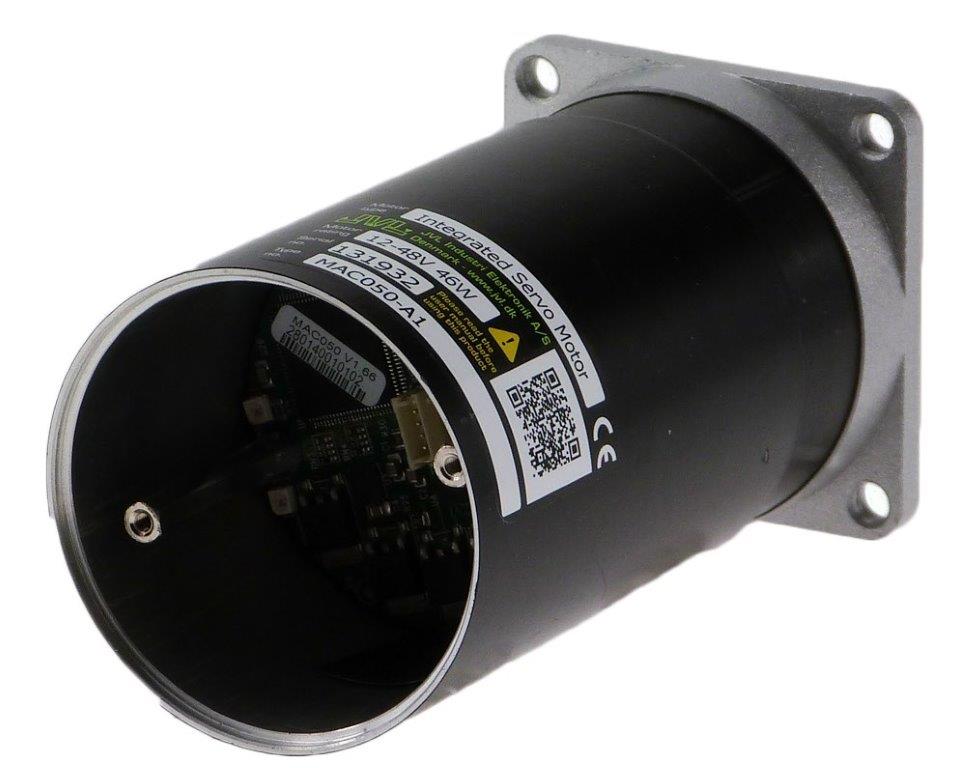

MAC083 Integrated Servo Motor 83 W, 4000 RPM at 24 VDC


83 W MAC motor® - Double Power but SAME size – with new generation of absolute multiturn encoder, based on
the Wiegand principle (harvesting) where no battery is required!

JVL has developed a new addition to our Mini-MAC series. The MAC083 - 83 W servo motor.
We have developed our most powerful integrated motor in the NEMA23 size.
The target application is high power positioning in a small all-in-one package.

Key features
  • Double Power – but SAME Size as MAC050 (50 W)
  • Very high torque-to-volume ratio
  • Special DC brushless motor for OEM applications
  • 3 times peak torque (250 W)
  • Recommended supply voltage 48 VDC from PSU or battery
  • Absolute multiturn encoder option. No battery or gear needed
  • Use JVL standard expansion modules for Ethernet, CAN bus and PLC applications
  • Option for STO connector
  • ±0.52° position precision (±9.1 counts) due to magnetic encoder










What is new?
  • Absolute multiturn encoder based on harvesting technology without battery or gear
  • Ethernet with high performance similar to the larger MAC motors
  • New MOSFET technology for higher efficiency and cooler motor
  • Encoder resolution 8192 CPR (higher resolutions planned)
  • Options: STO and/or Brake connector
  • More advanced FOC filter for lower noise and better motor performance




Part number
 Length [mm]
Power [W]
Torque [Nm]
 Protection rating
 Type
 Drawing

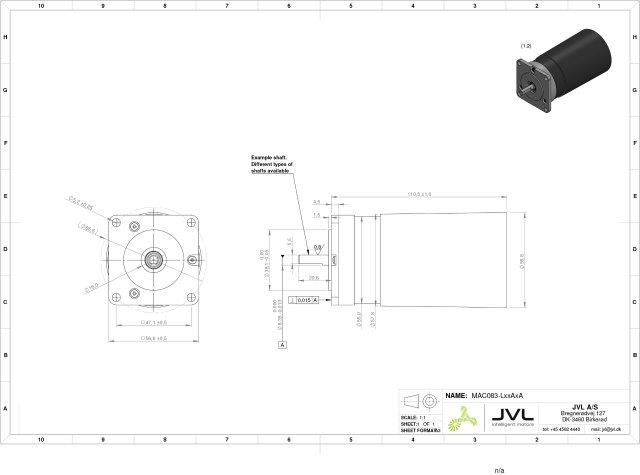

MAC083-L1GAAA
 110.5
83W@24VDC
0.2
 IP42
 Magnetic encoder 8192CPR

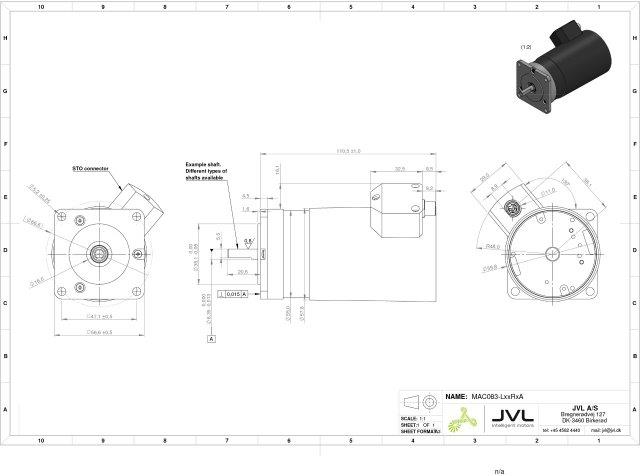

MAC083-L1HRAA

 110.5
83W@24VDC
0.2
 IP42
 Magnetic + Absolute multiturn encoder 8192CPR with STO
MAC083-L1IAAA
 110.5
83W@24VDC
0.2
 IP42
 High accuracy multipole Magnetic encoder 32768CPR

MAC083-L1JAAA
 110.5
83W@24VDC
0.2
 IP42
 High accuracy multipole Magnetic 32768CPR + Absolute multiturn encoder 24 bit

Standard square flange (option A), standard square flange with STO (option R )
Colors: Black (option A), Green (option B), White (option C), Red (option F), thick black (option G), Orange (option H)


MAC050 - 141 Connection guide




Accessories:
Brake - Front
Stainless steel
 Gear
 Expansion modules
 Junction box
MAB23..
 MAC201-L3..
MAC00-xx
 WI1302-2AM17T01NMB




see assembly order codes here
see assembly order codes here
 Only generation 2 modules are compatible with MAC140-F
Quick start (items needed to get up and running fast)

Commissioning
Communication software USB to RS232 convert
 USB to RS232 cable
 USB to RS232 convert (isolated)
 IO-Link Gateway
MacTalk
 RS232-USB2.0-1
 RS232-M12-1-5-8
 USB-RS232/485-OPTO











Cables
Power
 Ethernet
 Ethernet daisychain
 I/O
 IO Gateway
WI1000-M12F5TxxN
 WI1046-M12M4TxxTRJ45
 WI1046-M12M4TM4TxxT
 WI1009-M12M17TxxN
 PA0190 (only for MAC00-Ex41 modules)



xx: available options are 05 and 20 (meter)
 xx: available options are 05 and 20 (meter)
 xx: available options are 05 and 20 (meter)
 xx: available options are 05 and 20 (meter)
 Required: RS232-M12-1-5-8

Power supply
CVI/P+
 P+


Switch Mode power supply
 Switch Mode power supply







120-480W
 ~1000W
