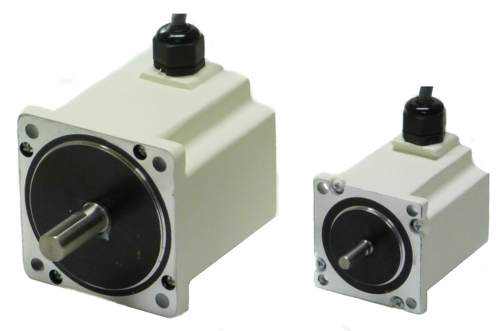

NEMA 23/24/34 Stepper Motors with IP67 Protection


A series of step motors with IP67 protection have been designed by JVL for use with the entire range of JVL Step Motor Drivers and Controllers. Torque from 0,5Nm to 8,2Nm. Even shaft sealing can be IP67 for harsh industrial operation.

  • Special IP67 sealing at rear end and between stator and flanges
  • Special Teflon IP67 shaft sealing
  • Cost-Effective in harsh wet environment
  • Ideal for food processing, pharmaceutical and chemical industries
  • A double shaft seal and leak-proof cable entry provide watertight sealing
  • The material of shaft is stainless steel SUS303/EN 1.4305/AISI303
  • 2 phase motor. 200 step/rev.
  • High torque-to-inertia for faster start and stop
  • Rugged design and long life bearings
  • High power, cooler running, rare-earth magnet design
  • Exposed-lamination housing, optimized for high torque and smooth, accurate microstepping
  • NEMA23 (57x57mm), NEMA26(60x60mm) and NEMA34 (86x86mm) mounting
  • Very short length and very high torque/mm3
  • High axial and radial shaft load
  • Cost-effective alternative to servo motors
  • All motors are D-shaped



Stepper Motors with IP65 or IP67 Protection
Stepper Motors with IP65 or IP67 Protection
Stepper Motors with IP65 or IP67 Protection
Stepper Motors with IP65 or IP67 Protection
 A series of step motors with IP65 or IP67 protection have been designed by JVL


Optional on request:
  • IP65 or no shaft sealing for low cost OEM project
  • M12 high current or M16 connector for OEM
  • Facilities for encoders and different shaft types, etc.
  • Stainless steel endbell and flange
  • Thick protective layer of epoxy surface treatment bonded to the motor body
  • Build in driver or controller.

Motor Type Flange Size Current
[A]
Torque
[Nm] (oz-in)
Length
[mm]
(inch)
Shaft
[mm]
(inch)
Weight
[Kg] (lb)
MSW231A254W1AA3.0

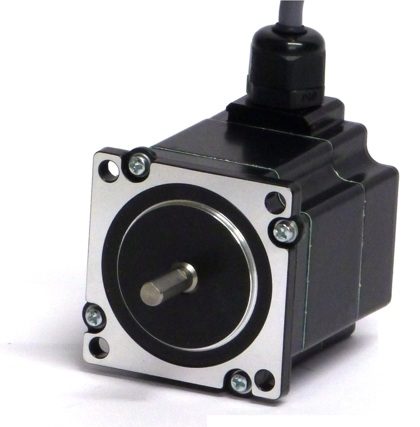

57x57mm NEMA23
3
1.1
(155.773)
70
(2.756)
6.35 (0.25)
0.9
(1.984)
MSW233A254W1AA3.0
57x57mm NEMA23
3
2.0
(283.224)
90
(3.543)
6.35 (0.25)
1.15
(2.535)
MSW241B234W1AA4.0

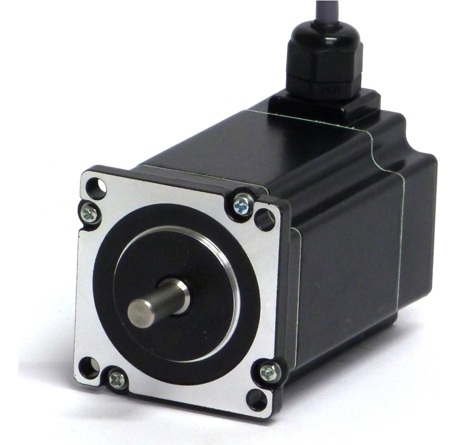

60x60mm NEMA24
4
1.3
(184.096)
70
(2.755)
8
(0.314)
1.0
(2.204)
MSW242B234W1AA5.0
60x60mm NEMA24
5
3.0
(424.836)
100
(3.937)
8
(0.314)
1.38 (3.042)
MSW341B244W1AA6.0

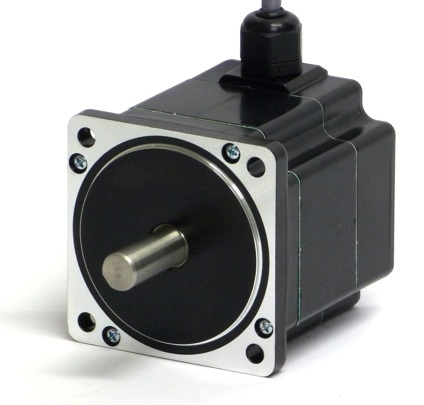

86x86mm NEMA34
6
5.0
(708.059)
90
(3.543)
14 (0.551)
2.5
(5.511)
MSW342B244W1AA6.0
86x86mm NEMA34
6
9.2
(1302.829)
130
(5.118)
14 (0.551)
5.0
(11.023)

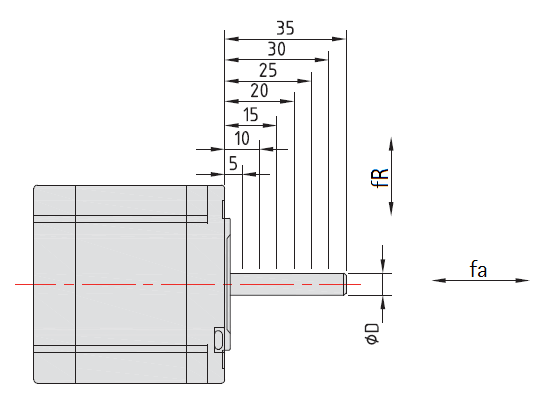

Radial maximum load


fR [mm]
Distance from motor end
Axial maximum load
5.0
10.0
15.0
20.0
25.0
30.0
35.0
fa
øD
Bearing
Size 17
50N
35N
25N
20N
-
-
-
6N
5.0mm
625zz
Size 23
130N
90N
68N
55N
-
-
-
12N
8.0mm
608zz
Size 24
200N
135N
100N
82N
58N
-
-
18N
10.0mm
6000zz
Size 34
620N
550N
480N
390N
340N
290N
260N
50N
14.0mm
6202zz

Pulse and direction driver Programable controller
SMD73 (0-3 Amp, 12-24 VCD) SMC75 (0-3 Amp, 12-48 VDC)
SMD74 (0-3 Amp, 12-48 VDC) SMC85 (0-9 Amp, 12-80 VDC)
SMD41 (0-9 Amp, 12-80 VDC)
