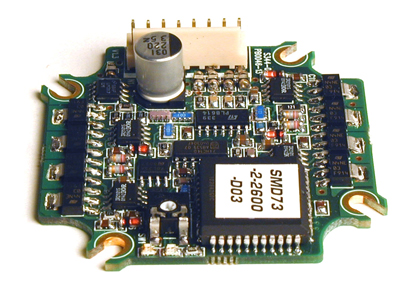

Stepper Motor Driver SMD73


Driver for motor mounting
Step Motor Driver SMD73 is a miniature driver that measures only 52.4x52.4 mm and is ideal for direct mounting onto a step motor. It fits onto most types of high-torque motors, but of course can also be mounted on a surface.
  • OEM low-price driver for Step Motors Dimensions only 52.4x52.4x14mm
  • Power Supply from 18-28VDC
  • LED indicators for error and power on
  • Operates in half-step mode,
  • 400steps/rev. 200, 800 or 1600 steps/rev. to order
  • 3.0 A per phase, other values to order
  • NPN/PNP inputs available to order
  • Can be mounted on a surface or directly on NEMA23/34 High Torque motors
  • Motor control via step-pulse and direction signals
  • Can handle up to 50ksteps/sec.
  • Also available as DC driver, up to 4A RMS
  • Protected against thermal overload, current overload, short-circuit
