MAC802, MAC1202, MAC1403 Low DC voltage 12-60VDC supplied Integrated Servomotor with built in Ethernet Interface


Unmatched performance with our new servomotor range, delivering rated power from 750 W to 1500 W and peak power up to 4500 W on a 48VDC supply. Designed for versatility, it supports 1.2 kW and 3.6 kW output on a 24VDC supply, making it ideal for demanding industrial battery applications.

JVL is proud to announce a completely new generation of 24 to 48 DC power supplied integrated servo motors. These new motors are based on completely new software and hardware design and customer feedback collected for many years and offer a wide pallet of options and possibilities which makes this product fit into almost any application.

Key features:
  • More compact design than previous servomotor
  • No need of module. Lower cost
  • Industrial Ethernet - 6 protocols
  • Absolute multiturn encoder unlimited down time (no battery)
  • Safe Torque Off (STO) input
  • Supply 24 to 48 VDC
  • Very energy efficient
  • 0 – 3000 RPM . Max 3600 RPM
  • Standard IP55 or IP66 protection
  • Wide program of interface possibilities
  • M12 and M16 industrial connector for harsh environment
  • Connector compatible with MAC400/800
  • PLC built-in ePLC
  • RS485 interface
  • CE, TÜV and UL certification in progress



Optional:



  • Specification
  • Dimension
  • Connectivity
  • Ethernet
  • Curves
  • Youtube

Part number Length [mm]
 Torque Rated/Peak [Nm]
 Power Rated / Peak [W]
 Duty Cycle [%]
 Voltage [VDC]
IP42 (IP66 version are available, contact JVL for more information)
MAC802M2
 156.5 2.4 / 7.2
 750 / 2250
 100
 24-48
(12-48)
MAC802M5
with Brake
 189.5 2.4 / 7.2
 750 / 2250
 100
 24-48
(12-48)
MAC1202M2 189.5 3.82 / 11.46 1182 / 3546 100
 24-48
(12-48)
MAC1202M5
with Brake
 223.5 3.82 / 11.46 1182 / 3546 100
 24-48
(12-48)
MAC1403M2 199.5 4.78 / 14.34 1500 / 4500 100
 48
(12-48)
MAC1403M5
with Brake
 236.5 4.78 / 14.34 1500 / 4500 100
 48
(12-48)
Encoder type choose between:
G: Incremental Magnetic encoder 8192CPR
H: Incremental Magnetic 8192CPR Magnetic + Absolute multiturn encoder 19bit.
( Under development I and J option Multipole 18 bit incremental)
0-3000 RPM. Max speed 3600 RPM

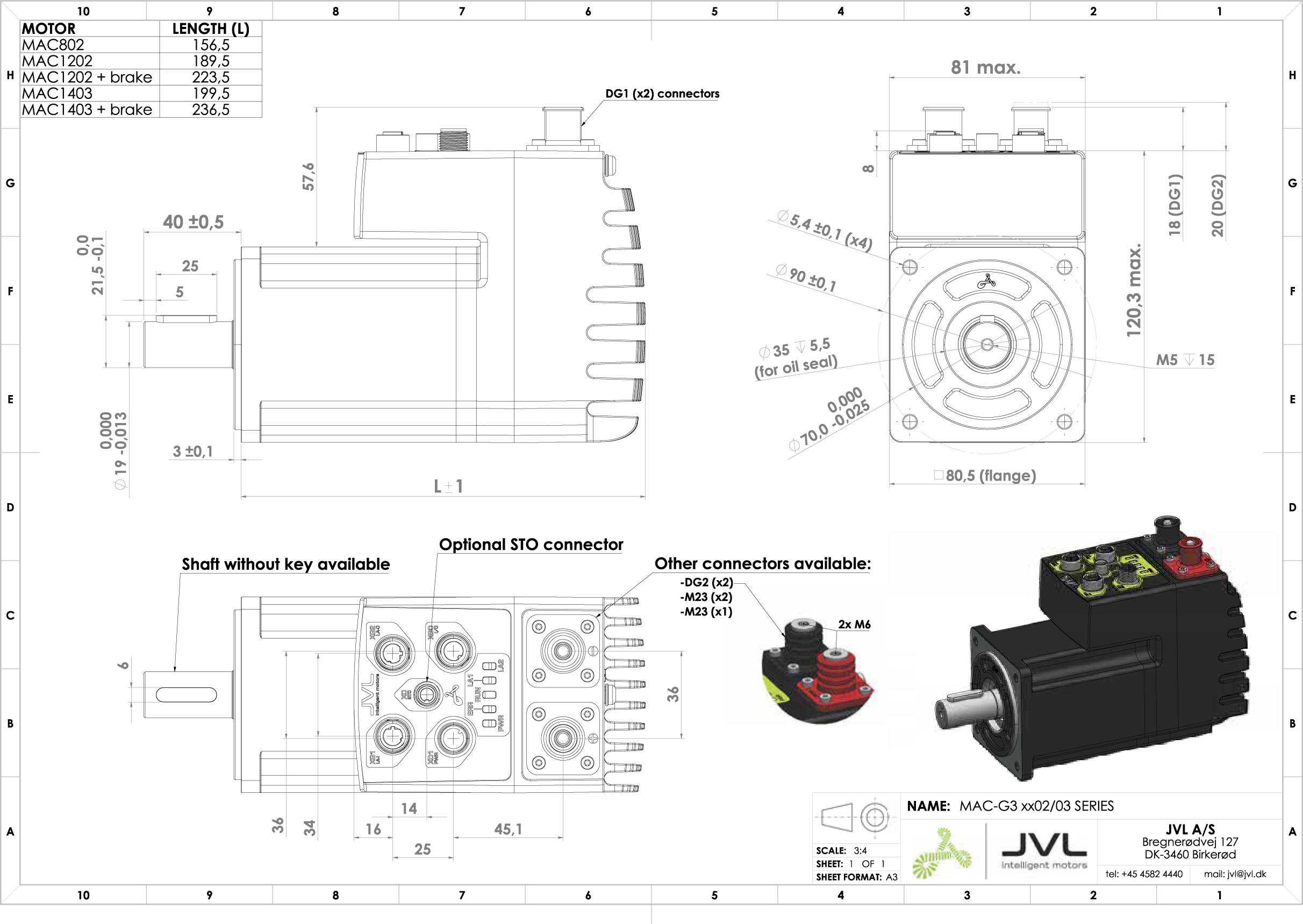

MAC802 - 1403 dimensions







Choose between wireless Bluetooth, WLAN or Industrial Ethernet Profinet, Ethernet/IP, EtherCAT, Powerlink, MODBUS TCP/IP, SERCOS III, RS485 and PLC built-in are standard. 8IOA, SSI and pulse/direction




MAC802 S1

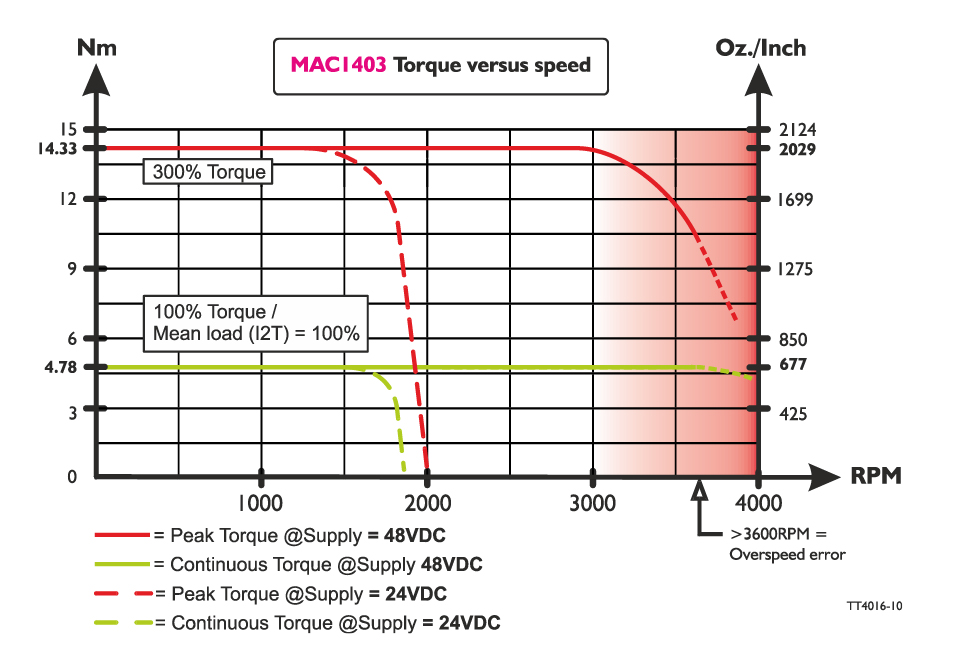

MAC1403 S1










Go to JVL Youtube Channel
JVL Presentation Video
JVL Academy
  • MIS17-43 Connection guide
  • How to connect and test a JVL integrated motor
  • Closed loop linear movement
  • Closed loop rotation torque
  • IO-Link for JVL motors









Connectors:

 M23 6pin Heavy duty connector Ring shoe connector
Power connector
Current [Amp] 60 100 120
Cable


Cable part number WP1101 (1 m) (Motor power) / WP1201 (1 m) (Daisy chain) WP0701-NU-BK (1 m) / WP0801-NU-RD (1 m),
WP0705-NU-BK (5 m) / WP0805-NU-RD (5 m)		 WP0901-MU-BK / WP1001-MU-RD


Accessories:
Built in brake
 Gear
 Junction box
 Test box
IP Protection option: 5 and 6
 HTRG08..P701..
 WI1302-
2AM17T01NMB
 PA0162



see assembly order codes here




Commissioning
Communication software



MacTalk














Cables
CVI Power
 Ethernet
 Ethernet daisychain
 I/O
 USB to RS485 / RS422 / RS232 converter
WI1000-M12F5TxxN
 WI1046-M12M4TxxTRJ45
 WI1046-M12M4TM4TxxT
 WI1009-M12M17TxxN
 RS485-USB-M12M5M8M17



xx: available options are 05 and 20 (meter)
 xx: available options are 05 and 20 (meter)
 xx: available options are 05 and 20 (meter)
 For 17 pin connector
 For 8 Pin connector
