Mounting of gear and brake.
JVL can offer to mount wormgear, planetary gear and robot gear on JVL purchased stepper or servomotor.
Please use below order code for mounting direction of gear compared to motor.
Please use below order code for mounting direction of gear compared to motor.
| Order code |
Description | Gear | Connector/Housing | |

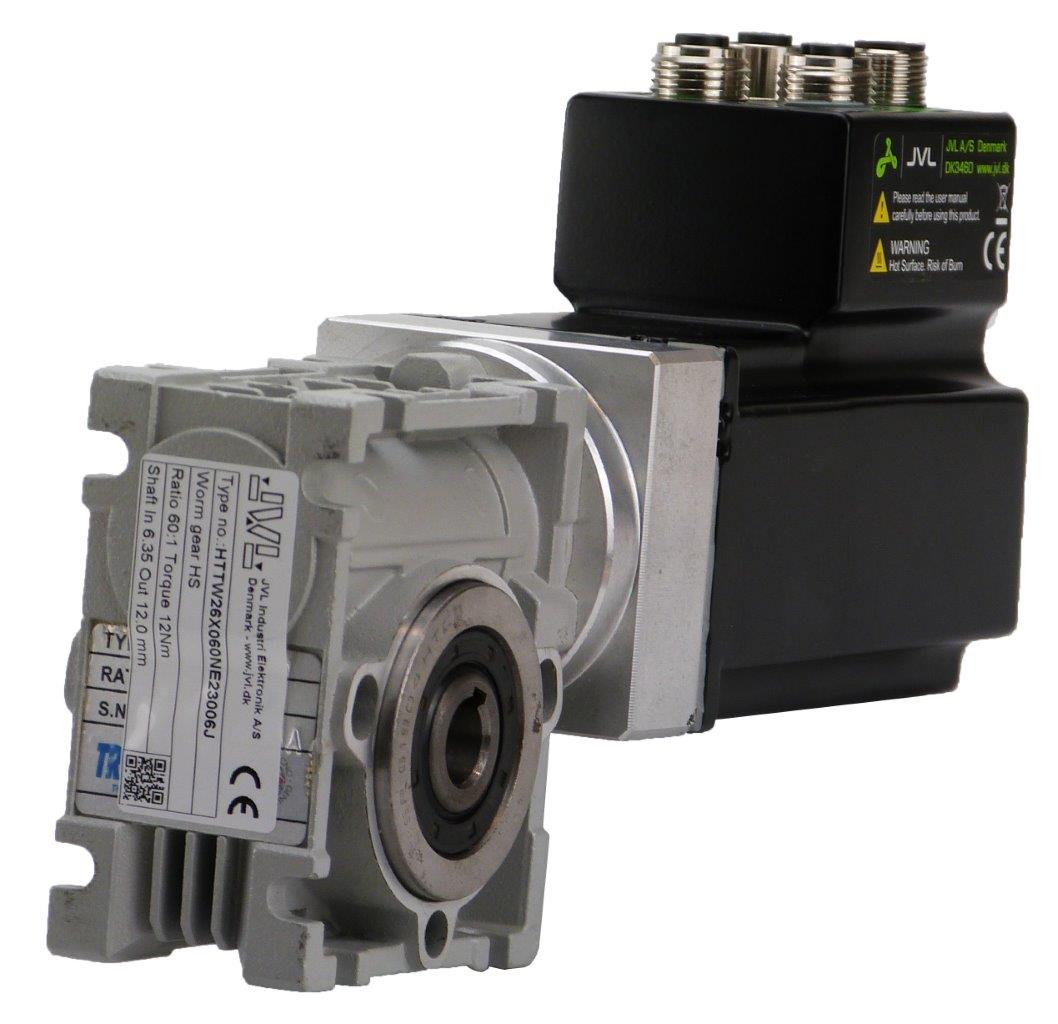

| GEAR_MOND (default) |
Assembly wormgear down. JVL connector up | Down | Up |  |

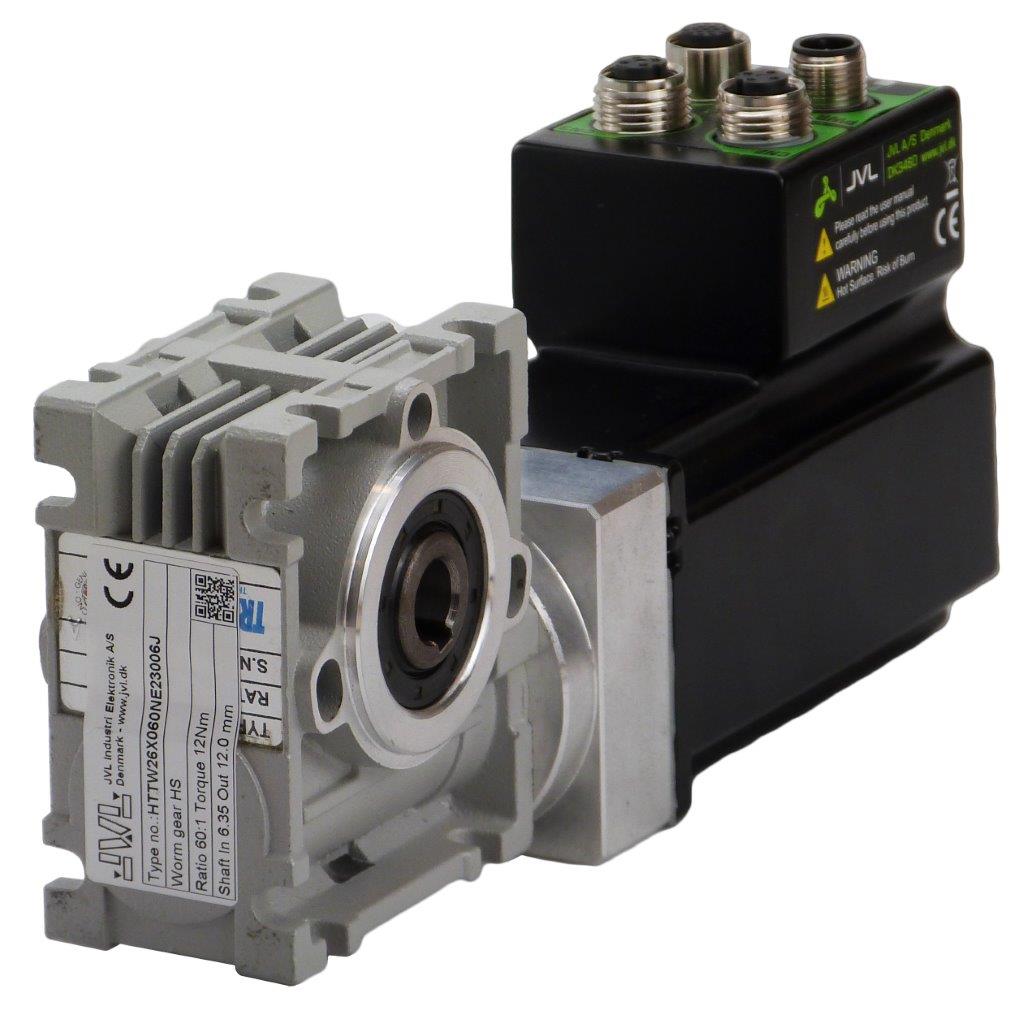

| GEAR_MONU | Assembly wormgear up. JVL connector up | Up | Up |  |

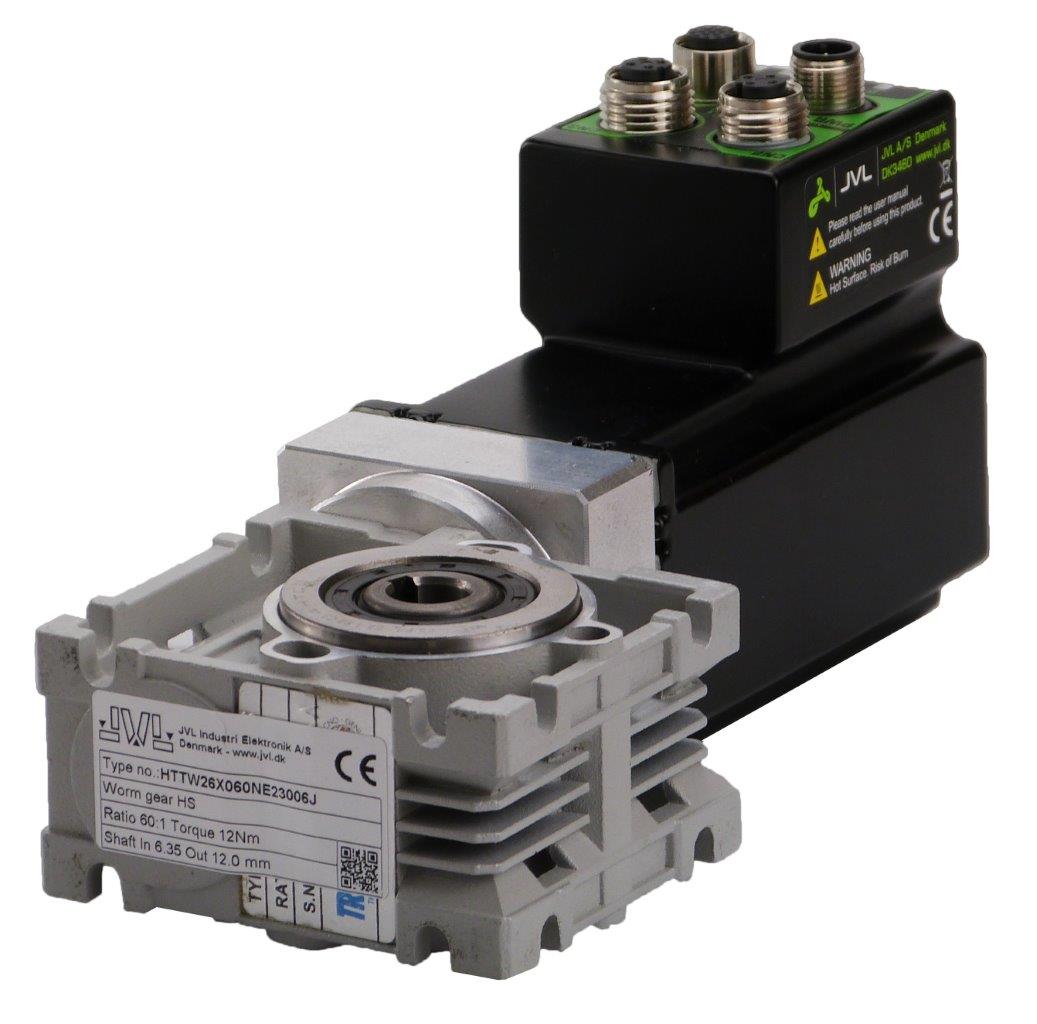

| GEAR_MONL | Assembly wormgear left. JVL connector up | Left | Up |  |

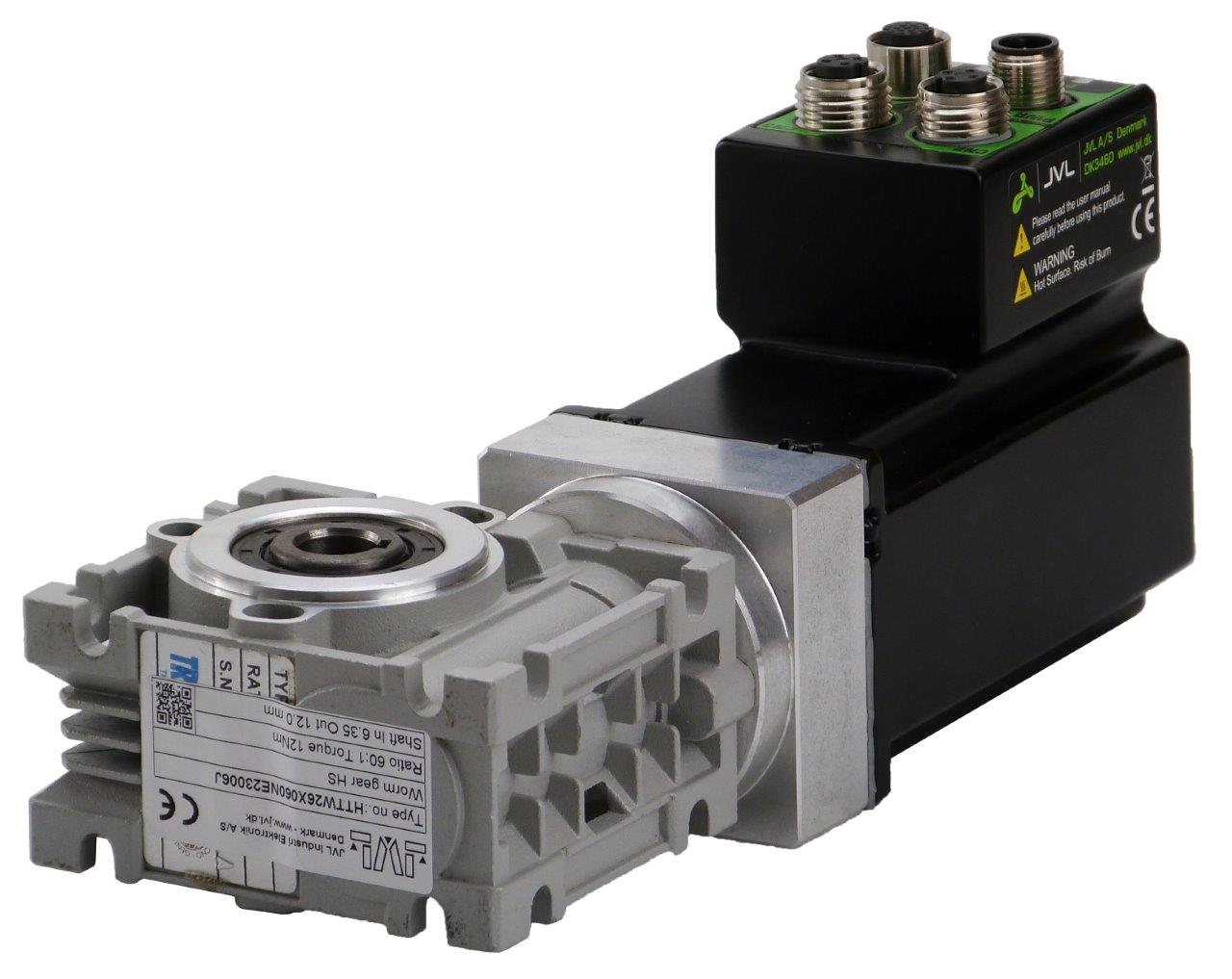

| GEAR_MONR | Assembly wormgear right. JVL connector up | Right | Up |  |

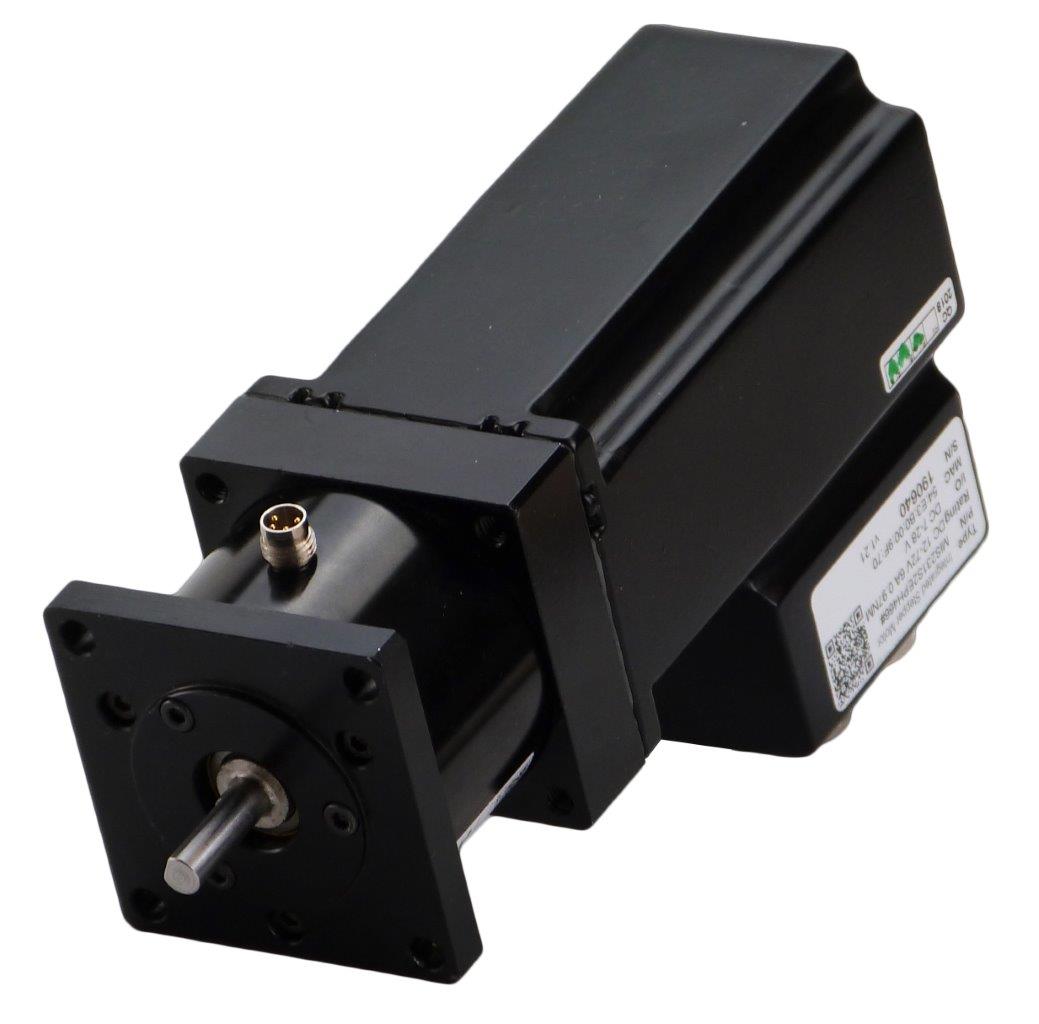

| MAB_ASS_D | Assembly, Motor connector up and brake down | Down | Up |  |

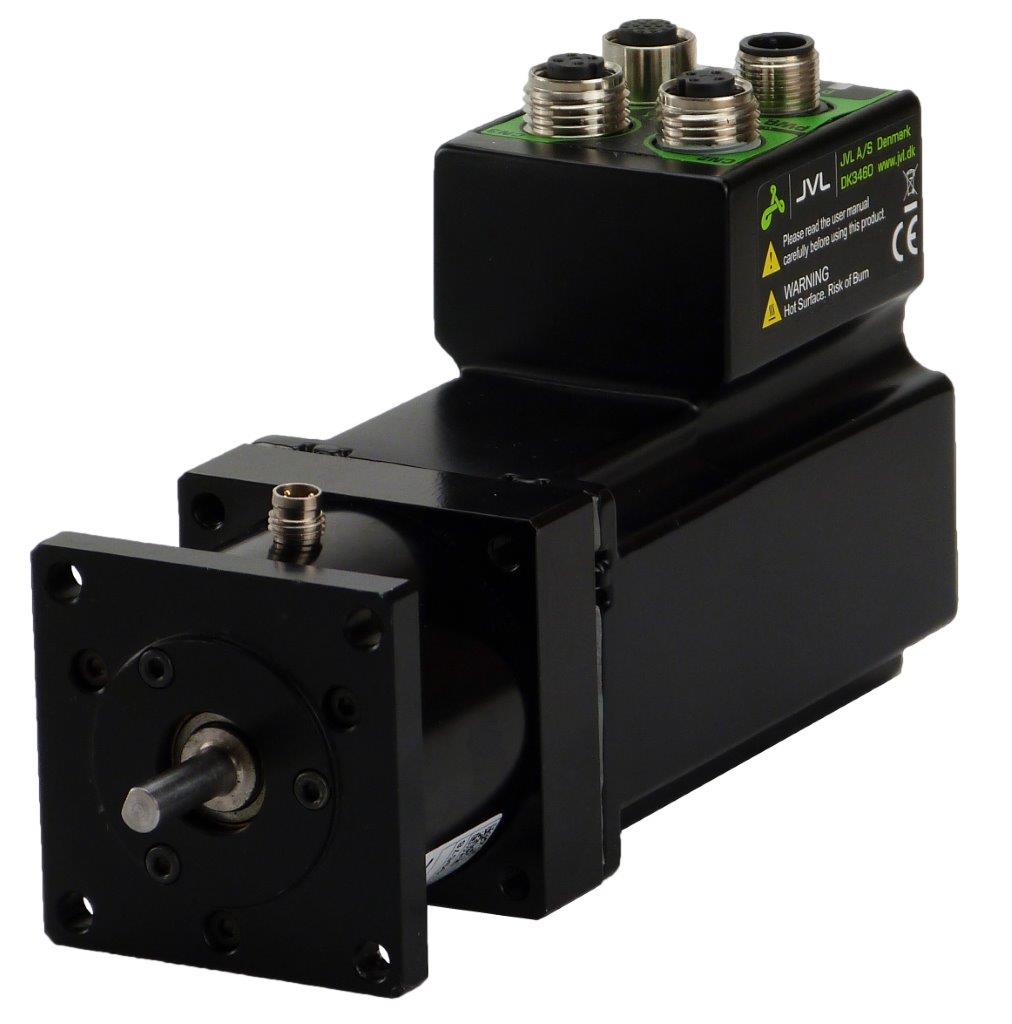

| MAB_ASS_U | Assembly, Motor connector up and brake up | Up | Up |  |

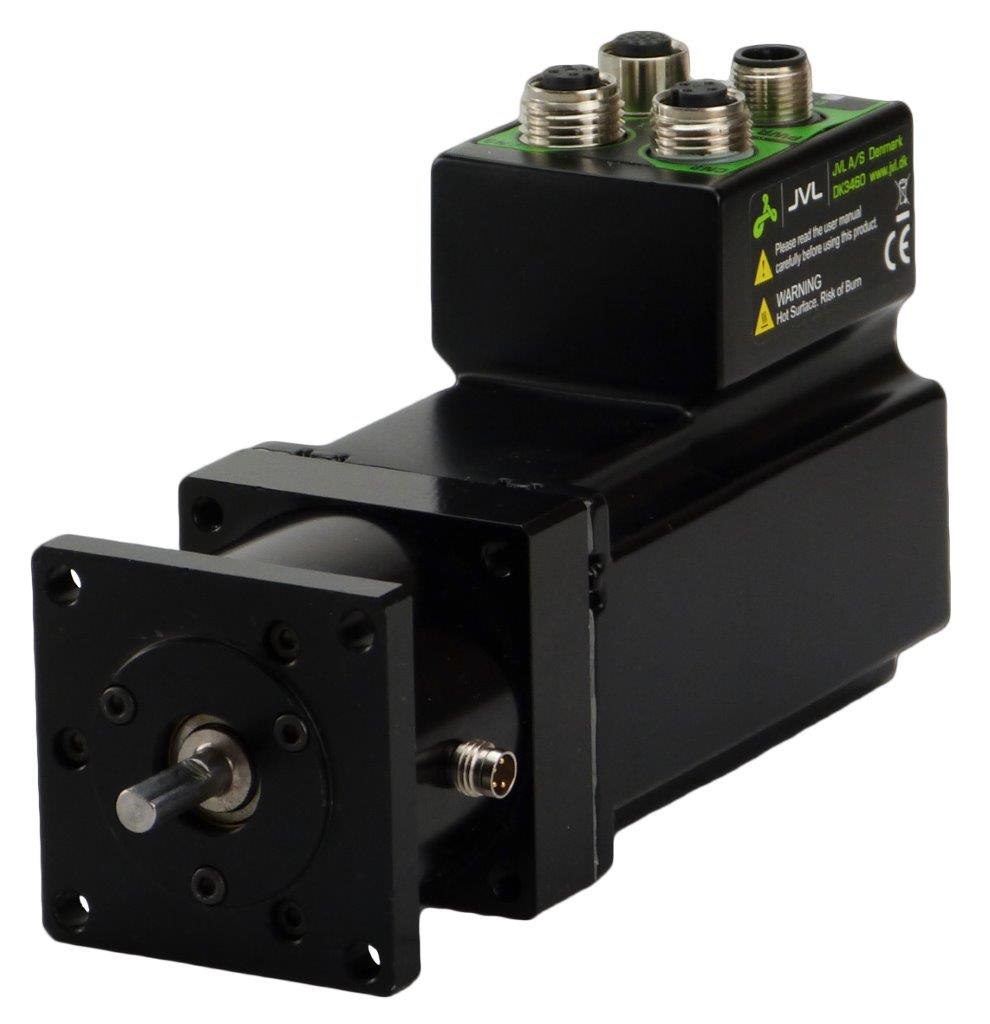

| MAB_ASS_L | Assembly, Motor connector up and brake left | Left | Up |  |

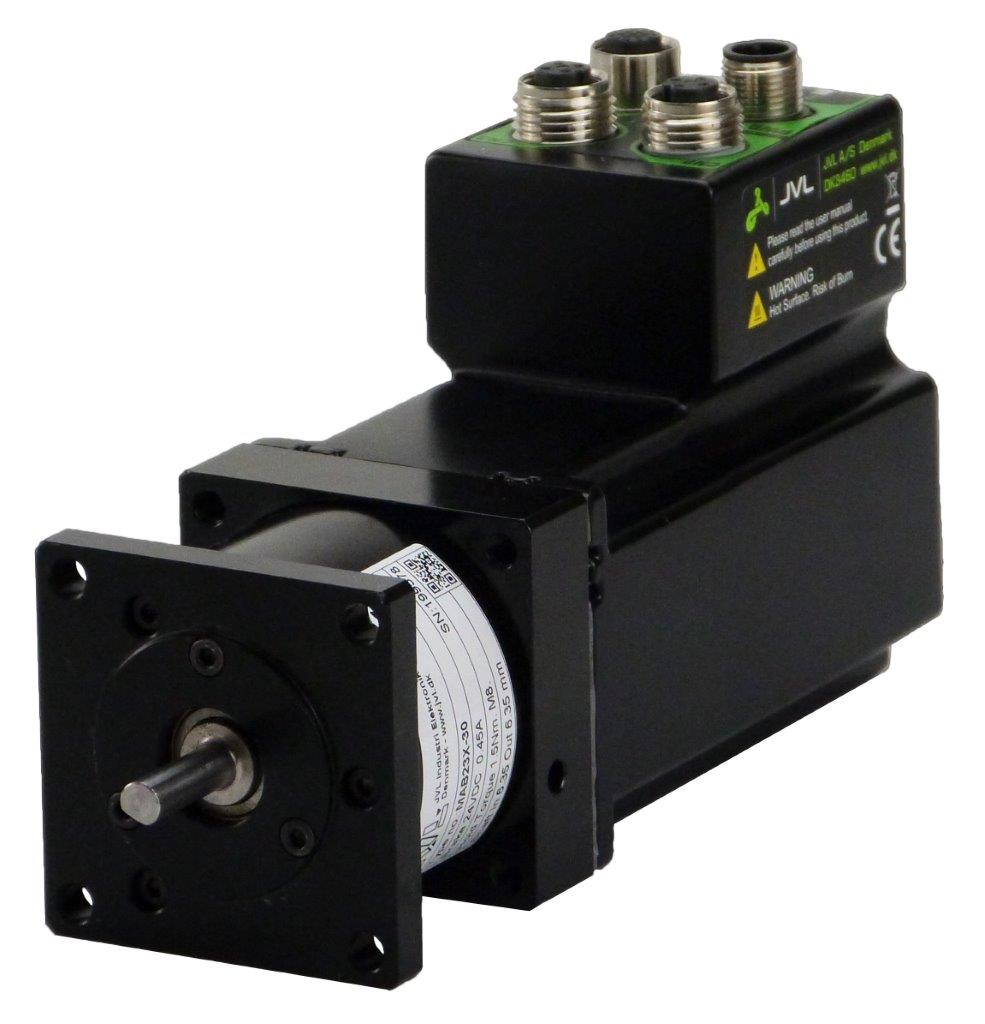

| MAB_ASS_R | Assembly, Motor connector up and brake right | Right | Up |  |

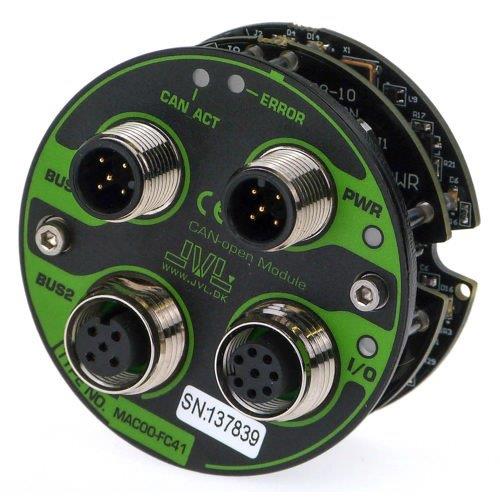

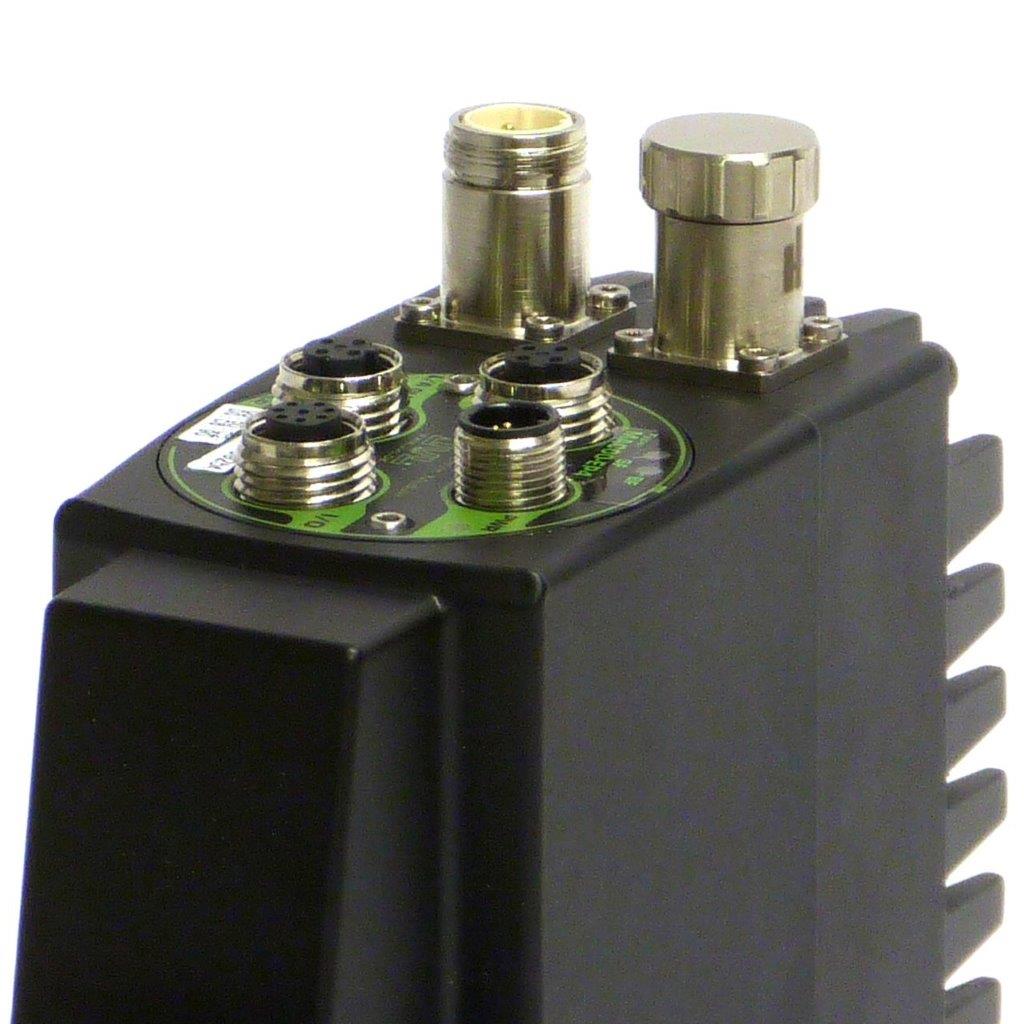

| MAC_ASSEMBLY | Assembly, MAC Modules in MAC140 to MAC4500 |
  |
||
