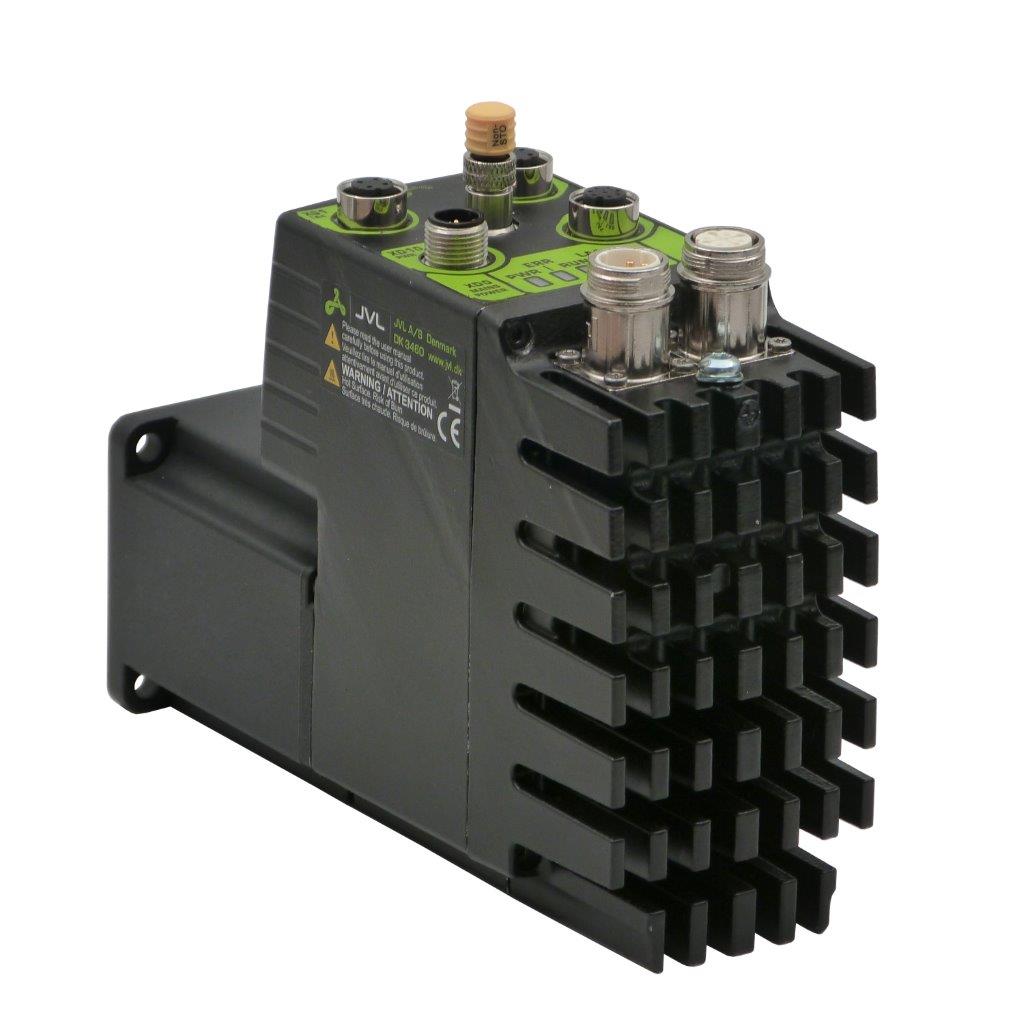

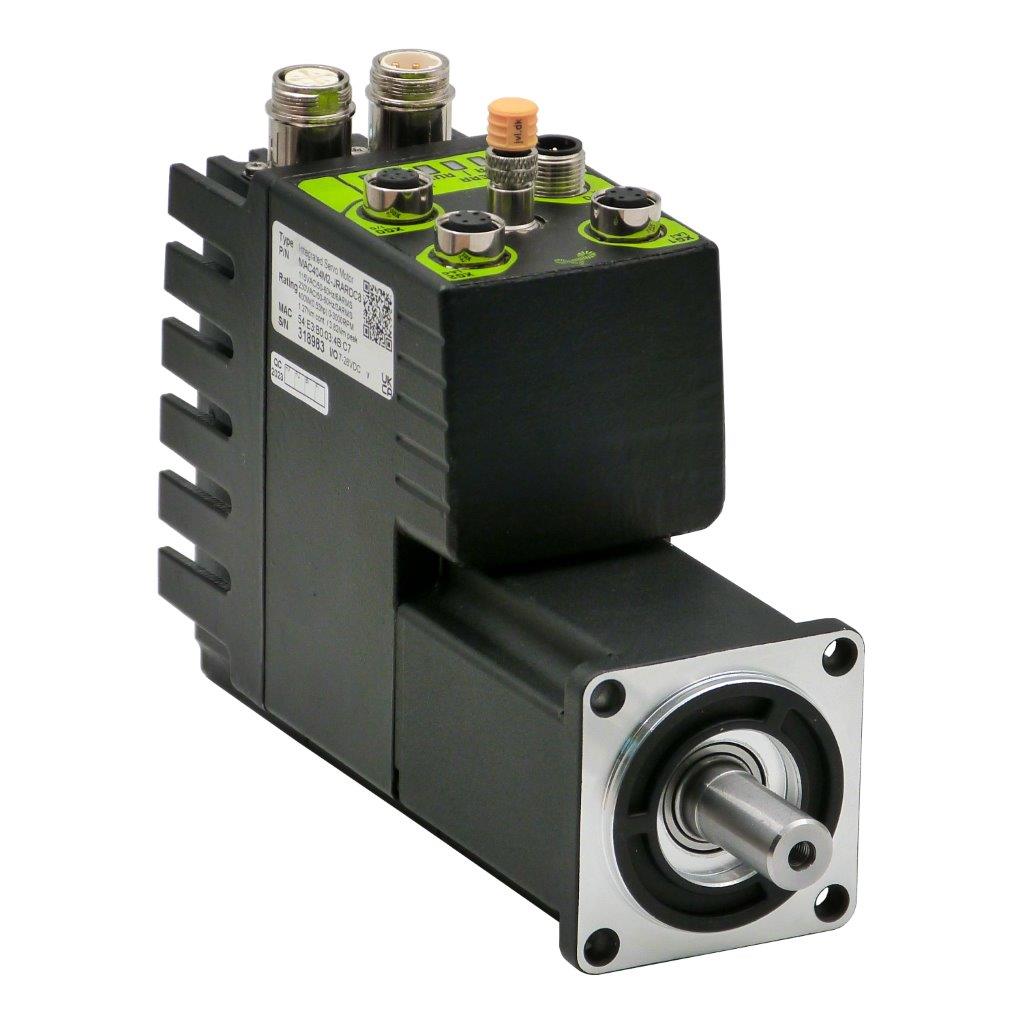

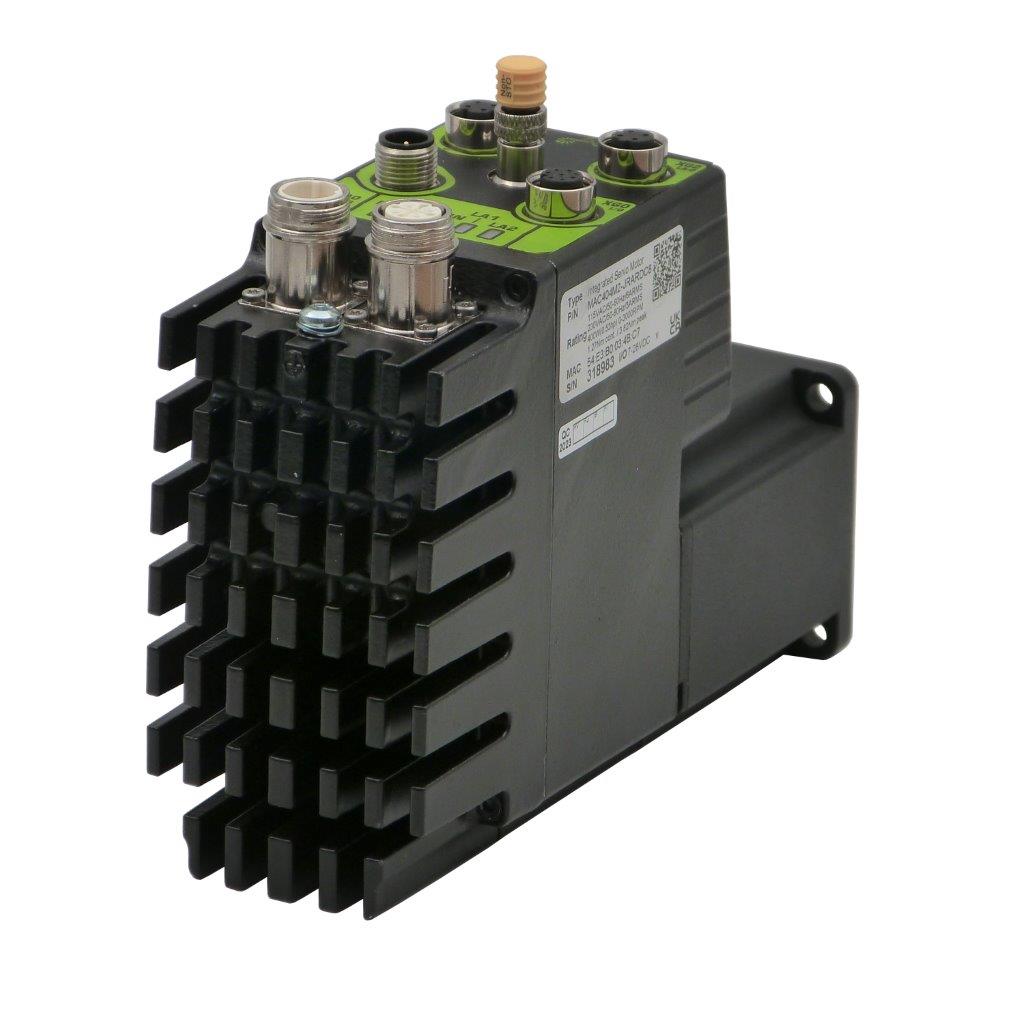

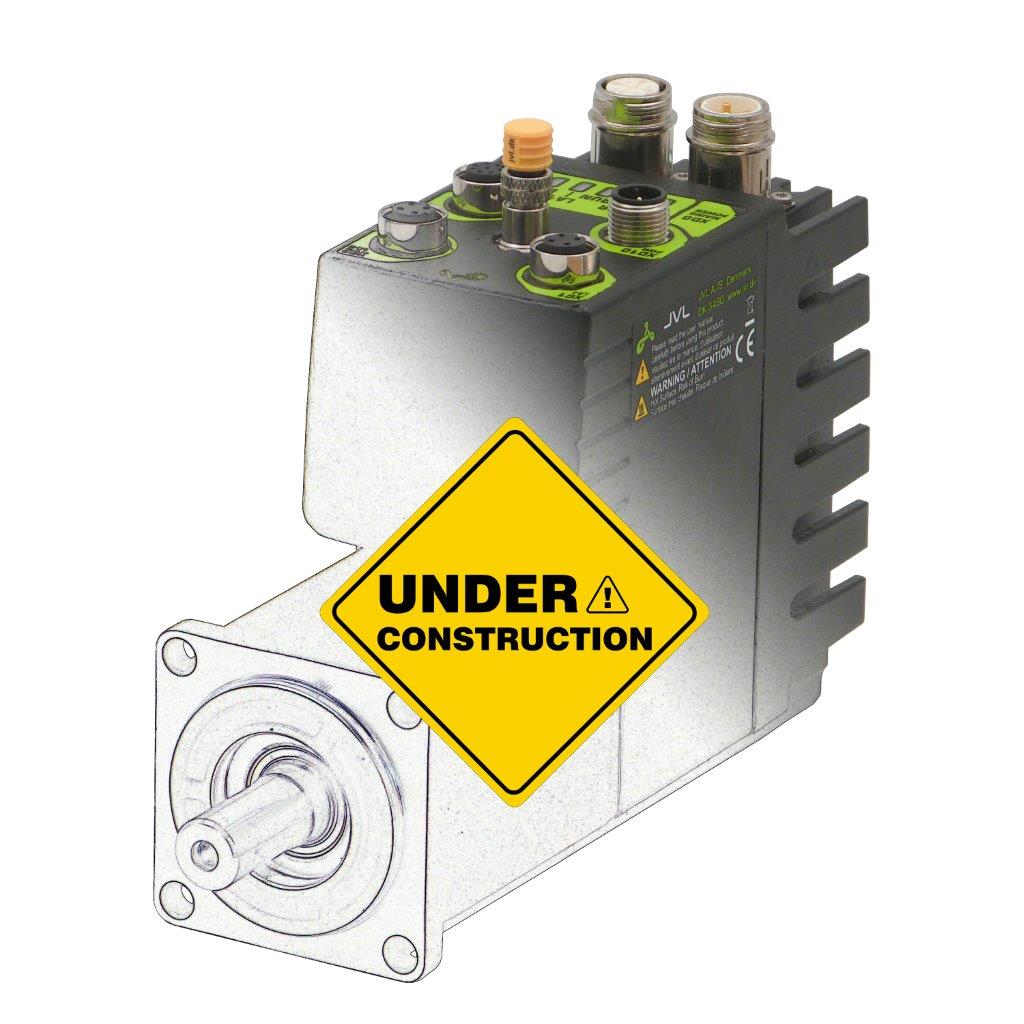

MAC404 Integrated Servomotor with built in Ethernet Interface


New servomotor with 400 W power and 1.2 kW peak with built in driver/controller and new harvesting encoder with unlimited down time, no battery required and as standard industrial Ethernet interface.

JVL is proud to announce a completely new generation of 115 to 230 VAC power supplied integrated servomotors up to 400 W in motor size 63x63 mm. These new motors are based on completely new software and hardware design and customer feedback collected for many years and offers a wide pallet of options and possibilities which makes this product fit into almost any application.

Key features:
  • More compact design than previously servomotor
  • No need of module. Lower cost
  • Industrial Ethernet - 6 protocols
  • Absolute multiturn encoder unlimited down time (no battery)
  • Safe Torque Off (STO) input
  • Supply 115 to 230 VAC and optional 48 VDC
  • Very energy efficient
  • 0 – 3000 RPM . Max 3600 RPM
  • Standard IP55 or IP66 protection
  • Wide program of interface possibilities
  • M12 and M16 industrial connector for harsh environment
  • Connector compatible with MAC400/800
  • PLC built-in ePLC
  • RS485 interface
  • CE, TÜV and UL certification in progress







Optional:



  • Specification
  • Dimension
  • Connectivity
  • Ethernet
  • Curves
  • Youtube

Part number Length [mm]
 Torque Rated/Peak [Nm]
 Power Rated / Peak [W]
 Duty Cycle [%]
IP42
MAC404M2
 170.0
 1.27 / 3.83
 400 / 1200 100
MAC404M5
with Brake
 203.0
 1.27 / 3.83
 400 / 1200 100
IP66
MAC404M3
 170.0 1.27 / 3.83
 400 / 1200 100
MAC404M6
with Brake
 203.0
 1.27 / 3.83
 400 / 1200 100
Encoder type choose between G: Incremental Magnetic encoder 8192CPR and H: Incremental Magnetic 8192CPR Magnetic + Absolute multiturn encoder 19bit . ( Under development I and J option Multipole 18 bit incremental )
0-3000 RPM. Max speed 3600 RPM

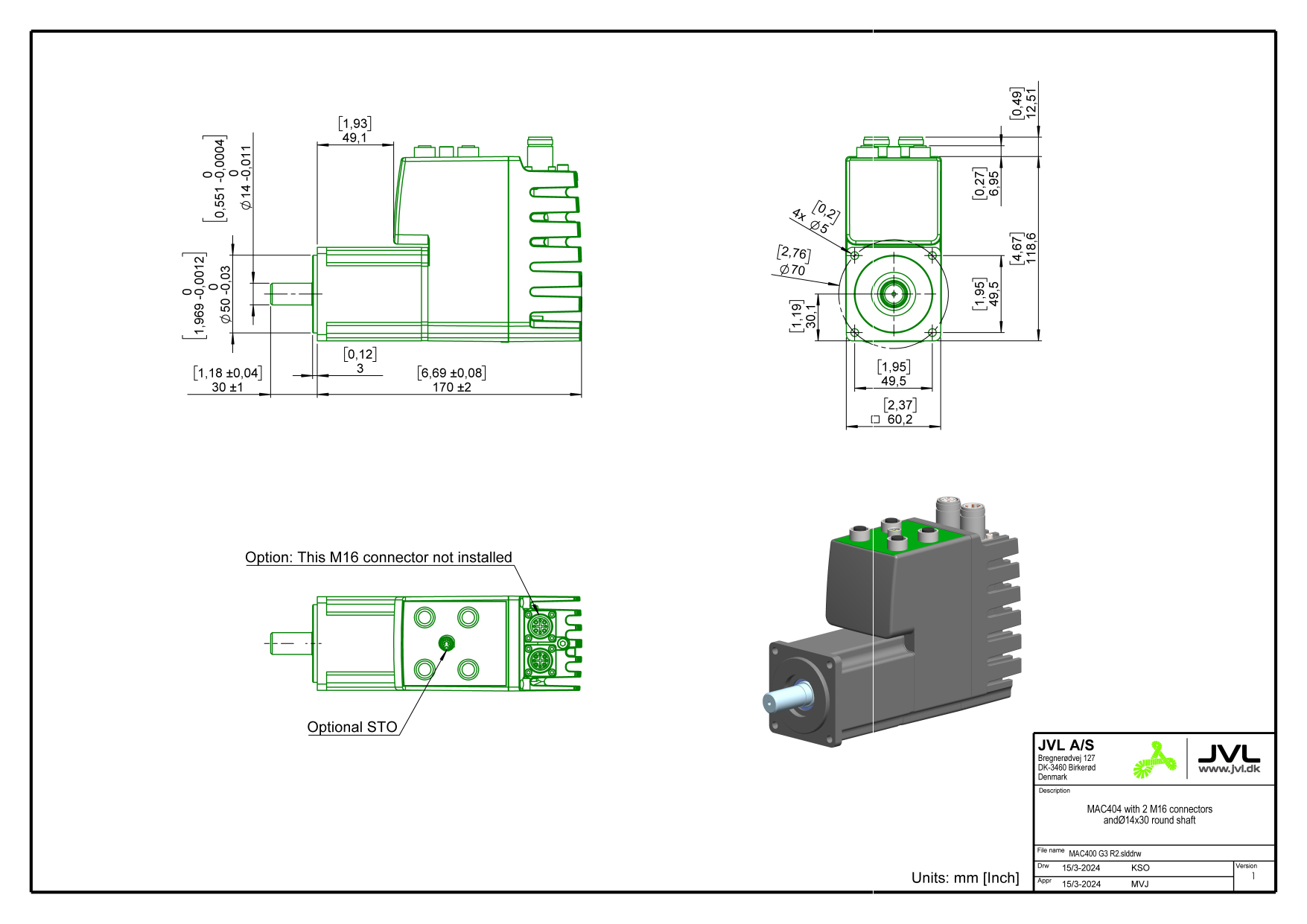

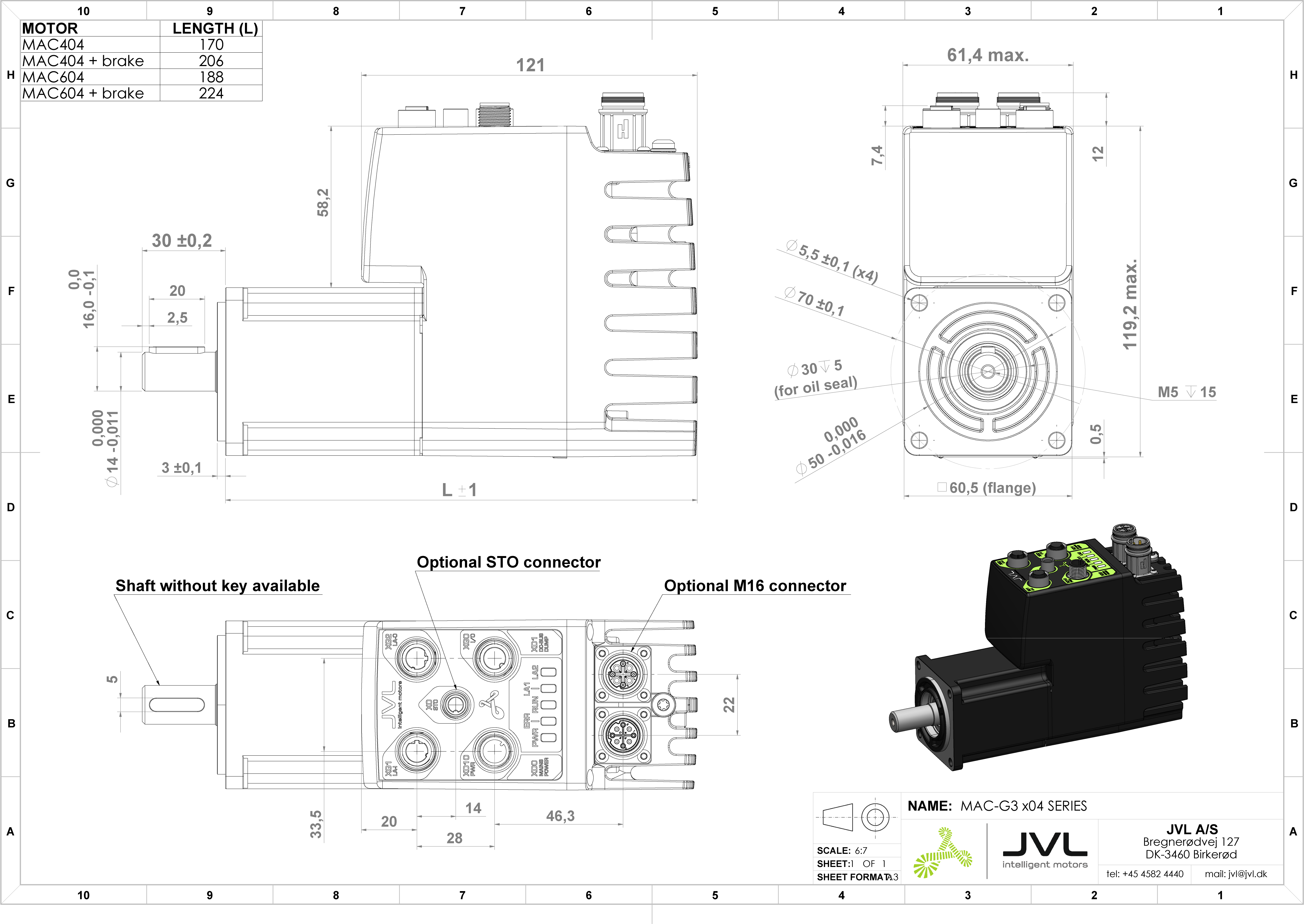

MAC404 without brake dimensions




MAC404 with brake dimensions

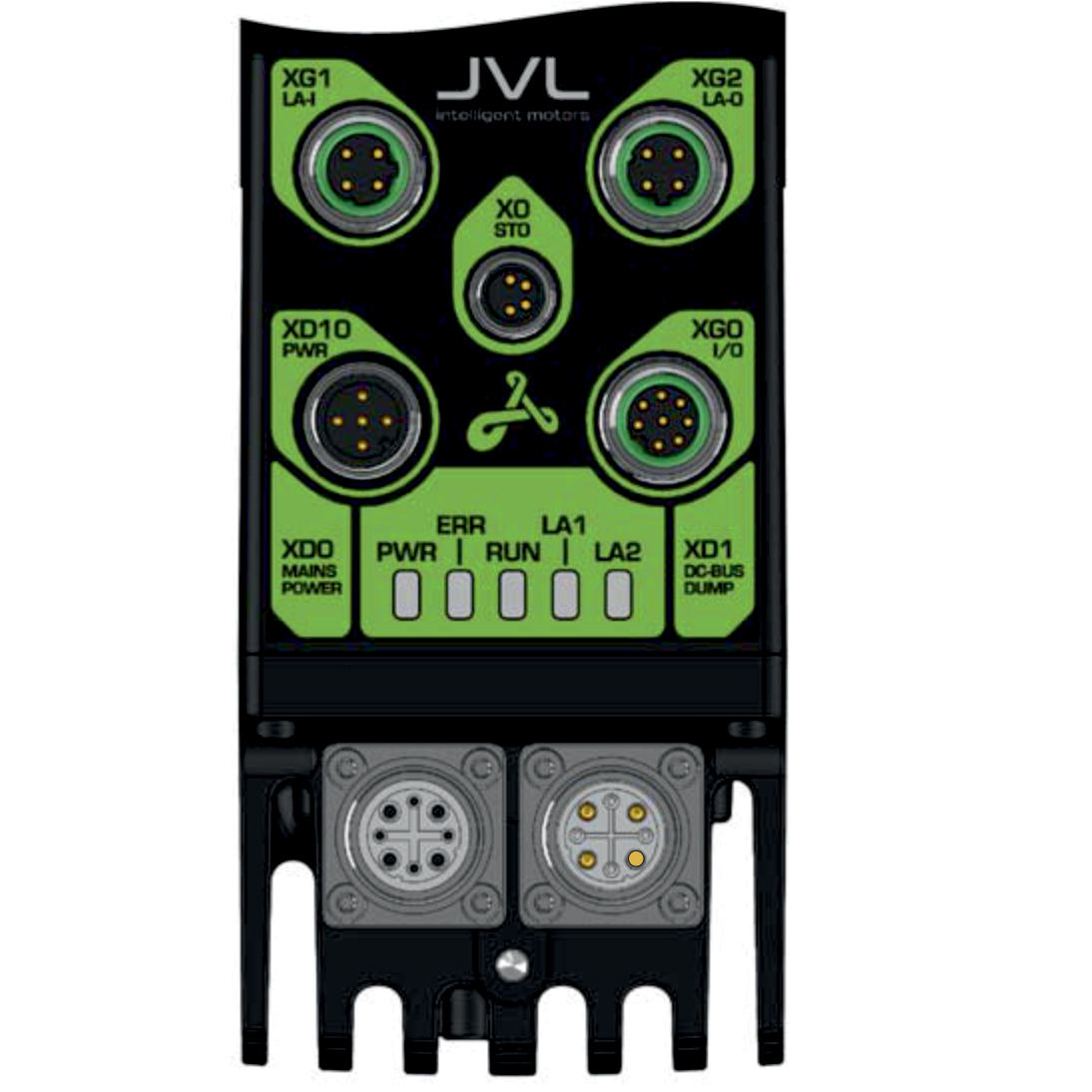

Choose between wireless Bluetooth, WLAN or Industrial Ethernet Profinet, Ethernet/IP, EtherCAT, Powerlink, MODBUS TCP/IP, SERCOS III, RS485 and PLC built-in are standard. 8IOA, SSI and pulse/direction

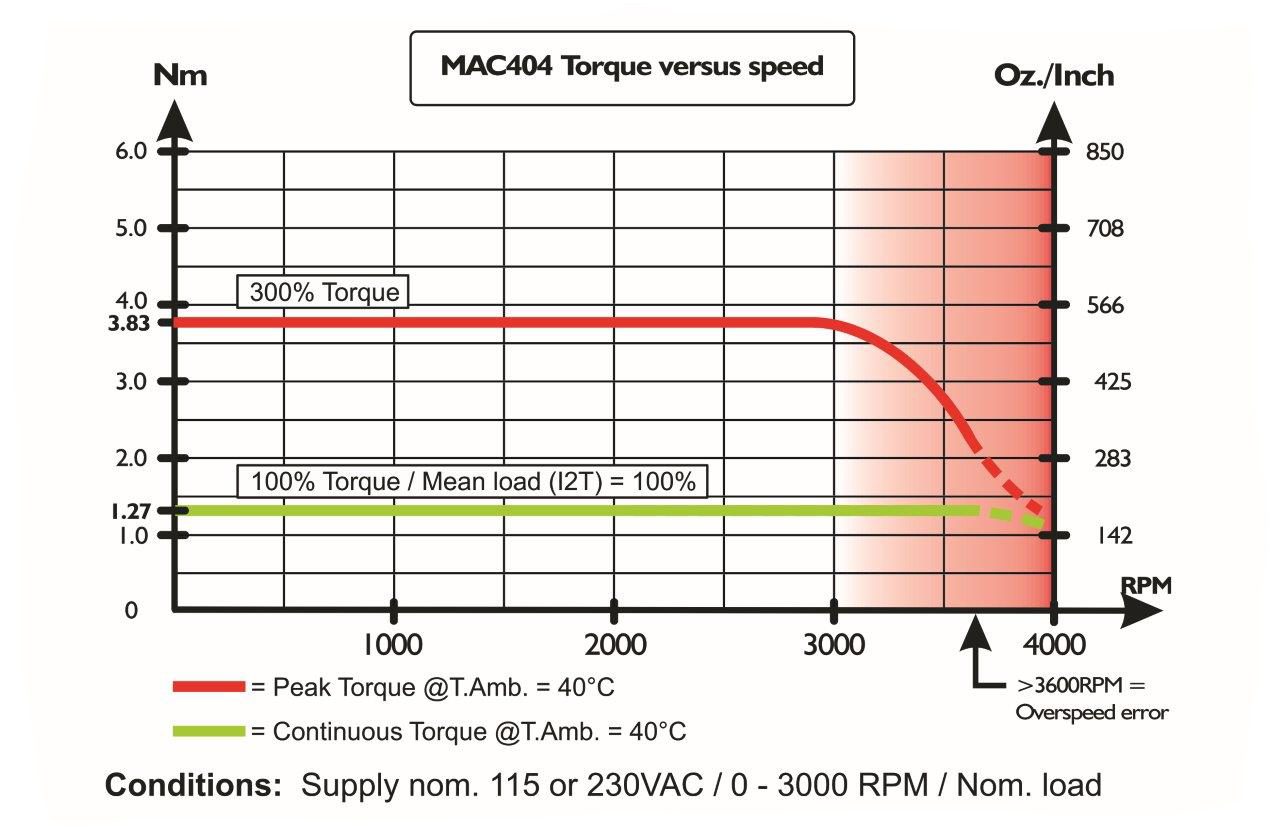

MAC404 100% duty cycle

(download)

Go to JVL Youtube Channel
JVL Presentation Video
JVL Academy
  • MIS17-43 Connection guide
  • How to connect and test a JVL integrated motor
  • Closed loop linear movement
  • Closed loop rotation torque
  • IO-Link for JVL motors














Accessories:
Built in brake
 Gear
 Junction box
 Test box
IP Protection option: 5 and 6
 HTRG..050114M..
 WI1302-
2AM17T01NMB
 PA0162



see assembly order codes here




Commissioning
Communication software USB to RS485 / RS422 / RS232 converter


MacTalk

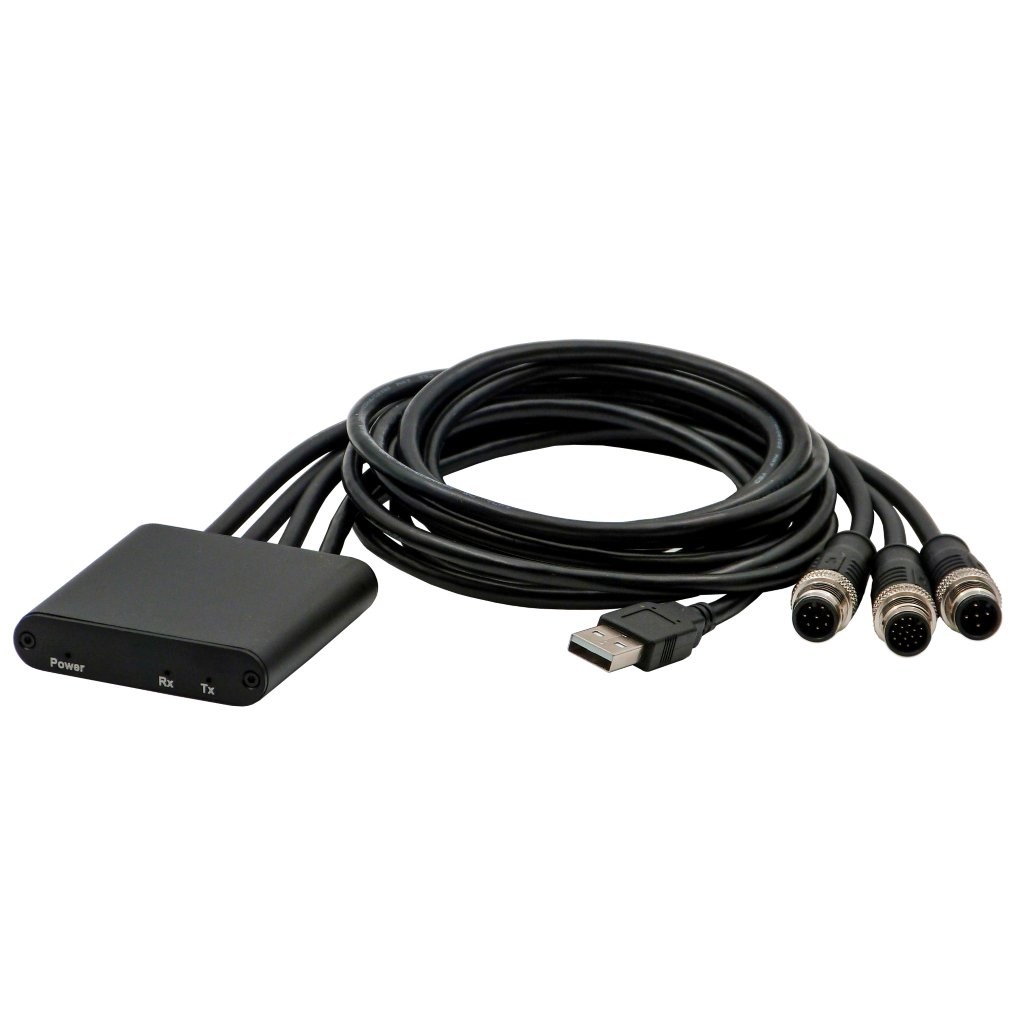

 RS485-USB-M12M5M8M17







USB to M12 5 pin / 8 pin / 17 pin male



Cables
Power
 Ethernet
 Ethernet daisychain
 I/O
WI1000-M12F5TxxN
 WI1046-M12M4TxxTRJ45
 WI1046-M12M4TM4TxxT
 WI1009-M12M17TxxN




xx: available options are 05 and 20 (meter)
 xx: available options are 05 and 20 (meter)
 xx: available options are 05 and 20 (meter)
 For 17 pin connector

Power supply
Switch Mode Power Supply [P+]
 Power cable for M16 connector
 Power Dump cable for M16 connector

PSU024- 0120S1X2AAD1A
 WP0402 WP0102





2 meter default, other lengths are available
 2 meter default, other lengths are available
