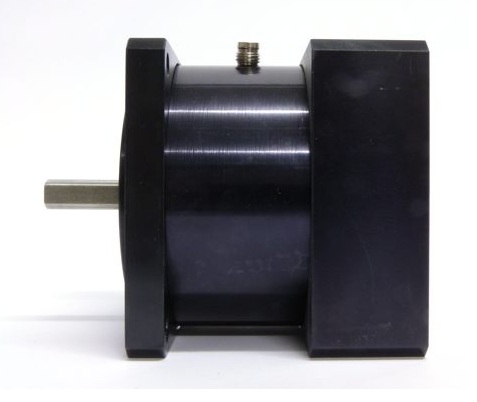

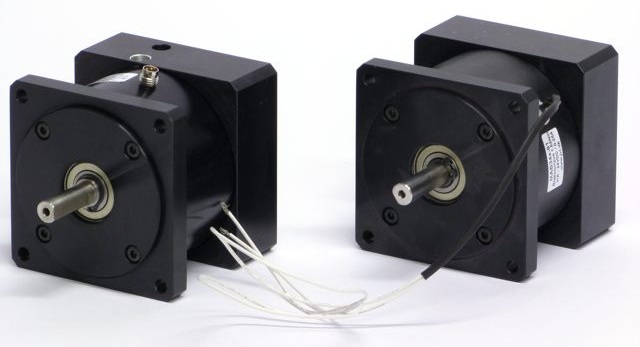

NEMA34 86mm Electronic Motor Brake MAB34x


Electronic brake for all NEMA34 motors
The electronic brake is designed to be mounted on step- and servo motors, such as the MIS340,MIS341,MIS342 series of integrated stepper motors and MST340, MST341,MST342 series of stepper motors without build in controller.
A high quality electro-magnetic brake is mounted inside the housing. The brake has zero backlash and no auditory noise.
It fits on all step- and servo motors with NEMA3486x86mm flange and optional 9.35mm and 14mm shaft.
The brake is used when it is desired to hold the motor shaft fixed at power off, or when the motor is used in a vertical linear application.
When 24 VDC is connected, the brake will be deactivated and the motor can turn freely. It is recommended to use the brake only as a holding brake and not as an emergency brake.




Recommended torque clamping Screw 3.4 Nm (2,5077 pound-force foot [lbf*ft]), Only for MAB34.


Holding
Torque
[Nm]
(Oz-In)
Input Shaft
Ø
[mm]
(inch)
Output Shaft
Ø
[mm]
(inch)
Connection IP
Current@24VDC
[Amp]
Weight
ex. cable
[kg] (lb.)
Lenght
[mm]
(inch)

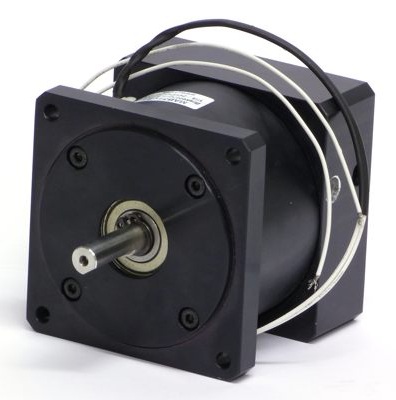

MAB34X-91 1.7
(240.740)
9.53
(0.375)
9.53
(0.375)
Wire 470mm IP44
0.23 Amp
1.35
(2.98)
Max 78
(3.070)

MAB34X-92 1.7
(240.740)
9.53
(0.375)
9.53
(0.375)
M8 IP55
0.23 Amp
1.35
(2.98)
Max 78
(3.070)

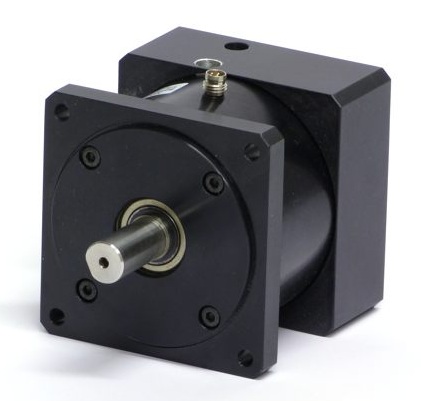

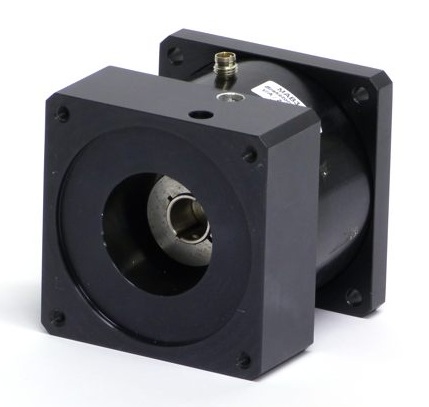

MAB34X-93 1.7
(240.740)
14
(0.551)
14
(0.551)
M8 IP55
0.23 Amp
1.42
(3.13 )
Max 82
(3.228)

MAB34X-94 1.7
(240.740)
12.7
(0.5)
12.7
(0.5)
M8 IP55
0.23 Amp
1.42
(3.13 )
Max 82
(3.228)

Cable for MAB34 (except MAB34x-91) WI1000-M8F4A05N.

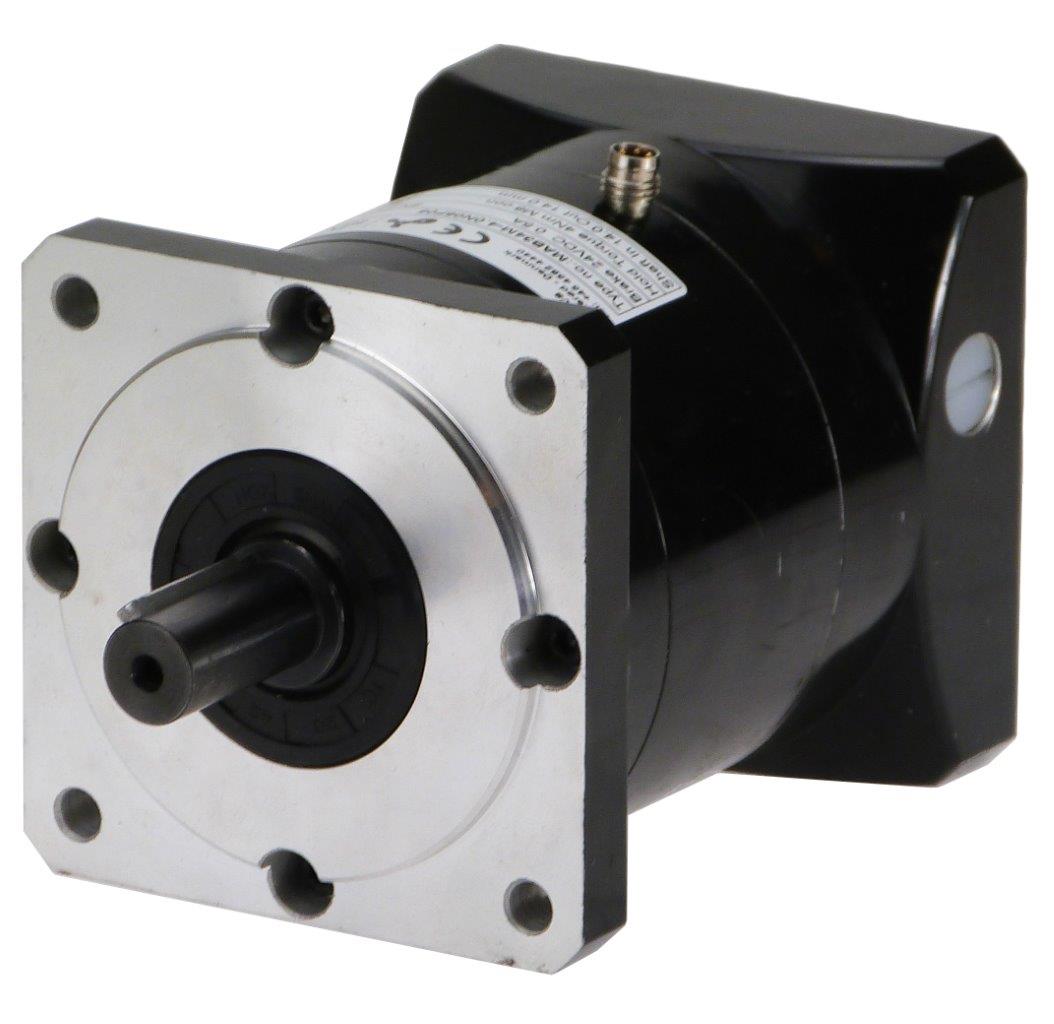

MAB34M-4.0N05F05 4.0±10%
(240.740)
14
(0.551)
14
(0.551)
M8 IP42
0.5 Amp
2.02
(4.44)
108.5
(4.27)



Cables
Part number
Description Drawing Photo
WI1000-M8F4S.3N M8 Cable 4 pin Fem 0° Shielded
0.3 m open end cable with straight connector
WI1000-M8F4AxxN
xx: 05 meter or 10 meter
M8 Cable 4 pin Fem 90°
5-10 m open end cable with angled connector
Below cables are only for MIS Stepper Motors
WI1013-M12M17TF4T.4N M12 17pM M8 4pF for MABxx brakes
0.45m cable with M8 for brake and M12 for motor for direct connection
WI1013-M12M17TF4TXAA M12 17pM M8 4pF for MABxx brake +2m cable
0.45m cable with M8 for brake and M12 for motor for direct connection including 2 meter cable with I/O 1-3 and CVO.

Pin 1 blue = 0 VDC, Pin 2 brown = +24 VDC, Pin 3 black = NC, Pin 4 white = NC.
