Spring and magnet holding brakes for stepper and servomotor


JVL deliver standard brake that can be mounted on front shaft NEMA17 , 23 and 34 motors . They are equipped with NEMA 17/23/34 in and output flange with optional wire or M8 connector and up to IP65 protection.

Read more here.

Alternative can JVL deliver raw brake for mounting or rear end shaft or in own housing. Please see holding brakes from 0.3 to 3 Nm below.











Part number
Type Torque
[Nm]/
(Oz-In)
Input Shaft Ø
[mm]/(inch)
Flange size
Drawing
HCTB42M-.50V01NAA
Spring
0.5
9 mm
NEMA 17
PDF

Part number
Type Torque
[Nm]/
(Oz-In)
Input Shaft Ø
[mm]/(inch)
Flange size
Drawing
HSHB17D-.60V16N
Magnet 0.6 5 mm round NEMA 17
HSHB17M-.30VX1N
Spring 0.3
6 mm round NEMA 17

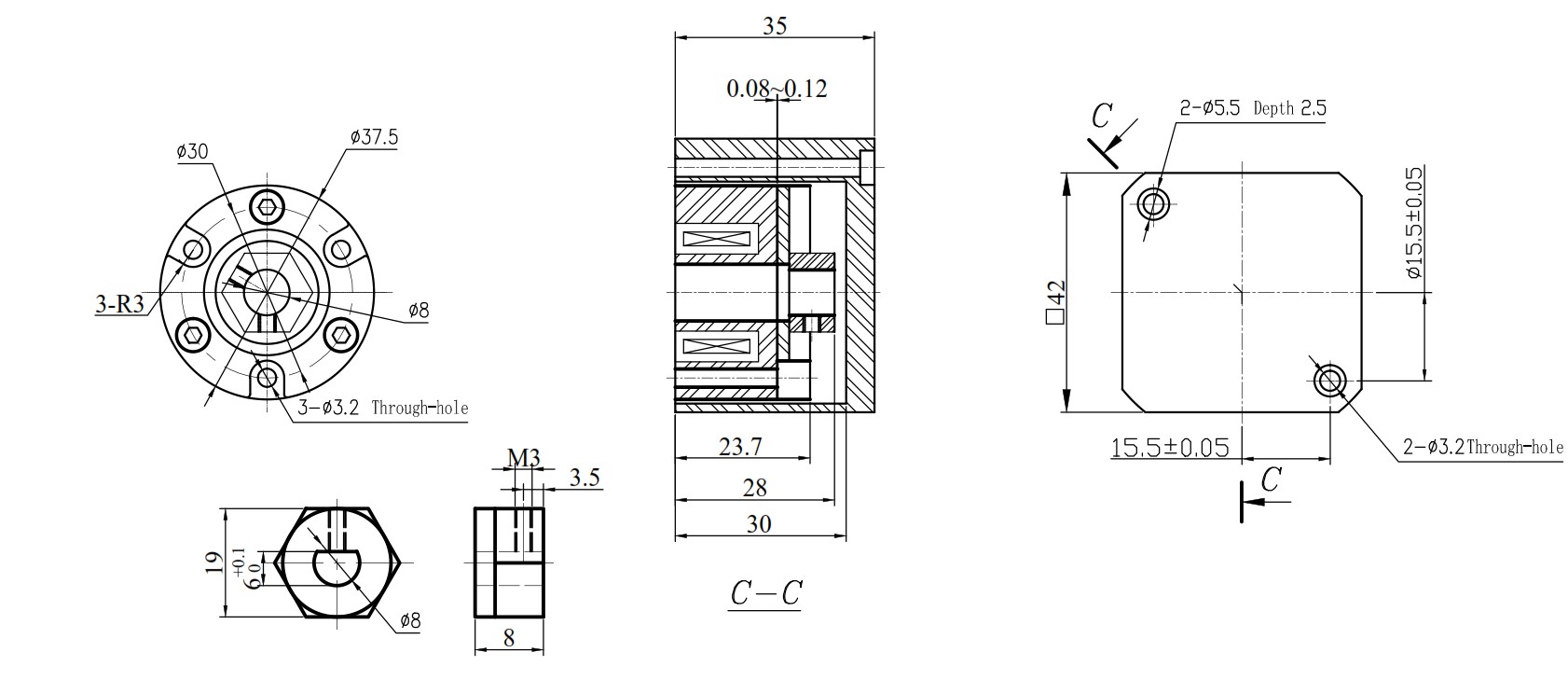

HSHB17M-.30VX1CAA
Spring w/ cover
0.3
6 mm round NEMA 17

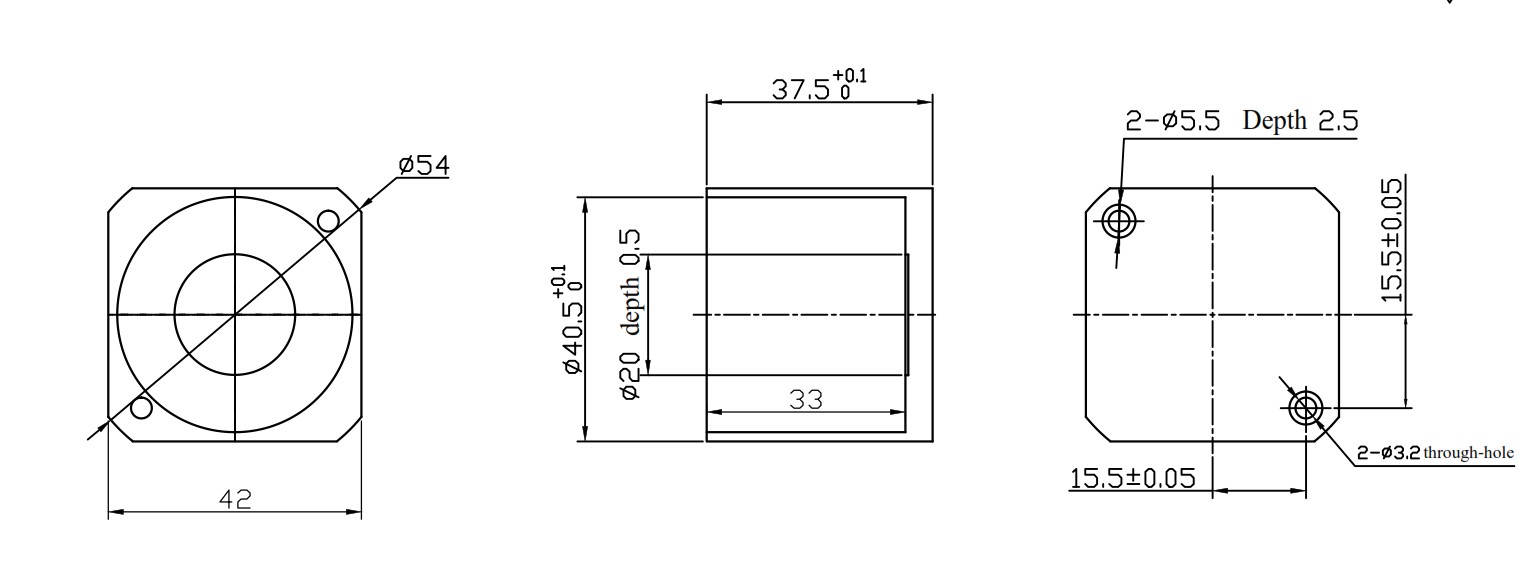

HSHCOV17-D035I
Cover


NEMA 17

Part number
Type Torque
[Nm]/
(Oz-In)
Input Shaft Ø
[mm]/(inch)
Flange size
Drawing
HSHB23D-2.0V35N
Magnet 2.0 8 mm key NEMA 23
HSHB23M-1.0W35N Spring 1.0 8 mm key NEMA 23

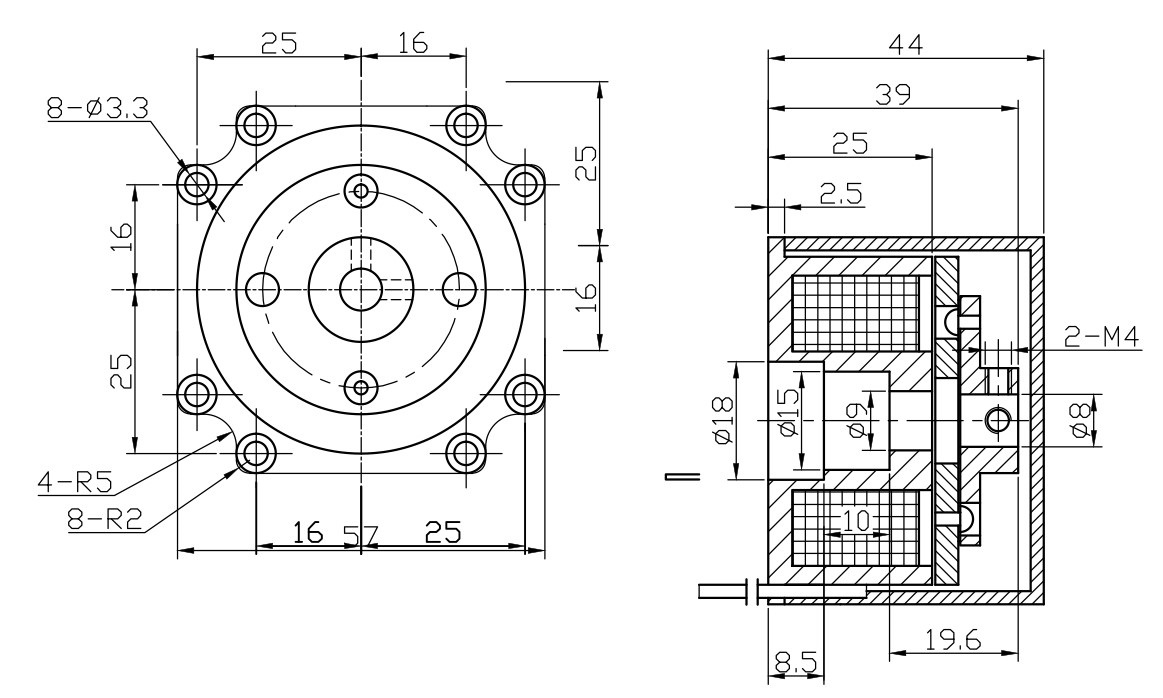

HSHB23D-2.0V35CAA
Magnet w/ cover 2.0 8 mm key NEMA 23
HSHCOV23-D044I
Cover NEMA 23
HSHCOV23-M044I
Cover NEMA 23

Part number
Type Torque
[Nm]/
(Oz-In)
Input Shaft Ø
[mm]/(inch)
Flange size
Drawing
MM3661
4.6 10 mm key NEMA34
MAB_MIS34X_BRK_IP00
4.6 10 mm NEMA34
MAB_MIS34X_BRK_IP65
4.6 10 mm NEMA34









Most popular




Visit us in Istanbul
Hall, booth (TBA)


Visit us in Hannover
Hall 15, booth H43


Visit us in München
Hall, booth (TBA)



Visit us in Birmingham
Hall 5, booth A120



Visit us in Nuremberg
Hall 4, booth 301
