Accessories for Electronic Motor Brake MAB23x and MAB34x
The following equipment is recommended for use with the Electronic Motor Brake MAB23x and MAB34x.
| Product |
|
|
|

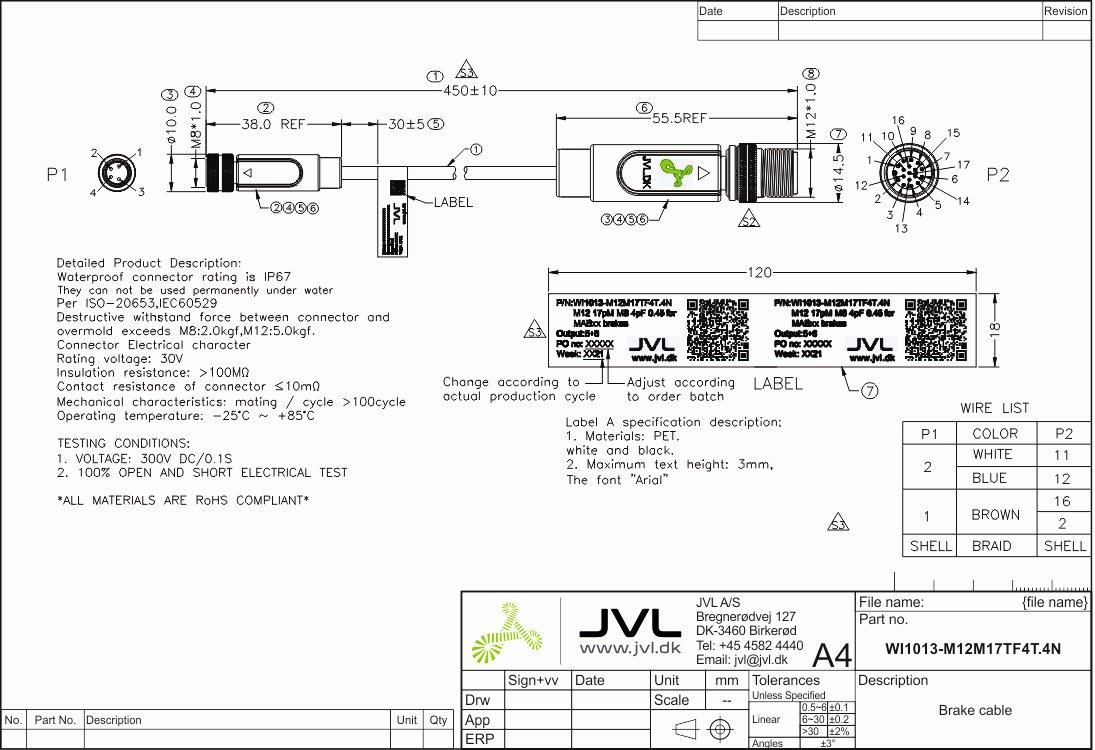

| WI1013-M12M17TF4TxxN |
M12 17pM M8 4pF for MABxx brakes |
IP67 |
 |

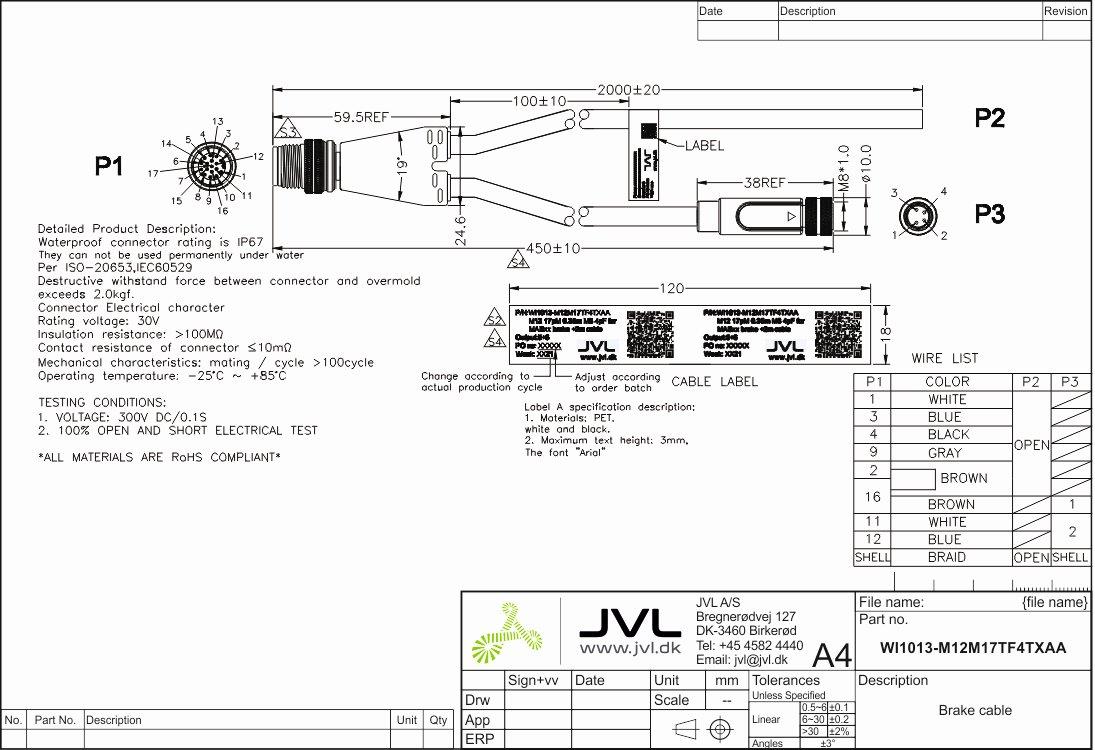

| WI1013-M12M17TF4TXAA |
M12 17pM M8 4pF + 2m cable for MABxx brakes |
IP67 |
 |
|
WI1000-M8F4AxxN* |
M8 female connector 90° with xx m cable. Pin 1 blue, pin 2 brown, pin 3 white, pin 4 black. |
IP67 |  |
|

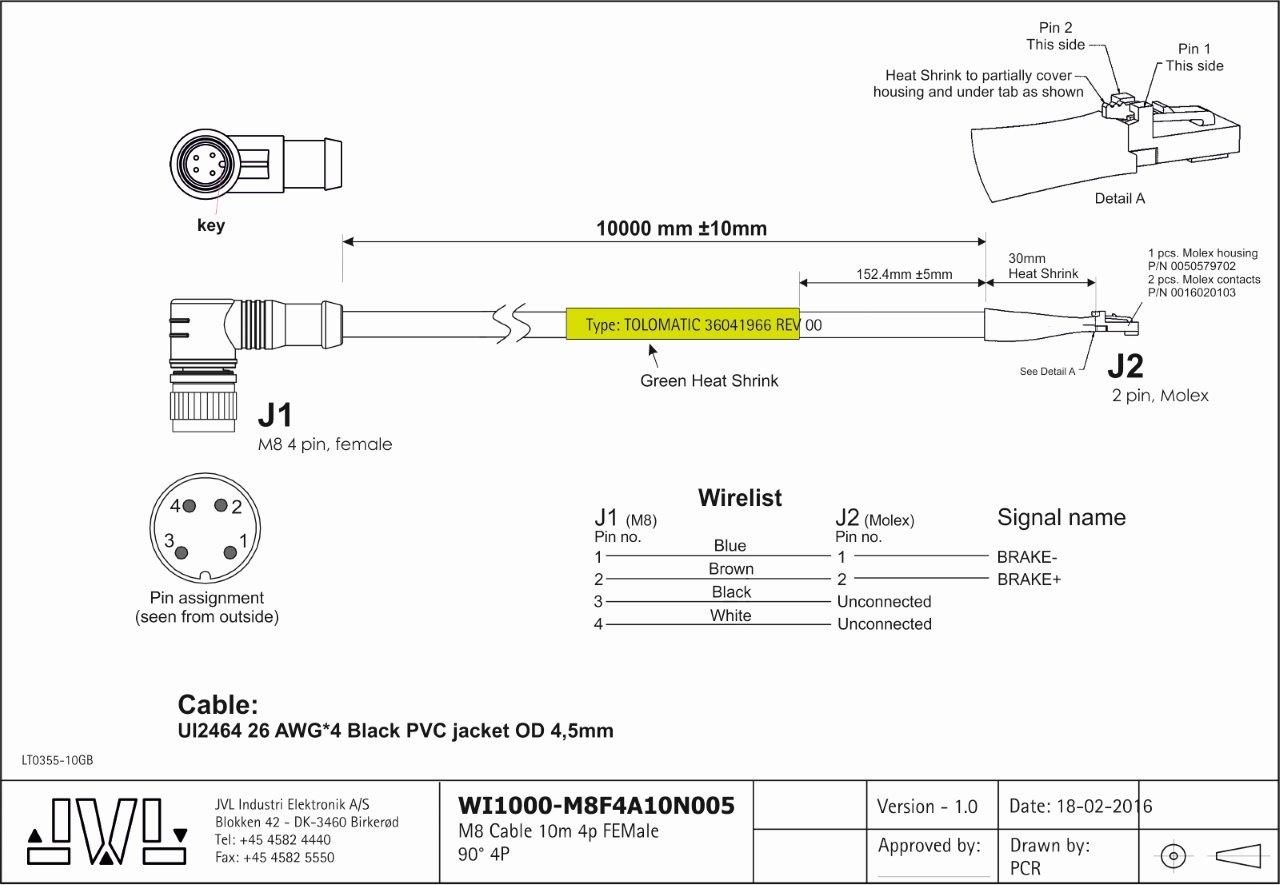

WI1000-M8F4AxxN005* |
M8 female connector 90° with Molex and xx m cable. Pin 1 blue, pin 2 brown, pin 3 white, pin 4 black. |
IP67 |
 |
|
WI1000-M8F4A10R |
M8 female connector 90° with 10 m High-flex cable. Pin 1 blue, pin 2 brown, pin 3 white, pin 4 black. |
IP67 |
|
|

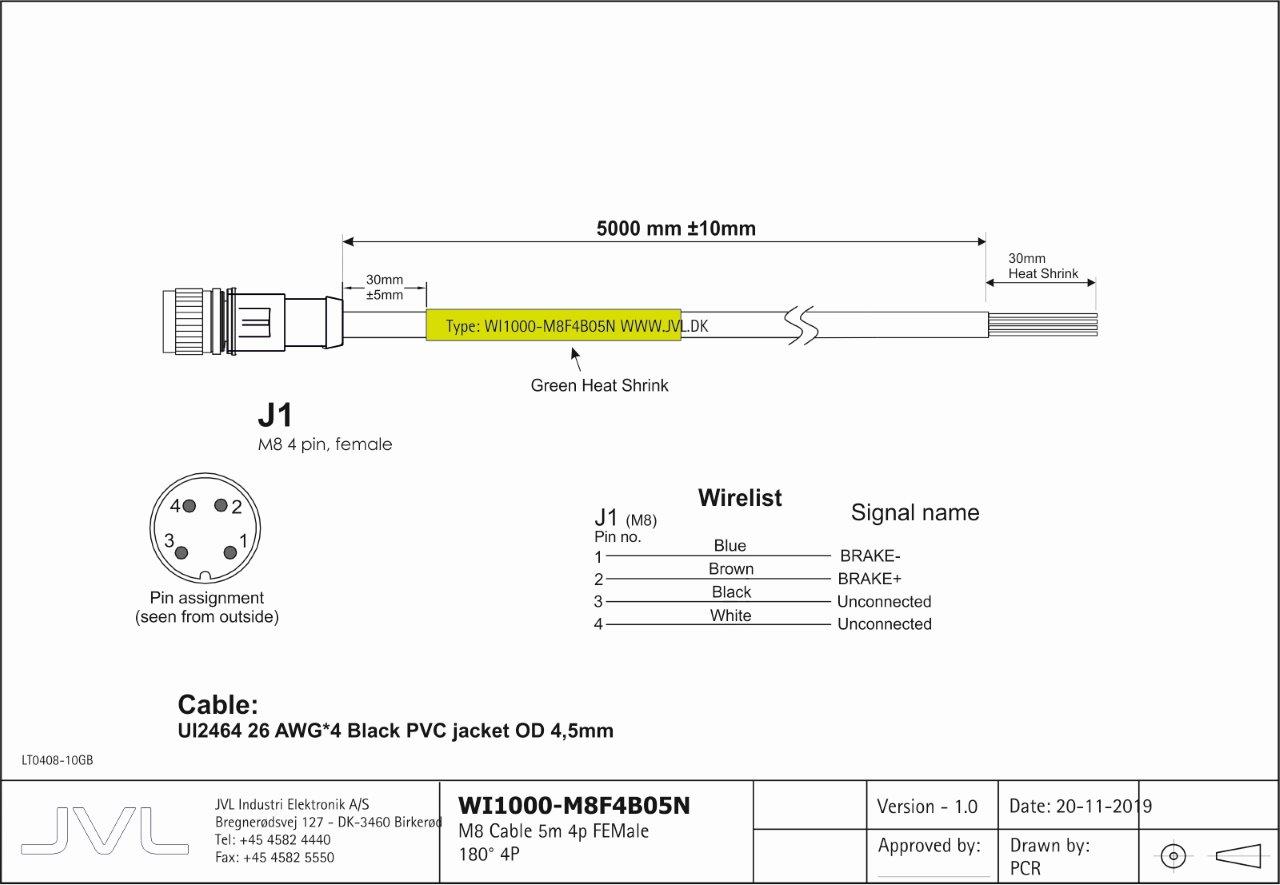

WI1000-M8F4BxxN* |
M8 female connector 0° with xx m unshielded cable. Pin 1 blue, pin 2 brown, pin 3 white, pin 4 black. |
IP67 |
 |
|
WI1000-M8F4S.3N |
M8 female connector 0° with 0.3 m shielded cable. Pin 1 blue, pin 2 brown, pin 3 white, pin 4 black. |
IP67 |
|
|
|

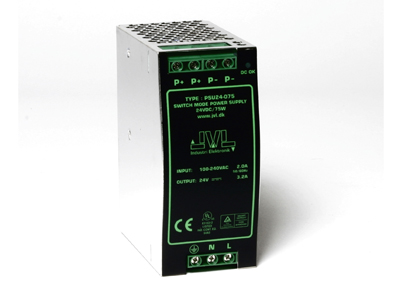

Switchmode Power Supply. Electronic Motor Brake only. |
- |  |
|
|

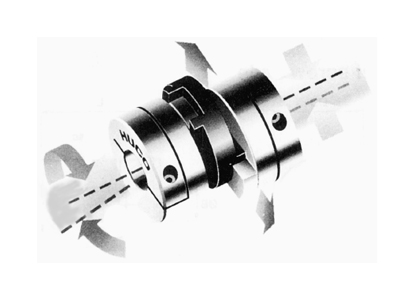

Flexible couplings. |
- |  |
xx; Available lengths are: 03: 3m, 05: 5m, 10: 10m, 20: 20m
