MIS231-MIS234 QuickStep - Integrated Stepper Motors

Not recommended for new projects, see MIS23x 2nd generation product page here.
QuickStep, the Integrated Stepper Motors from JVL.
A wealth of possibilities in a series of of the world´s most compact stepper motors with the higest microstepping resolution. 3 sizes are available.

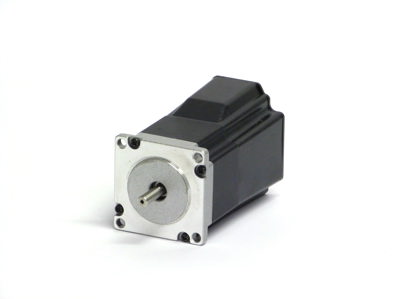

  • MIS231 - 1.1Nm

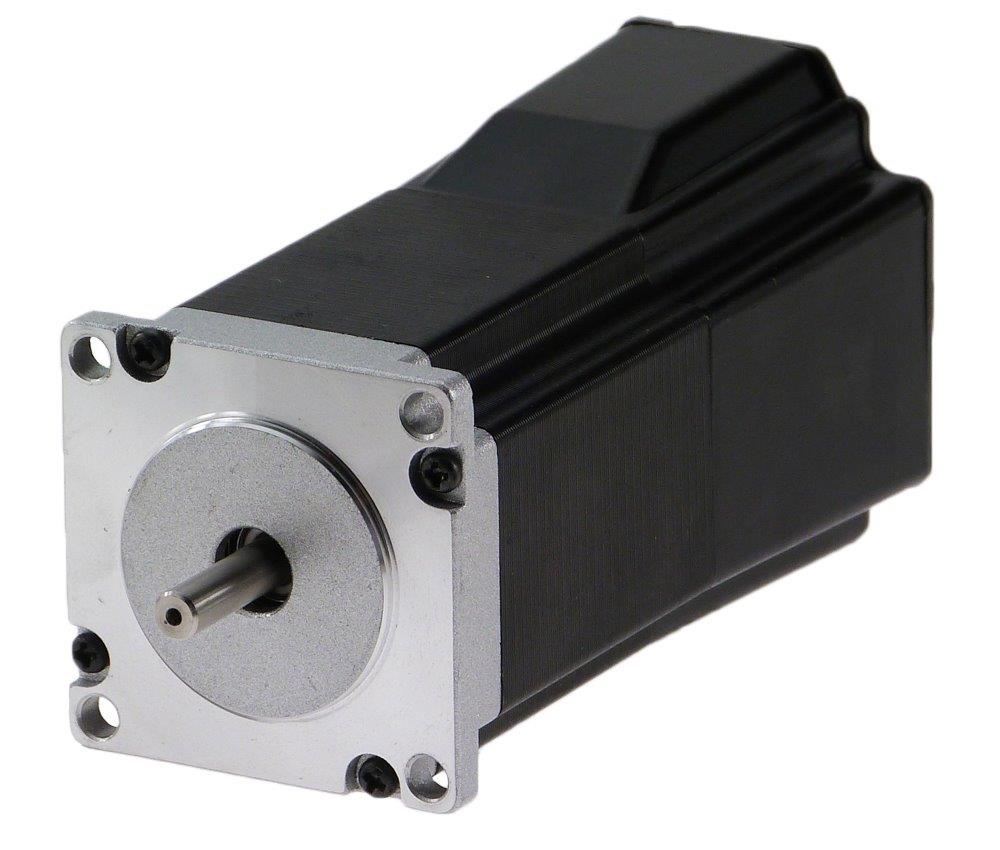

  • MIS232 - 1.6Nm
  • MIS234 - 2.9Nm
The QuickStep series of Stepper motors with integrated electronics represents a major step forward. All the necessary electronics in a stepper system are integrated in the motor itself.
The stepper motor, encoder and electronics are specially developed by JVL so that together they form a closed unit in which the power driver and controller are mounted inside the motor in a closed section with protection up to IP67.

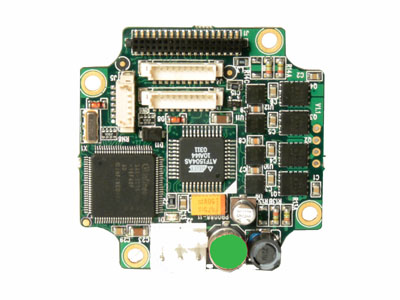

Note that the driver and controller are also available a separate unit - SMC75.
MIS Motor or Quickstep Integrated Stepper Motor from JVL is unique
JVL deliver sophisticated and ingenious electronic design of integrated stepper motors
The JVL MIS Integrated Servo Motors can be delivered with different numbers of M12 connectors
JVL integrated Quick stepper motors with highly innovative solutions

CANbus for SMC75
Integrated Stepper Motor MIS23xA and MIS23xK
MIS231A to 234A
  • DS301
  • Read/write access to all 256 registers via SDO.
  • Data rates selectable up to 1 MBit/s.
  • 4 x RxPDO and 4 x TxPDO use static mapping per default.
  • Special flexible mapping allows RxPDO writes to any register, and selection of 2 user selectable registers for TxPDO.
  • PDOs can work in SYNC mode or Event timer mode.
  • Heartbeat/Node Guarding support.
  • Flexibility
  • 1 fully flexible 32 bit register to be built from other registers bit-by-bit.
  • DSP402
  • Mandatory objects supported
  • Supports Position profile, Velocity profile, Zero search modes
Stepper Motor Controller
