Planetary, Robot and Worm Gears

Geared motors for any application

Easy connection of your JVL motors to a wide range of gear boxes - worm, low cost planetary, high performance planetary and backlash free robot gear reducers

Type	Nominal torque (Nm)	Ratios	Backlash(arcmin)	Effici ency (%)
HMGH	6	3:1... 100:1	120	60... 90	Low Cost Planetary Gears If your application is cost sensitive and you don't need high perfomance the HMGH series is the right choice.
HFOS	9...21	6:1... 75:1	Depends on conditions	36... 77	HFOS Worm Gears If cost is important and you also need a 90° angle - then our Worm gear boxes should be your first choice. Use the MAC141-A1AFAG which is a standard MAC 141 motor build with an 8 mm special shaft and round flange: it fits directly on the HFOS gear series.

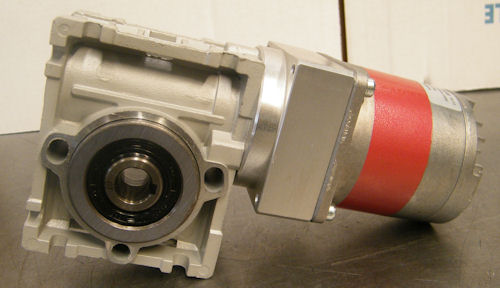

HTTW	12...166	5:1... 100:1	Depends on conditions	50... 70	HTTW Worm Gears This worm gear range allows you to supply compact sized stepper and servo gear motors for applications in many sectors that have limited dimensions and where high torque, hollow shaft and low cost is a necessity.
HTRG	12... 1.000	3:1... 1.000:1	3...17	90... 97	High Performance Planetary Gears When you need an honest hard working Planetary gear box think of our HTRG series. We provide them with std backlash of 15 or 10 arcmin (1+2 stage) and also with high precision reduced backlash of either 5 or 3 arcmin
HAGG	15... 6.000	3:1... 100:1 (10.000:1)	1...25	90... 97	High Performance Planetary Gears The most precise Planetary gear box we can deliver is our HAGG series from Wittenstein - better know as Alpha gear boxes. We provide them with backlash from 1 to 25 arcmin. Select them when you need the highest quality and performance, and you will get trouble-free operation for a very long time.
HSPG	37... 2940	33:1... 191:1	<1	50... 95	Backlash free Robot Gears Combine your bearing and backlash free gear box into one unit - the HSPG Spinea reducer. Unbeatable specs and perfomance made companies like KUKA and ABB prefer these reducers in their robots, which really must run perfectly 24-7. Also very suitable for turn tables, antennas, cameras, radars and e.g. tools in moulding machines.
