Automated Guided Vehicle AGV gear for wheel application with integrated stepper or servomotor.

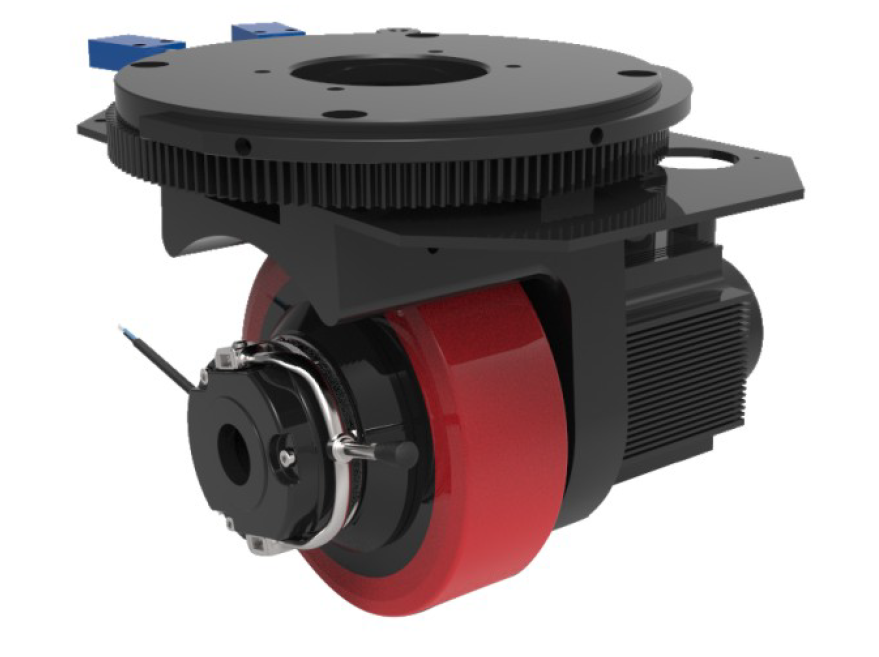

HSHV is a new AGV gear where planetary gear is build inside the wheel for a very compact and short construction in walking and steering applications. Gear is delivered with a polyurethane wheel for harsh industrial application and have proved it worth in many AGV’s . Two angular contact bearing for very high load performance and long lifetime
Features:

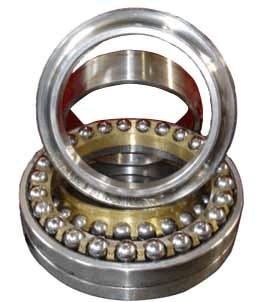

- Two angular contact ball bearing for high quality and high load
- Rated output torque up 120Nm
- Radial force up to 6500N
- Axial force up to 850N
- Efficiency 92%
- Standard gear Ø160mm wheel diameter
- Under development 100, 140, 200 mm wheel diameter
- Gear ratio 10,15,30 2stage planetary gear
- Backlash <15 arcmin
- Select stepper or servomotor in many different sizes
- Brake option available in motor or front mounted
- Standards flange for MIS34x and MAC40x
- Optional complete walk and steering solution in one unit
|
|
 |

|

|

|

|
|
|
|
Part number
|
Rated Torque [N]
|
Max output torque [N]
|
Gear ratio
|
Flange for Motor
|
Drawing
|
HSHVA6N015MLN3405_A6
|
110
|
220
|
15
|
MIS34x Ø14mm
|
|
HSHVA6N015MLNS605_A6
|
110
|
220
|
15
|
MAC400/402
|
|

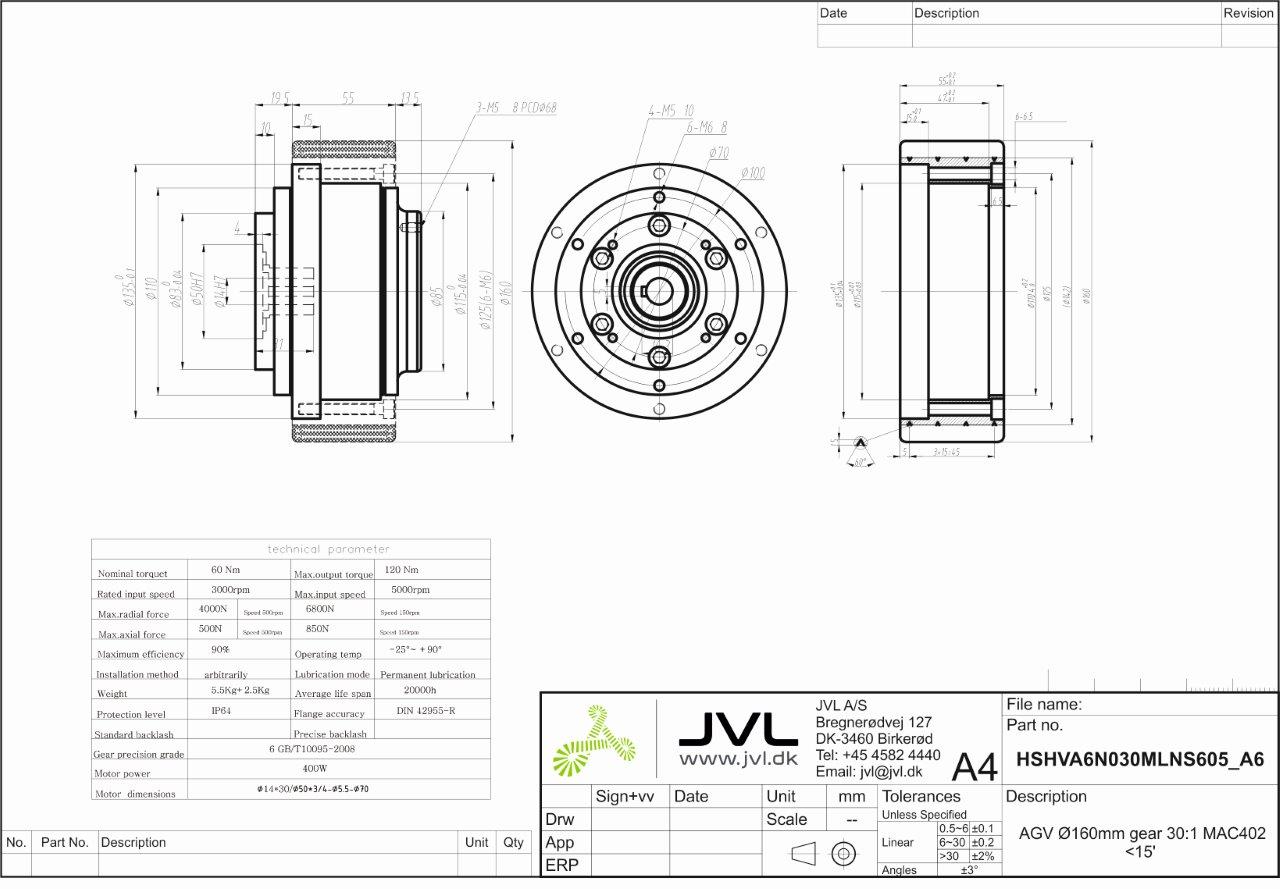

HSHVA6N030MLNS605_A6
|
60
|
80
|
30
|
MAC400/402
|

|

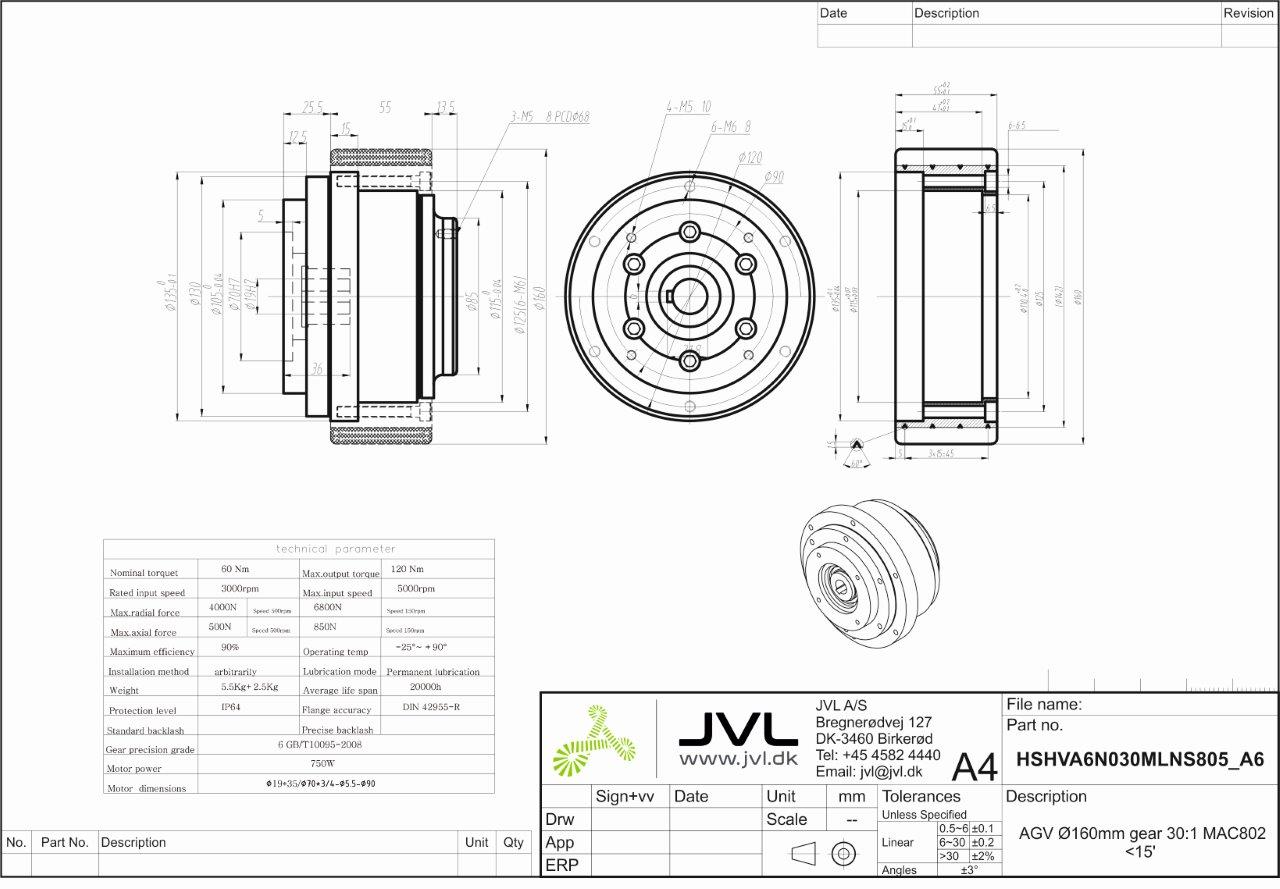

HSHVA6N030MLNS805_A6
|
60
|
80
|
30
|
MAC800/802
|

|
Available gear ratios: 9:1, 15:1, 21:1, 30:1
Model
|
Unit
|
|
|
HSHVA6
|
|
Ratios
|
Stages
|
Rated output torque
|
Nm
|
|
|
|
|
3
|
1-stages
|
|
|
|
|
4
|
|
|
|
|
6
|
|
|
90.0
|
|
9
|
|
|
60.0
|
|
15
|
2-stages
|
|
|
40.0
|
|
21
|
|
|
|
|
28
|
|
|
40.0
|
|
30
|
|
|
|
|
40
|
|
|
|
|
42
|
|
|
|
|
60
|
Max. output torque
|
Nm
|
2 x Nominal output torque
|
Backlash
|
arcemin
|
|
|
< 8
|
|
|
1-stages
|
|
|
< 14
|
|
|
2-stages
|
N0-load torque
|
Nm
|
|
|
0.4
|
|
|
1-stages
|
|
|
0.3
|
|
|
2-stages
|
Rated input speed
|
RPM
|
|
|
3000
|
|
|
|
Max. input speed
|
RPM
|
|
|
5000
|
|
|
|
Noise
|
Db
|
|
|
<62
|
|
|
|
Max. radial force
|
N
|
|
|
4500
|
|
|
1-stages
|
|
|
6500
|
|
|
2-stages
|
Max. axial force
|
N
|
|
|
700
|
|
|
1-stages
|
|
|
850
|
|
|
2-stages
|
Torsional stiffness
|
Nm/arcmin
|
|
|
24.0
|
|
|
|
Lifetime
|
H
|
20000
|
|
|
Min. operating temp
|
°C
|
-25
|
|
|
Max. operating temp
|
°C
|
+90
|
|
|
Protection class
|
IP
|
IP54
|
|
|
Lubrication
|
|
Lifetime
|
|
|
Mounting position
|
|
Any
|
|
|
Direction of rotation
|
|
Input and output are reverse
|
|
|
Maximum efficiency
|
%
|
92
|
|
1-stages
|
86
|
|
2-stages
|
Accessories |
Inner diameter [mm] |
Outer diameter [mm] |
Part number |
Photo |
Bushing adapter sleeves for motor, brake, gear, actuator
|
5, 6.35, 8, 9.53, 10, 16 |
6.35, 8, 9.53, 10, 12, 14, 19 |
Read more here |
  |
