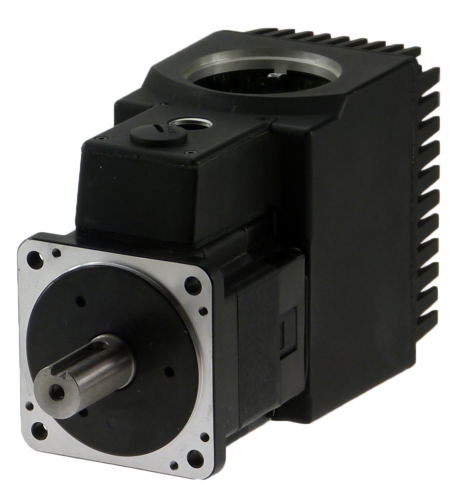

MAC800 - Integrated Servo Motors


MAC800 - The complete solution for larger power ratings.
All with built-in mains power supply.
Choose between model with or without brake.
Also in IP66 version.
Choose Expansion module from the extensive selection for any application.

Motor size is:
  • MAC800-D2 746W
  • MAC800-D5 (with built-in brake) 746W
Expansion module you can choose between:
  • Basic Modules
  • Programmable Modules
  • Field Bus Modules
  • High Speed Multi-Axis Modules
  • Wireless Modules

The MAC motor is All necessary components in one unit - Mac800
The MAC800 servomotor is much better protected against electrical noise than conventionel units
The MAC800 Integrated Servo Motors utilize the unique module concept
the MAC servo motor gives you possibilities no other motors on the market can provide - Mac800

Most of them available with either cable glands, DSUB connectors and M12 connectors. See EXPANSION MODULES SELECTION CHART.

See the ACCESSORIES, GEARS, and POWER SUPPLIES for further possibilities.

MAC800-D models with associated expansion modules are UL recognized.
