Integrated Stepper Motors Linear Actuator NEMA17 to NEMA34

Stepper Motors Linear Actuator Stepper Motors Linear Actuator NEMA08 to NEMA34 Linear Stepper Motors can dramatically reduce cost and save space The JVL stepper motor linear actuator is available in non-captive, external linear and captive options.
NEMA17 ServoStep
NEMA23 ServoStep
NEMA23 QuickStep
NEMA34 ServoStep

Linear ServoStep Motors with Integrated controller or driver.
Motor type
Size
mm /
(inch)
Screw types


42
(1.7)
  • Integrated electric actuators with piston
  • Electric actuators with open spindle
MIL Linear Stepper Motors with Integrated controller or driver.
2. Gen
57
(2.3)
  • Integrated electric actuators with piston
  • Electric actuators with open spindle
  • Integrated spindle drives
MIL Linear Stepper Motors with Integrated controller or driver.

86
(3.4)
  • Integrated electric actuators with piston
  • External lead screw
  • External ball screw
MIL Linear Stepper Motors with Integrated controller or driver.
Linear QuickStep Motors with Integrated controller or driver.
Motor type
Size
mm /
(inch)
Screw types


57
(2.3)
  • Integrated electric actuators with piston
  • External lead screw
  • External ball screw
MIL Linear Stepper Motors with Integrated controller or driver.


Linear Stepper Motors can dramatically reduce cost and save space. There is no coupling, no additional bearing support and no assembly work required. This not only reduce cost but also reduce failure rate due to the less number of components and more simple construction. In applications with small load ratings a linear guide is also not required. The special design and material of the nut secure long life operations.

Below versions can be delivered

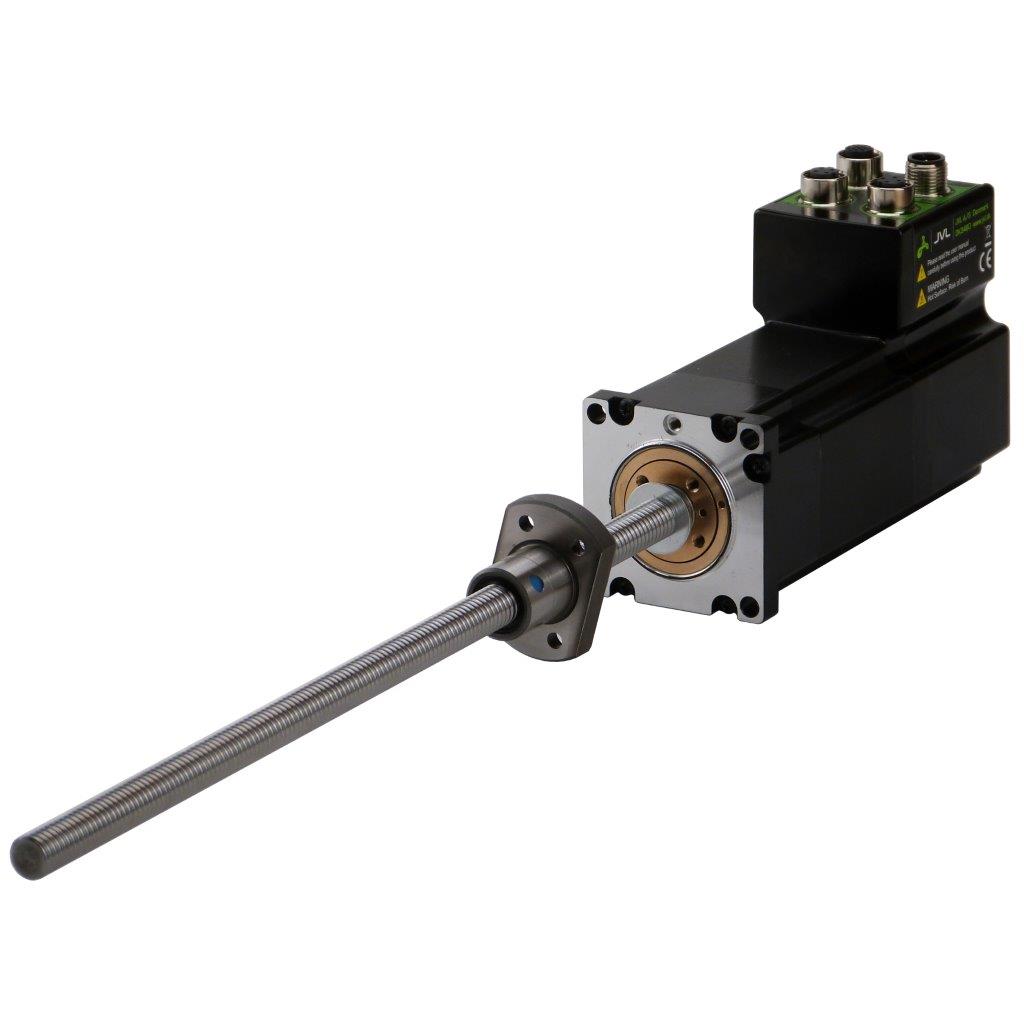

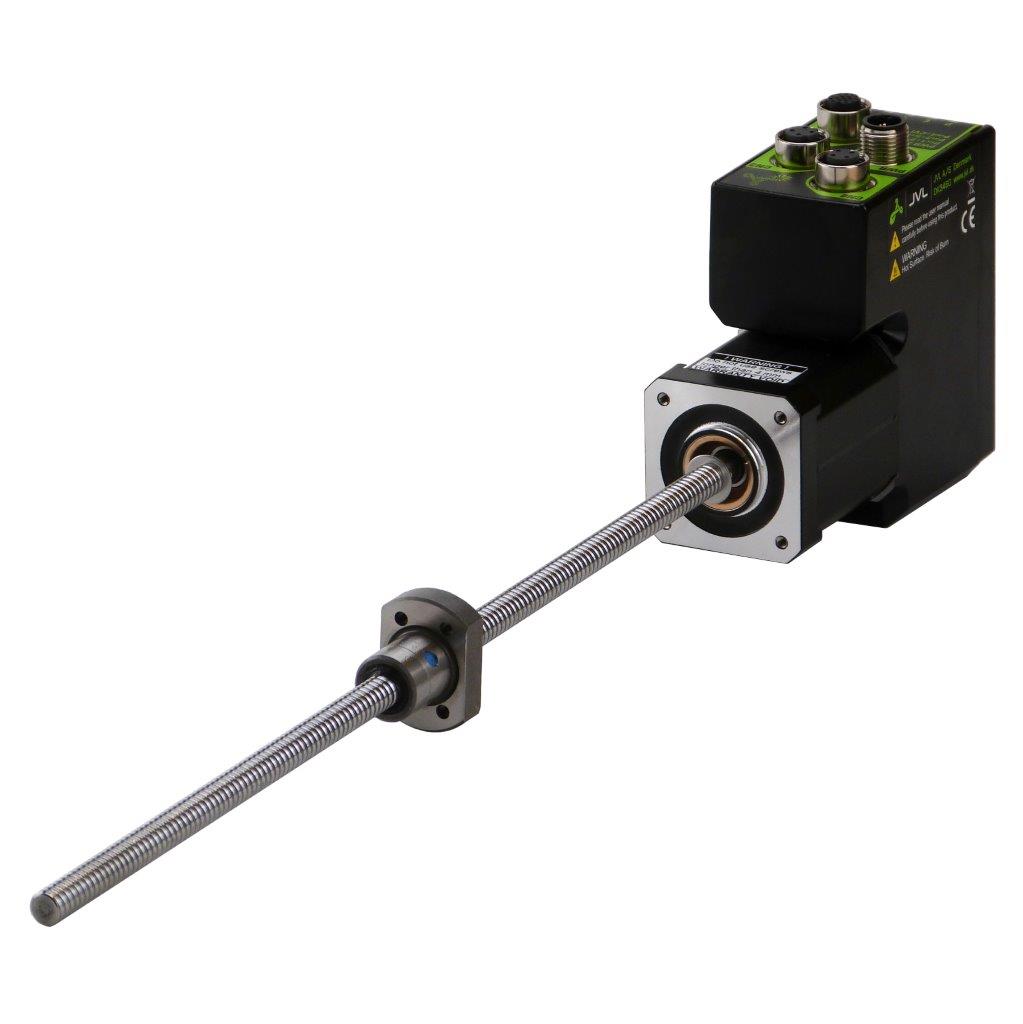

  • External linear actuator. Nut are mounted on lead screw.
  • Captive
  • Rolled ball screw, grade C7.

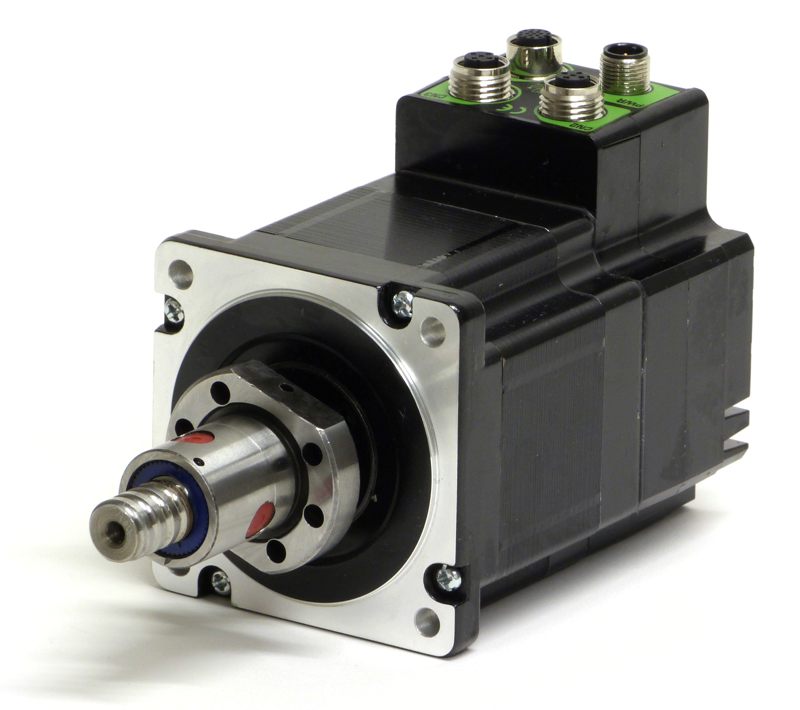

  • Non-Captive linear actuator with nut inside motor. Linear moving part can rotate so it should be fixed. (only for NEMA34, IP00)

On request

  • Different pitch and stroke length
  • Special nut design
  • Higher IP protection
----------------------------------------------------

The JVL stepper motor linear actuator is available in non-captive, external linear and captive options. Captive and external linear are also available with integrated build in controller or driver.
They are available in a wide variety of resolutions from x mm/rev to y mm/rev. In addition to our standard configurations can we custom design this stepper motor linear actuator to meet your specific application requirements. The range come in three sizes from 42mm to 86mm square flange NEMA17,NEMA23 and NEMA34.

Typical Application:
  • Precise and rapid positioning
  • X-Y tables
  • Optical scanning equipment
  • Mechanical or acoustic measurements
  • Medical valve and pump equipment
  • Semiconductor handling
  • Industrial Multi axis machines
  • Paperhandling
  • Food processing
Want to learn more about Captive and Non-captive motors? (Click here)
