MIL17x 2nd generation and MIS17 with hollow shaft for mounting of own or JVL spindle


Linear stepper motors can dramatically reduce cost and save space. There is no coupling, no additional bearing support and no assembly work required. This not only reduces the cost but also reduces the failure rate due to fewer components and a simpler construction. In applications with small load ratings a linear guide is not required. The special design and material of the nut enables long life operation.

Versions available
  • External linear actuator. Nut are mounted on lead screw.
  • Captive
  • Rolled ball screw.
On request







Motor Type
Running Torque
Motor Length
Shaft/Screw
Drawing
Stepper Motors with hollow shaft for external screw mounting (without screw)

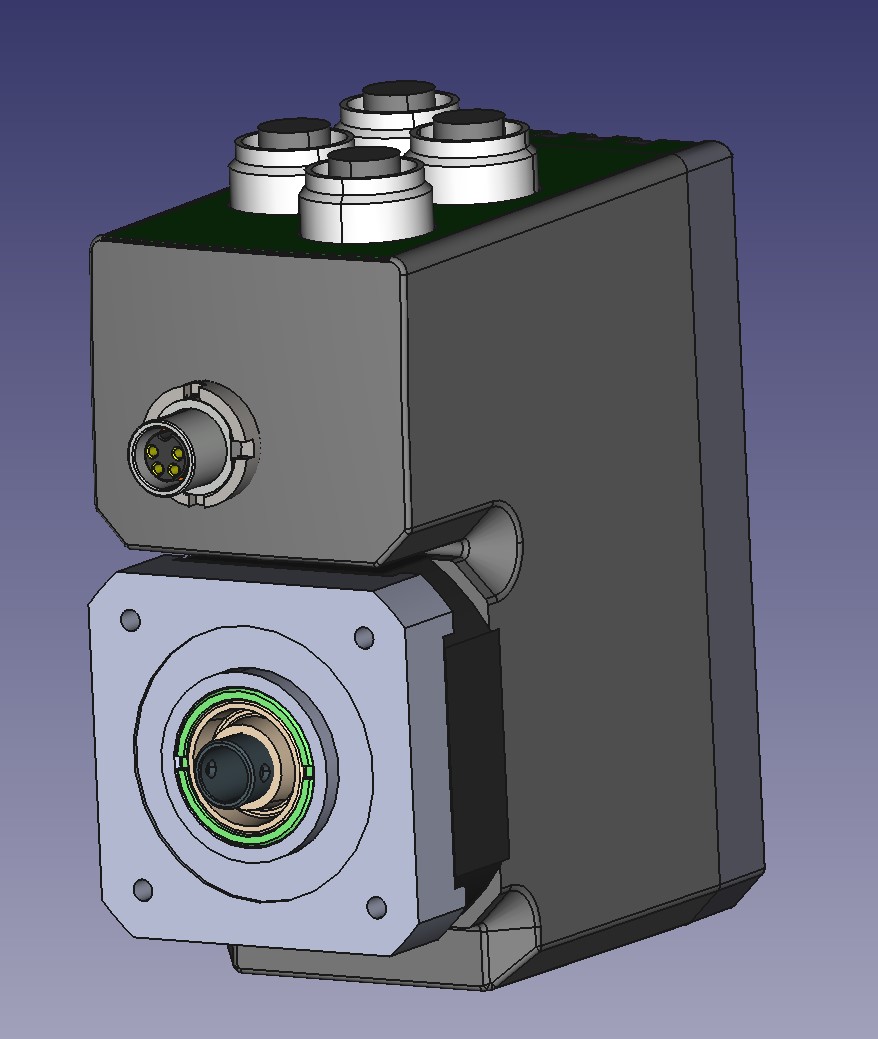

MIS171S59xxyy66
0.36
73.5
Ø6.35 with pin

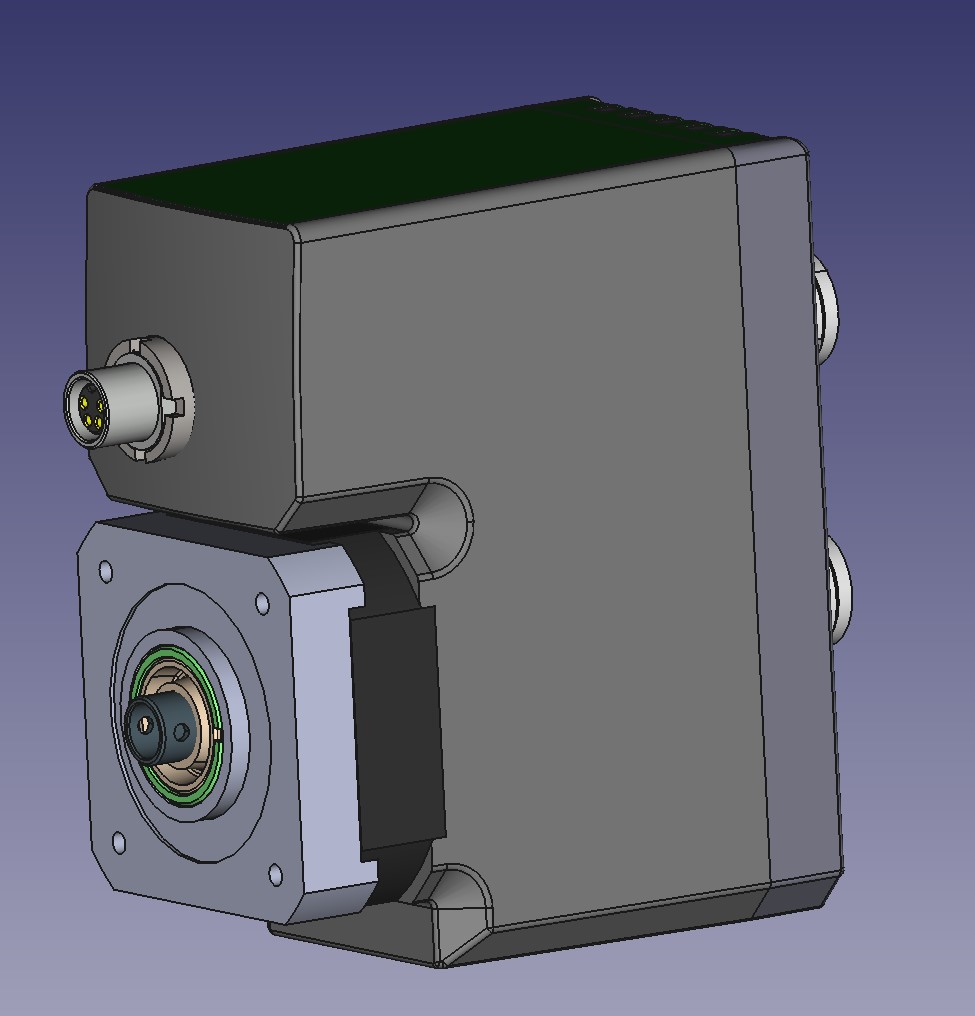

MIS171Q59xxyy66
0.36
73.5
Ø6.35 with pin


MIS176S59xxyy66
0.8
106
Ø6.35 with pin


MIS176Q59xxyy66
0.8
106
Ø6.35 with pin



Motor Type
Force
Motor Length
Screw dimensions
Drawing
Stepper Motors Linear Actuators - Captive
MIL171SCL-xxyy66G

73.5
3.175 mm/rev 63.5 mm travel length


MIL176SCL-xxyy66G

106
3.175 mm/rev 63.5 mm travel length



Motor Type
Force
Motor Length
Screw dimensions
Drawing

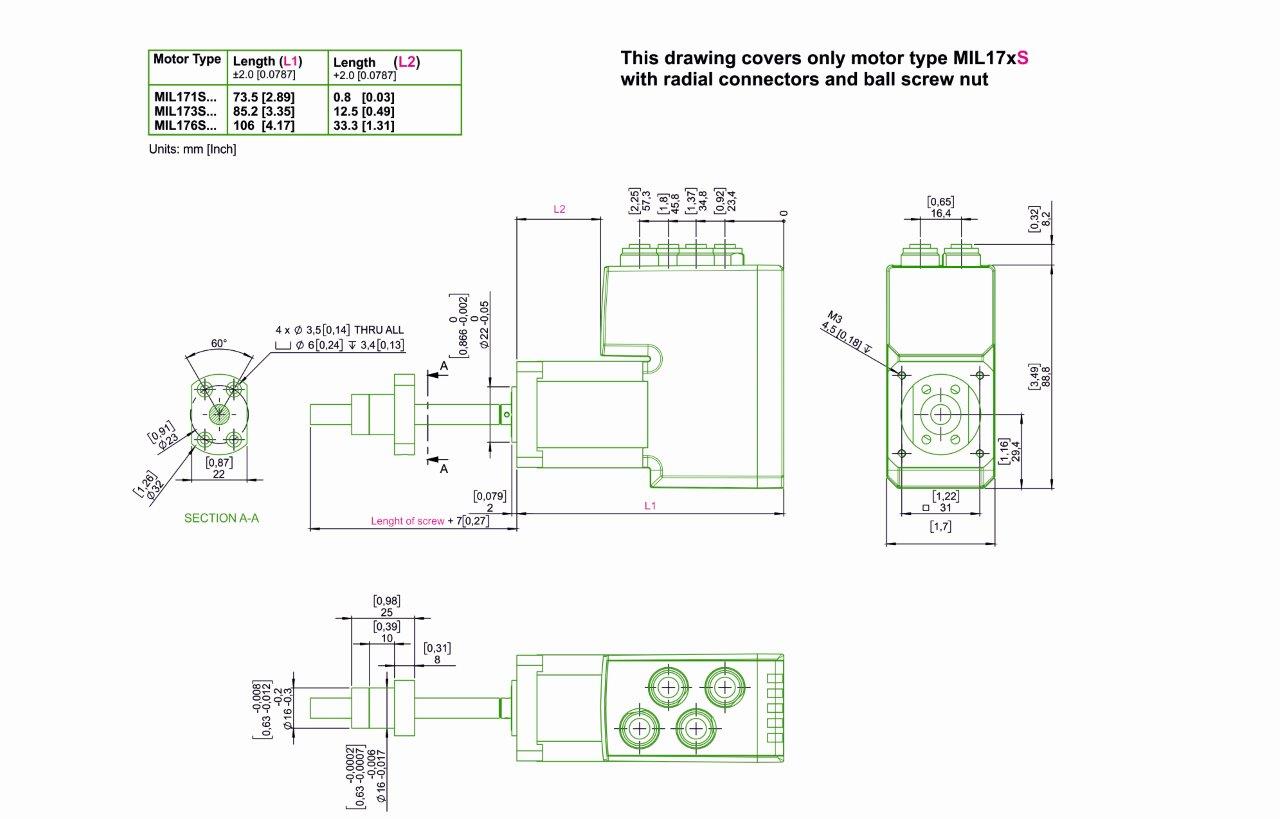

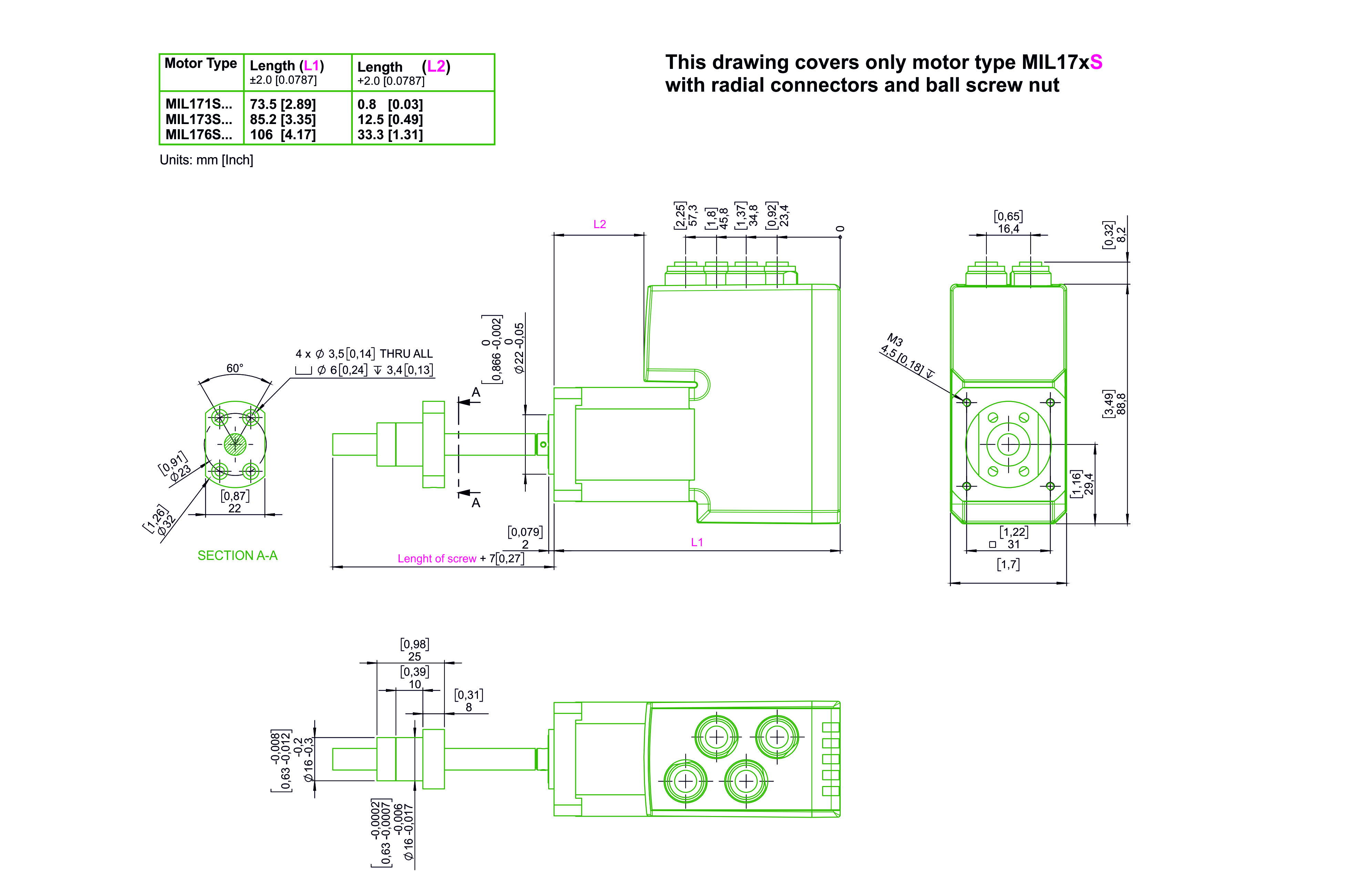

Stepper Motors Linear Actuators - Ball screw
MIL171SBH-xxyy66G

73.5
ø8x300, 2 mm/rev, 275 mm travel length


MIL176SCL-xxyy66G

106
ø8x300, 2 mm/rev, 275 mm travel length



Motor Type
Force
Motor Length
Screw dimensions
Drawing
Stepper Motors Linear Actuators - Trapeze Lead screw POM nut
MIL171SEK-xxyy66G

73.5
ø8x300, 2.5 mm/rev, 286.6 mm travel length


MIL176SEK-xxyy66G

106
ø8x300, 2.5 mm/rev, 286.6 mm travel length



Available screws (frequently in stock)
Part number
Description Lead [mm/rev]
Screw Length [mm]
Diameter [mm]
Drawing

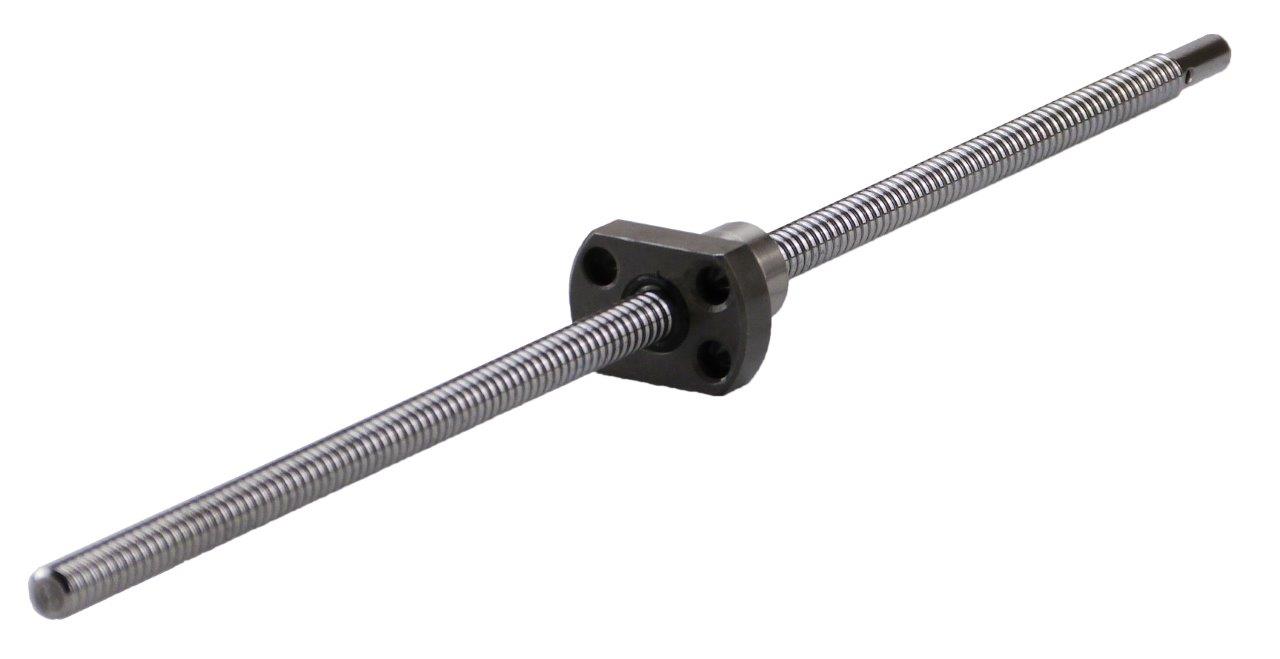

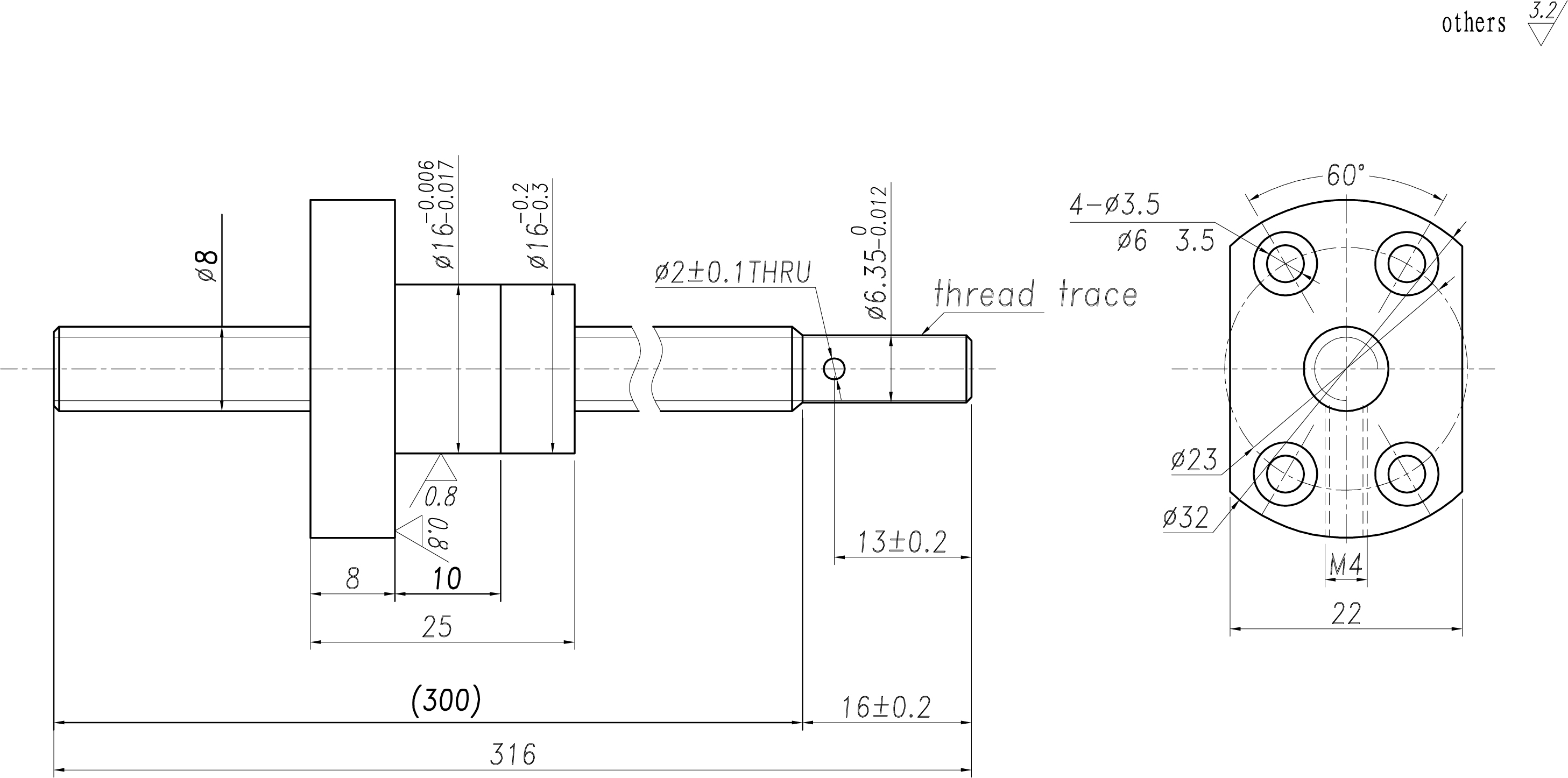

HBWE-08R3K5R0300
Steel rolled ball screw, Flange type E ball screw nut. 7th grade tolerance, light preload.
2.5
300
Ø8


HBWE-08E1HSR0300
Steel Trapezoidal lead screw, brass nut. 7th grade tolerance, light preload.
2
300
Ø8



Available Ball screws (4 weeks delivery time)
For ordering code please use below part number, substitute xxxx with required length in mm. eg. 400 mm = 0400
Partnumer
Diameter
Lead
HBWE-08R1KSRxxxx
Ø8
2.5
HBWE-12R1MSRxxxx
Ø12
4
HBWE-12R1QSRxxxx
Ø12
5
HBWE-12R1WSRxxxx Ø12
10











Part number
Rated Output Torque
[Nm]/
(Oz-In)
Input Shaft Ø
[mm]/
(inch)
Output Shaft Ø
[mm]/
(inch)
Protection class
Lenght
[mm]/
(inch)
Drawing Photo

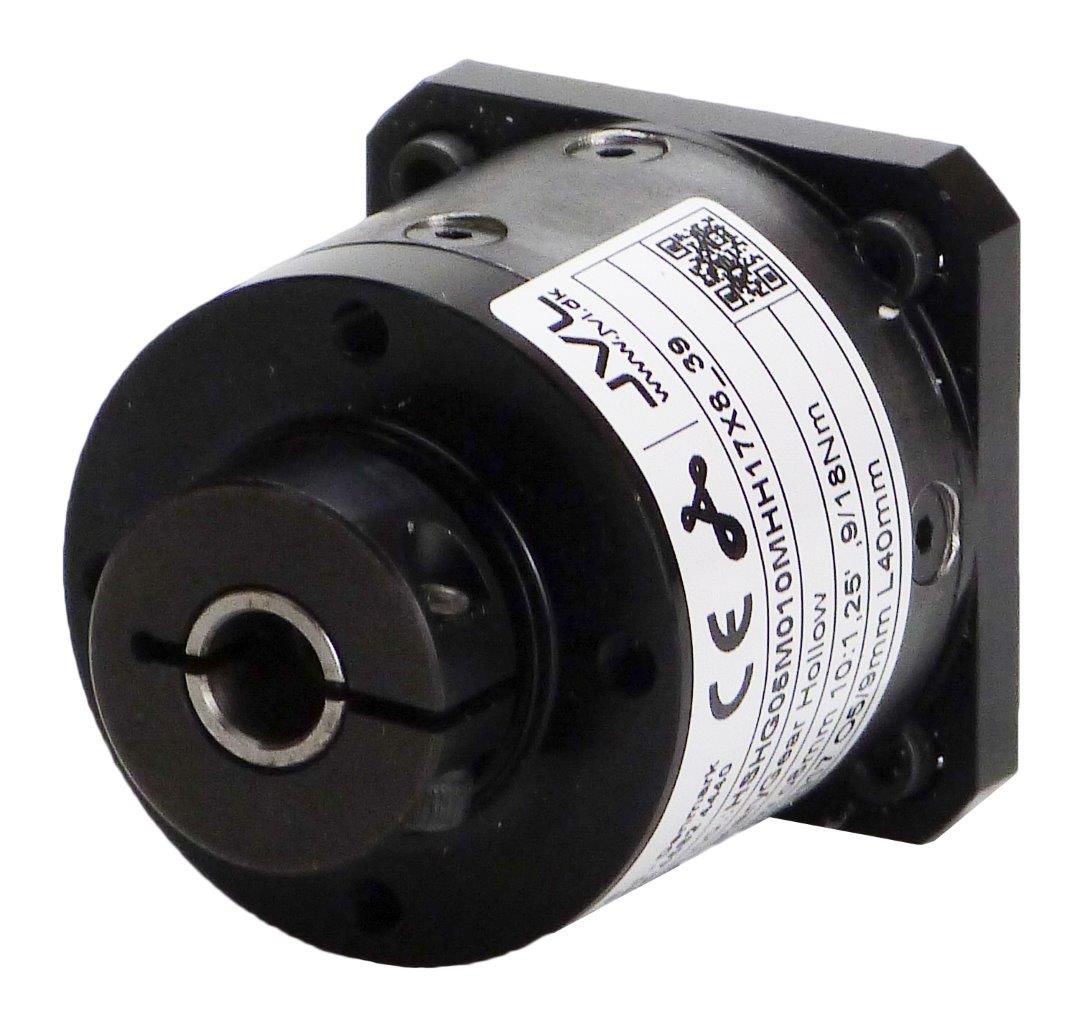

HSHG05M010MHH17X8_39
Ratio 10:1, 1 stage
4
(566.44)
5
(0.19)
8
(0.31)
IP42
40
(1.57)
Link

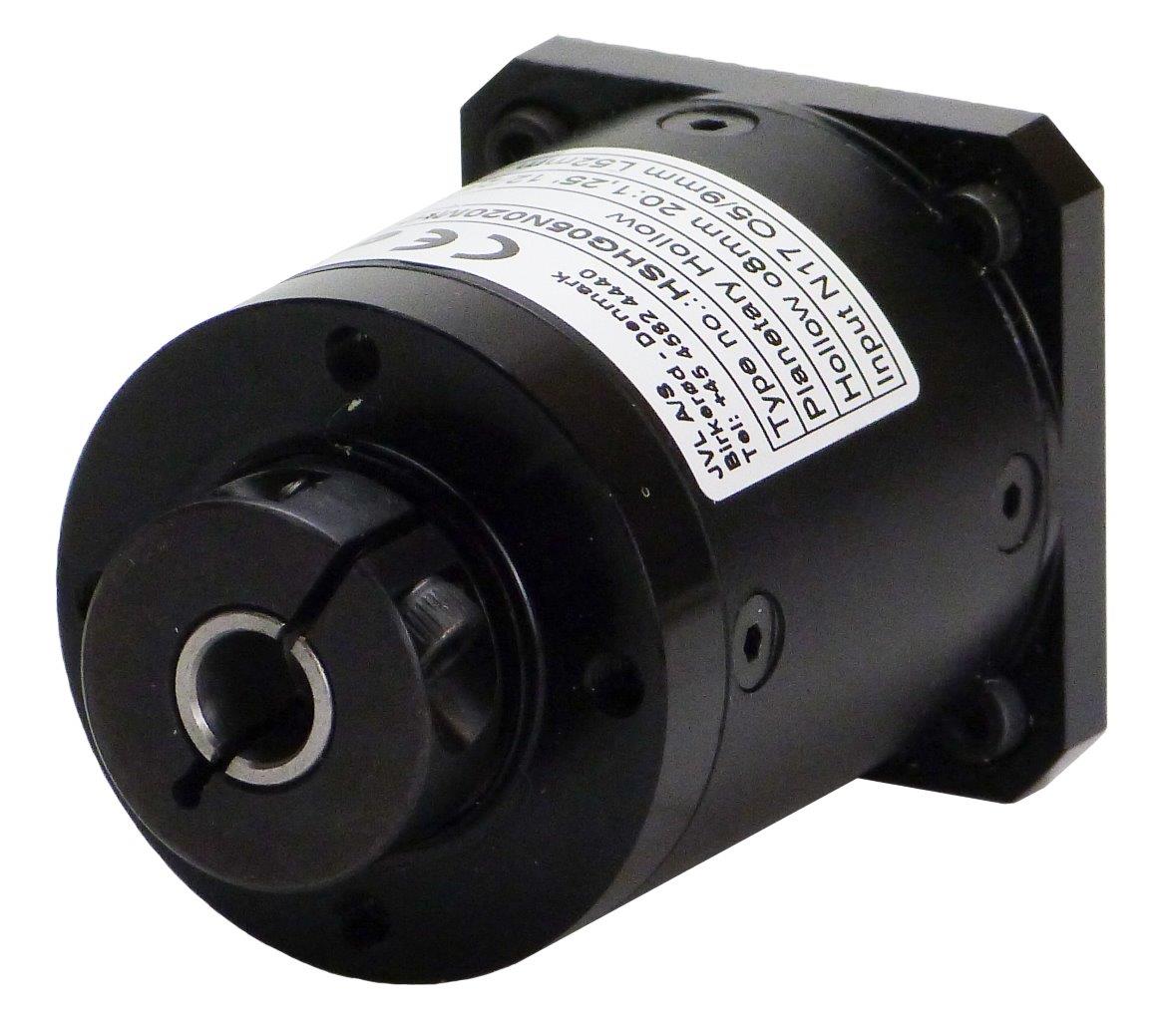

HSHG05N020MHH17X8_39
Ratio 20:1, 2 stage
12
(1699.34)
5
(0.19)
8
(0.31)
IP42
52
(2.04)
Link

HSHG05N040MHH17X8_39
Ratio 40:1, 2 stage
9
(1274.50)
5
(0.19)
8
(0.31)
IP42
52
(2.04)
Link


To order a Nema17 Linear actuator with gear please order the following: MIS17xx59 motor with your required interface and encoder etc. + HSHG05 gear + HBWE08 spindle.
