Stepper Motor Controller SMC67 PCB version
|
Stepper motor controller 0-6Amp RMS, PLC build in with 8IOA and RS422. Optional Profinet, EtherCAT, EthernetIP, Powerlink, MOSBUS TCP, Bluetooth, WLAN, Zigbii, SSI or CANopen.

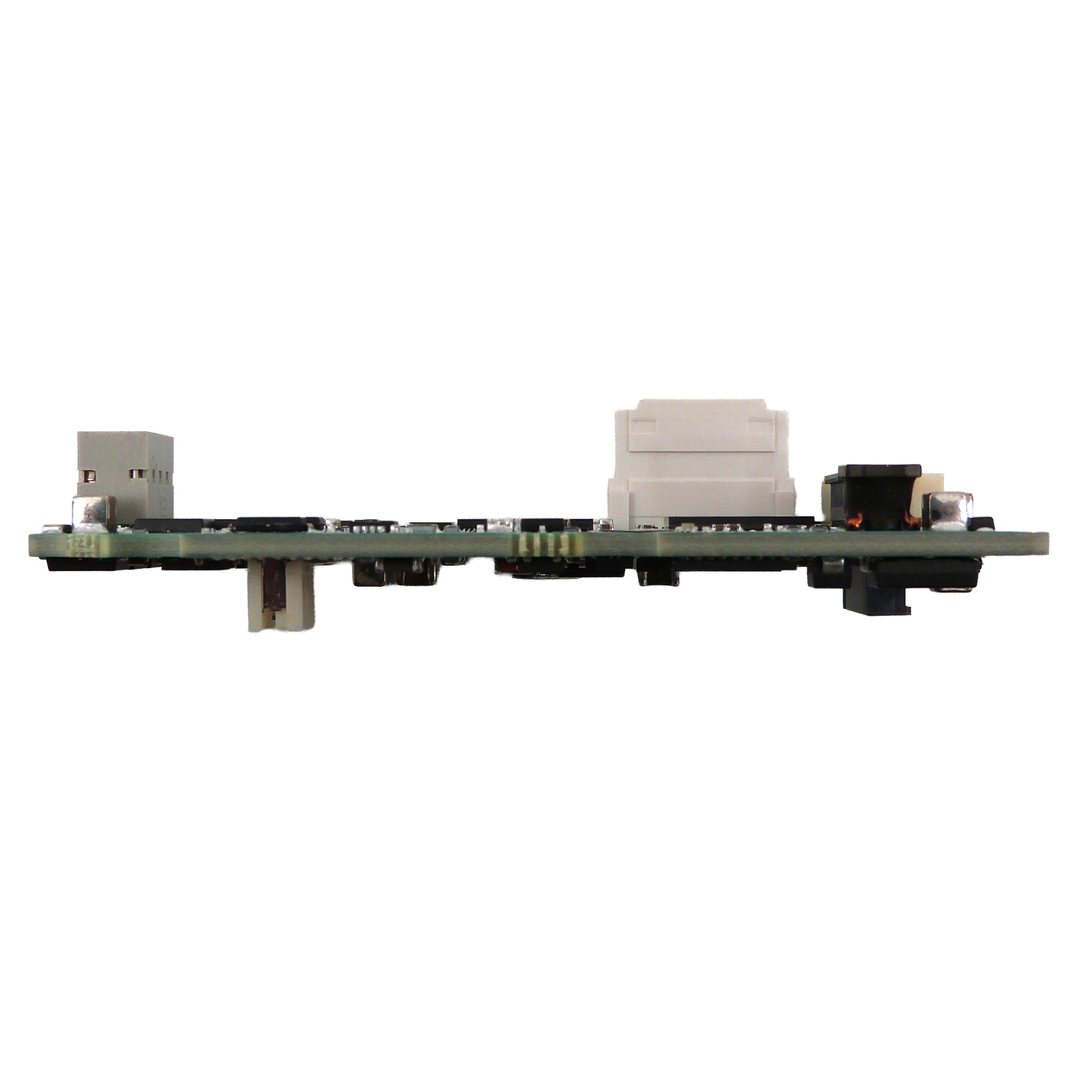

A Stepper Motor Controller with RS485 and CANbus serial interface, also including 6 different Industrial Ethernet protocols. 8IO can be configured to input, output or analog input. Can be controlled via nanoPLC and MacTalk. The very compact, 33.6x65.3mm, PCB contains everything needed to solve a modern control task as stand-alone or controlled from a PLC or PC. MODBUS RTU and CANopen gives the possibility for easy connection to a PLC. For PC or IPC an ActiveX/OCX driver is available so that interface to LABview, Excel, VB or other Windows-programs is simple.
 |
|
 |
 |
 |
 |
 |
|||||
Read more about a full integrated solution here.
| Partnumber | Current Amp RMS |
Application | M12 connectors | Bus communication | Photo |
| SMC67MONH56 | 0-6Amp |
PLC,Pulse/dir with closed-loop for own housing and connection |
No |
RS485 in / out Ethernet |
Coming soon |
| SMC67MONH56-STO | 0-6Amp |
PLC,Pulse/dir with closed-loop for own housing and connection Prepared for STO HW M8 connector. |
No |
RS485 in / out Ethernet |
Coming soon |
| SMC67B1-EPAABX1 | 0-6Amp |
PLC,Pulse/dir with closed-loop in a box with M12 connector |
Yes, 4 pcs. |
Profinet in/ out |
Coming soon |
| SMC67B1-ECAABX1 | 0-6Amp |
PLC,Pulse/dir with closed-loop in a box with M12 connector and STO M8 connector |
Yes, 4 pcs. + 1 pcs M8 |
EtherCAT in / out |
Coming soon |
RS485 and SSI for absolute multiturn encoder are available on all models.
Profinet, Ethernet IP, Ethercat, Powerlink, MODBUS TCP, also available
|
