Connector accessories for SMC66/67 PCB
The following equipment is to use with the Stepper Motor Controller SMC66 and SMC67, PCB version only:
| Partnumber | Description | |
| WG0830-12 |
M12 5pin Male P+ and CVI power wire 80mm |
 |
| WG08020 |
M12 connector with Flexcable 5Pin female and 8Pin Female M12. Length 60mm |
 |
| WF0821 |
M12 connector with flexcable 17Pin Female M12 and LED/Basic style |
 |
| MM4112 |
Mounting bracket and isolator for SMC66 |
 |
| RS485-M12-1-5-8 |
RS485 M12-8pin DSub, 5m, straight for ServoStep® MIS17x..43x Q5 and SMC66/85 Q5 |
 |
| CB0004 |
Motor connector 2x4 pin header length 6.7mm |
Cables:
| Partnumber | Description | |
| WI1000-M12F5T05N |
M12 Shl Cable 5m 5 pin Fem 0°, Power |
 |
| WI1046-M12M4T05TRJ45 |
M12 Cab D-code Ethernet M0°-RJ45, 5m |
 |

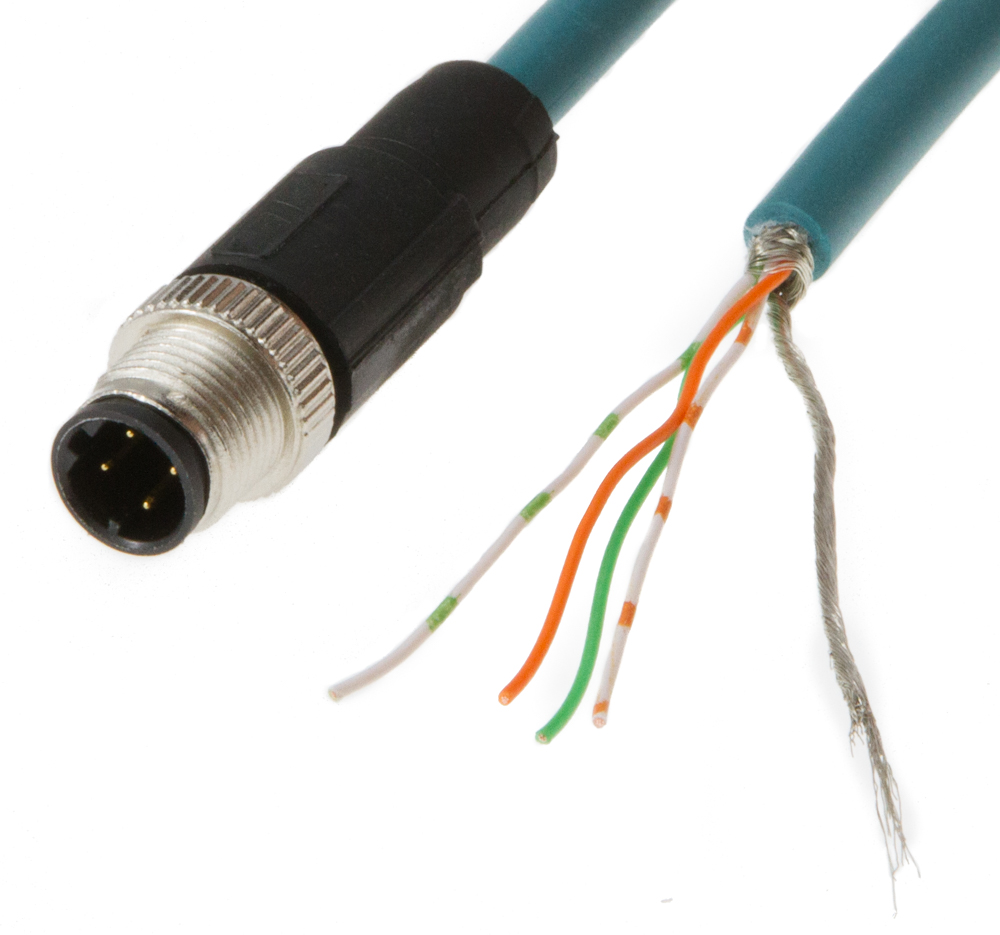

| WI1046-M12M4S05R |
M12 Cab D-code Ethernet M0°, SFTP, open ended, 5m |  |
| WI1009-M12M17T05N |
M12 Shl Cable 5m 17p Mal 0° twisted |
 |
| Below cables are to be used together with a JVL MSP motor | ||
| WI1012-M12F8TF8T05T | M12 encoder cable, shielded, straight, 5m | |

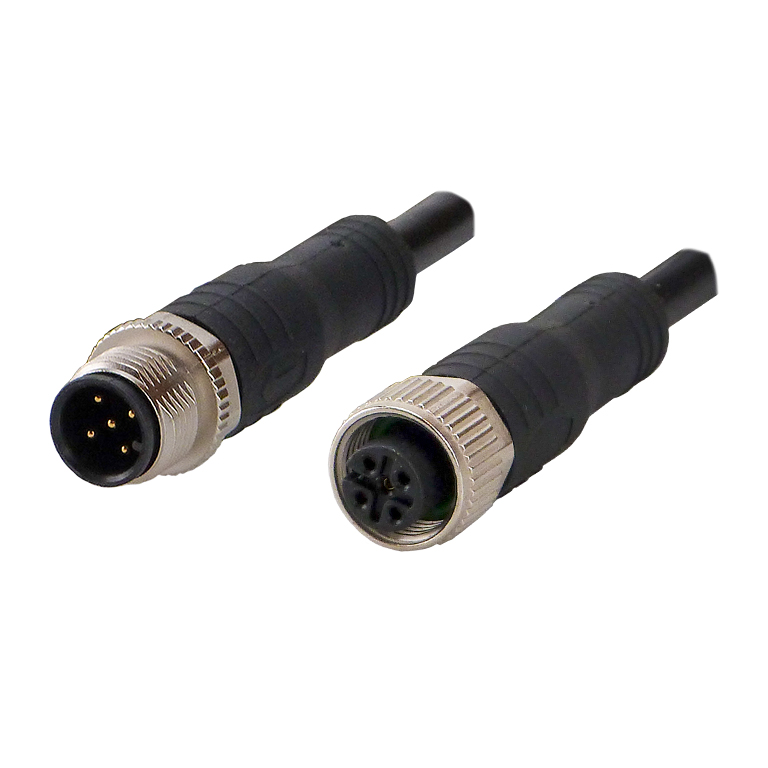

| WI1000-M12M5TF5T05N | M12 motor cable, shielded, straight, 5m |
 |
