MAC Motor, Integrated Servo Motors

0.11-0.48Nm/4000rpm.

1.3Nm/3000rpm.

2.4Nm/3000rpm .





  DETAILED MOTOR SELECTION CHART



  MORE MOTOR INFORMATION



  MAC MOTOR EXPANSION MODULES

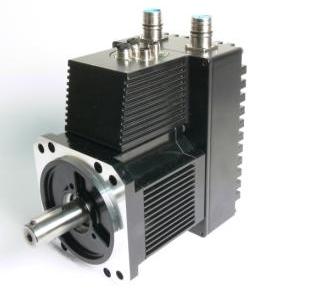

The MAC motor - the complete motion solution
Brushless servo motor with integrated controller
All necessary components in one unit

The basic idea in the MAC motors is to minimize the installation costs but also to make a component that is much better protected against electrical noise which can be a typical problem when using long cables between controller and motor.
The servomotor, hallsensor, encoder and electronics are specially developed by JVL so that they together form a closed unit where the power driver and controller is mounted inside the motor in a closed section.

The MAC motors can be delivered in sizes of 50 to 141W, the MAC050 to 141 range, 400W, the MAC400 motor and in a size of 750W, the MAC800 motor.

Adapt your motor to your application with Expansion Modules

The JVL MAC Integrated Servo Motors utilize the unique module concept. Plug-in expansion modules adapt the motor to the application. You can choose connector type: D-Sub, cable glands or M12 connectors and you can choose freely between Profibus, DeviceNet, CANopen or nano PLC control. A High Speed and wireless modules add to the selection.
This means that the MAC motor gives you possibilities no other motors on the market can provide. Also important,
you only pay for what you need. In addition, if you do not find the features you require, please contact us,
and we will develop your own customized module.



Motor and Expansion Module selection



Select your motor from the detailed motor selection chart

and then select motor group, MAC50-141, MAC400 or MAC800, on this page and get much more information for your selection.
