MAC Motor, Integrated Servo Motors

The MAC motor is a Brushless servo motor with integrated controller Integrated servomotor from world leader JVL.dk Smart integrated stepper motors with ingenious modular interface The MAC motor is a unique cost saving integrated servo motor
4000rpm.
3000rpm.
3000rpm.
3000rpm.
Order no.
Power
(Watt)
Torque
RMS/
Peak
(Nm)
Protec-
tion
Brake
46
92
134
134
0.11/0.32
0.22/0.62
0.32/0.9
0.48/1.59
Standard
IP42
Optional
External
Unique cost saving & better protected integrated servo motor by JVL
134
134
0.32/0.9
0.48/1.59
Water
Proof
IP67
Optional
External
High Torque Stepper Motors by danish JVL
134
0.32/0.9
Stainless
Steel
IP67
No
Devicenet module for integrated stepper motors
400
1.3/3.8
Splash
Proof
IP55
No
Steppermotor integrated is unique & cost saving
400
1.3/3.8
Splash
Proof
IP55
Yes
Built-in
Brushless servo motor from JVL MAC series
734
2.38/6.8
Splash
Proof
IP55
No
JVL industri elektronik is a market leader in intrgrated stepper motors
734
2.38/6.8
Water
Proof
IP66
No
The MAC motor is the complete solution with all necessary components in one unit
734
2.38/6.8
Splash
Proof
IP55
Yes
Built-in
Brushless servo motor with integrated controller
734
2.38/6.8
Water
proof
IP66
Yes
Built-in

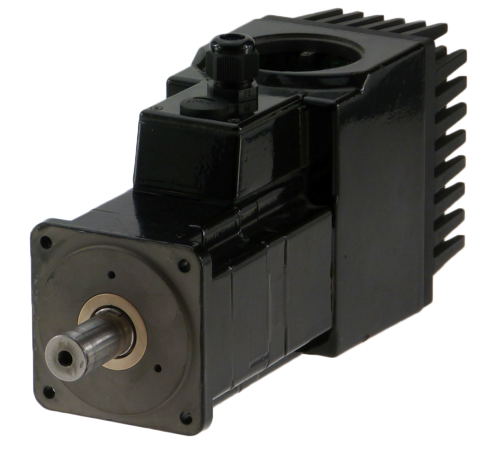

Water proff MAC800 build-in servo motors
1500
5.0/15.0
Splash
proof
IP55
No
MAC1500 Motor without built-in break
1500
5.0/15.0
Splash
proof
IP55
Yes
Built-in
MAC1500 Motor with built-in break

3000
9.55/28.7
Splash
proof
IP55
No
MAC3000 Motor without built-in break
3000
9.55/28.7
Splash
proof
IP55
Yes
Built-in
MAC3000 Motor with built-in break





The MAC motor - the complete motion solution
Brushless servo motor with integrated controller
all necessary components in one unit


The basic idea in the MAC motors is to minimize the installation costs but also to make a component that is much better protected against electrical noise which can be a typical problem when using long cables between controller and motor.
The servomotor, hallsensor, encoder and electronics are specially developed by JVL so that they together form a closed unit where the power driver and controller is mounted inside the motor in a closed section.
The MAC motors can be delivered in sizes of

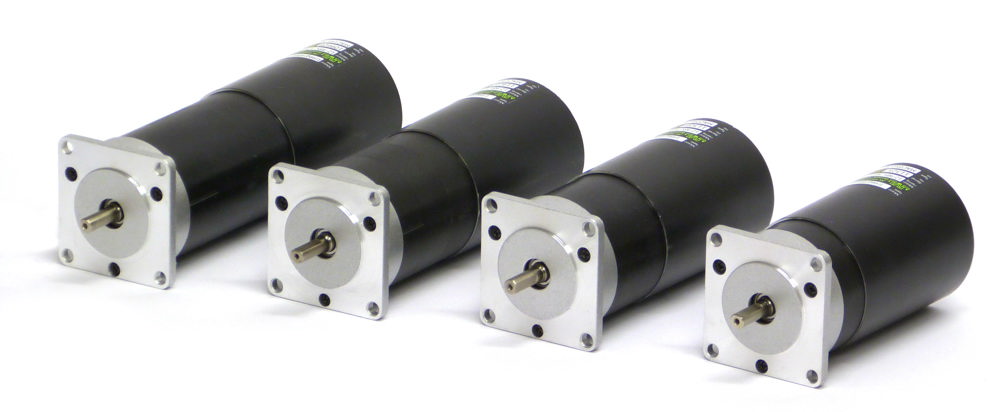

50 to 141W, the MAC050 to 141 range,
400W, the MAC400 motor,

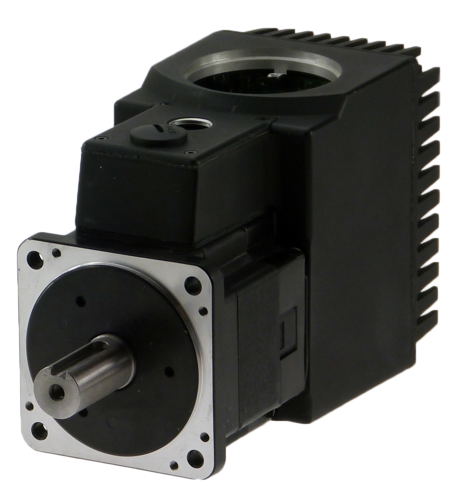

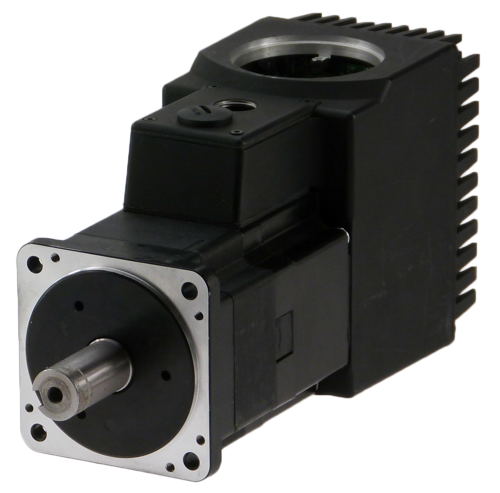

750W, the MAC800 motor,
and in a size of 1500-3000W, the MAC1500-3000 motor.


Adapt your motor to your application with Expansion Modules


The JVL MAC Integrated Servo Motors utilize the unique module concept. Plug-in expansion modules adapt the motor to the application. You can choose connector type: D-Sub, cable glands or M12 connectors and you can choose freely between Profibus, DeviceNet, CANopen, Ethernet or nano PLC control. A High Speed and wireless modules add to the selection.
This means that the MAC motor gives you possibilities no other motors on the market can provide. Also important,
you only pay for what you need. In addition, if you do not find the features you require, please contact us,
and we will develop your own customized module.

Motor and Expansion Module selection

Select your motor from the detailed motor selection chart
and then select motor group,
MAC50-141, MAC400, MAC800 or MAC1500-3000 on this page and get much more information for your selection.
