Hollow Rotary Actuator

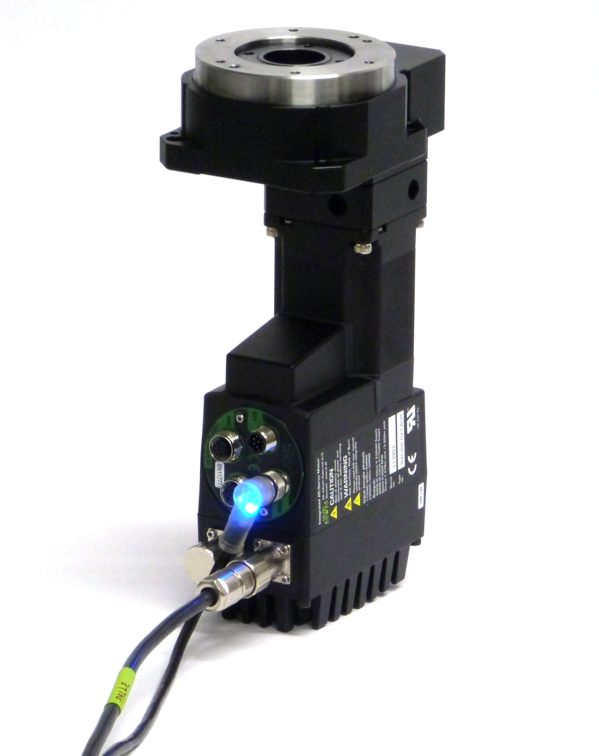

Our new series of Hollow Rotary Actuators, HDCT, offer the easiest possible installation of rotary table applications. Depending on your application you can choose between servo and stepper motors – with or without built-in (absolute) encoders.

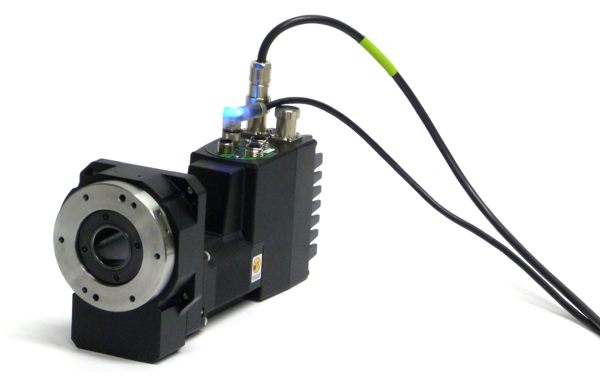

Mechanically they are ready to install – and mounting of rotating discs have never been easier. At the same time you gain the usual benefits of JVL’s integrated motors also making electrical installation child’s game.
  • Complete Rotary Actuator
  • Integrated Step or Servo motor
  • Easy point-n-click programming
  • All Ethernet protocols

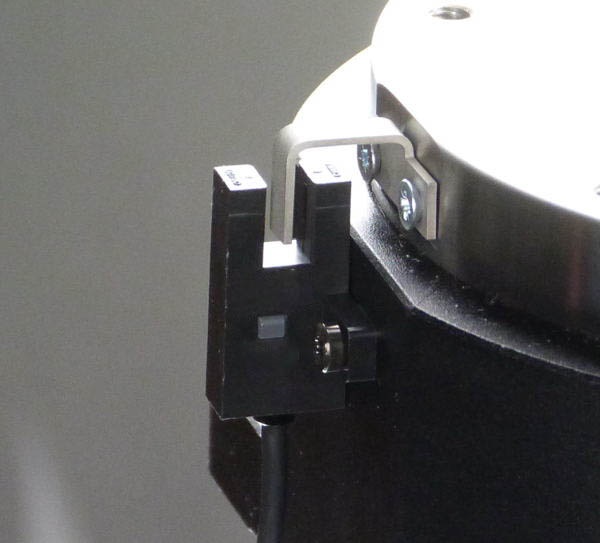

  • Option HDCT-SENSOR-KIT: Fork sensor and metal clamp (both for direct mounting onto the turn table) including small bolts. Used for Reference-signal (1 time per rev) or Home/Zero Search.
No need for space in your electrical cabinet: drive and control electronics are built-in.
















You can even choose to program the Actuators whereby they can run as stand-alone units. Should you prefer to run the actuator from a master PLC or controller choose between our large range of connectivity options, including all major Industrial Ethernet protocols.

For even more comfort we can provide you with a sensor-kit with all the parts you need for Home sensor signaling, to be mounted directly onto the actuator.

A full Hollow Rotary Actuator package consist of:

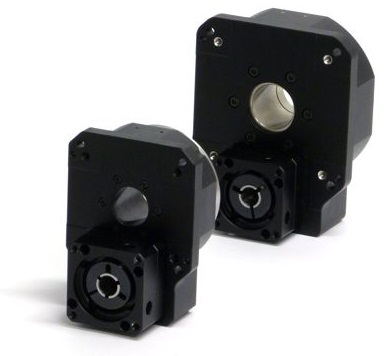

  1. Hollow Rotary Table, HDCT-100 or HDCT-130s
  2. Integrated Servo or Stepper motor, MAC140 or MIS231 or MAC400
  3. In case of servo a Control Module of your own choice
  4. The usual cables
  5. As option we can even offer a plug-n-play sensor kit for reference signal (Zero Search etc)




Hollow Rotary Actuators, HDCT
HDCT-100-N23
HDCT-100-M0400
HDCT-130-N23
HDCT-130-M0400
Recommended Motor
Flange and Shaft Ø
mm/mm
57x57 / Ø6,35
60x60 / Ø14
57x57 / Ø6,35
60x60 / Ø14
Nominal Output Torque
Nm
6,8
6,8
12
12
Input Speed Max.
RPM
3.600
3.000
3.600
3.000
Output Speed Max.
RPM
200
167
200
167
Gear Ratio

18:1
18:1
18:1
18:1
Gear Reducer Inertia
kgcm²
0,07
0,07
0,22
0,22
Output Table Inertia
kgcm²




Repetitive Positioning Accuracy
arcsec
±15
±15
±15
±15
Lost Motion
arcmin
3
3
3
3
Axial Load
N
150
150
200
200
Permissible Thrust Load
N
1.200
1.200
2.000
2.000
Permissible Moment Load
Nm
36
36
50
50
Runout of Output Table Surface
mm
±0,015
±0,015
±0,015
±0,015
Parallelism of Platform
mm
±0,03
±0,03
±0,03
±0,03
Weight w/o Motor
kg
4,0
4,0
4,6
4,6
Industrial Ethernet

MAC140: Yes.

MIS231: No, use instead SMC85 + MST23x
Yes
MAC140: Yes.

MIS231: No, use instead SMC85 + MST23x
Yes
Absolute Encoder option

No. Yes No Yes
Notes


MAC400 is too strong: reduce Torque to 29% Preferred Model.
Preferred Model.

MAC400 is too strong: reduce Torque to 50%


DETAILED
