Modular Closed-Loop Motion Control: MSP Stepper Motor + PA0260 Encoder + SMC66 Controller
PRESS release: June 2025
A flexible alternative to integrated motors – with the same performance and precision

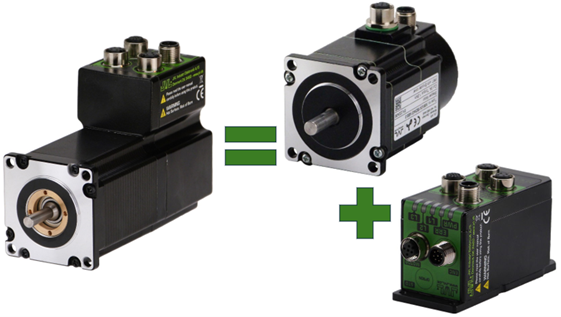

JVL Industri Elektronik A/S is proud to introduce a powerful modular motion control solution that combines the MSP stepper motor, the PA0260 magnetic encoder, and the SMC66 controller. Together, these components deliver a closed-loop system with the same high performance and reliability as our established ServoStep™ motors, while offering greater design flexibility and environmental adaptability.
Typical Applications – When Modularity Makes the Difference
This modular solution is ideal for applications where integrated motors are not feasible due to space, temperature, or system architecture constraints:
1. Space-Constrained Installations
In compact machines or embedded systems, the ability to separate the controller from the motor allows for more flexible mechanical layouts. The MSP motor’s small footprint and M12 connectors make it easy to install in tight spaces.
2. Extreme Temperature Environments
The PA0260 encoder operates reliably from –40°C to +105°C, making it suitable for:
- Outdoor installations exposed to freezing winters or hot summers
- Industrial ovens, freezers, or climate chambers
- Automotive or aerospace systems with wide thermal fluctuations
In such environments, integrated electronics may overheat or fail, whereas this modular setup allows the controller to be placed in a temperature-controlled cabinet, while the motor can be placed in the harsh environment.
3. Custom System Architectures
OEMs and machine builders benefit from the ability to:
- Choose motor size and torque independently
- Mount the controller remotely to reduce EMI or vibration exposure
- Upgrade or replace individual components without redesigning the entire system
A Scalable, Service-Friendly Alternative to Integrated Motors
This configuration offers the same closed-loop performance as our ServoStep™ motors, but with added flexibility for specialized applications. It’s a perfect fit for:
- Harsh industrial environments
- Packaging machines
- Laboratory automation
- Medical devices
- Robotics and pick-and-place systems
MSP Stepper Motor – Compact Power with Encoder Support
The MSP series is a range of compact stepper motors with integrated M12 connectors and support for external encoders. Key features include:
- NEMA 17, 23, 34 and 43 frame sizes
- Holding torque up to 25 Nm
- Optional IP65/IP67 protection for use in harsh environments
- M12 connectors for easy and secure cabling
- Designed for external encoder mounting for closed-loop operation with our SMC controllers
The MSP motor is ideal for applications requiring high torque in a compact form factor, and its robust design ensures long-term reliability in industrial settings.
PA0260 Encoder – High-Resolution Closed Loop Encoder with Absolute Multiturn capability
The PA0260 is a compact, robust magnetic encoder developed by JVL, designed specifically for integration with stepper motors. It offers:
- Resolution up to 65536 CPR (16-bit) for precise positioning
- Temperature range: –40°C to +105°C
- Magnetic sensing – resistant to dust, oil, and vibration
- Absolute Multiturn option
- IP67 protection for harsh environments
Its rugged design and wide temperature tolerance make it ideal for demanding applications where optical encoders would fail.
SMC66 Controller – Advanced Motion Control in a Compact Housing
The SMC66 is a powerful stepper motor controller with encoder feedback support, offering:
- Closed-loop control with encoder input
- Standalone or bus-controlled operation
- Built-in motion profiles (position, velocity, homing)
- Digital and analog I/O
- ePLC™ - Embedded PLC
- DIN rail mountable housing or PCB
The controller ensures smooth and accurate motion, even under variable loads or dynamic conditions.
Furthermore, the controller is now available in a low-cost IP42 version.
Furthermore, the controller is now available in a low-cost IP42 version.
Availability
The SMC and MSP combo is available now. See it in action at upcoming trade shows:
www.jvl.dk/doc/menu/68/jvl.
For more details or to explore how the Modular Closed-Loop system can enhance
your next project, visit www.jvl.dk/1151/stepper-with-encoder
Read more about JVL´s Integrated Stepper Motors here: MIS - Integrated Stepper Motor
Read more about JVL´s Integrated Servo Motors here: MAC - Integrated Servo Motor
Read more about JVL´s Integrated Stepper Motors - Linear actuators here: MIL - Integrated Stepper Motor Linear Actuator
For further information, please contact:
JVL A/S, Bregnerødvej 127, 3460 Birkerød, Denmark.
Tel. +45 4582 4440. E-mail: jvl@jvl.dk. Web:
www.jvl.dk
About JVL - JVL is a world leader within the development and production of efficient and compact integrated servo motors and integrated stepper motors. MAC motor® are a series of integrated brushless servo motors (up to 4500 W and 13.5 kW peak) and ServoStep™ are a series of integrated stepper motors (up to 25 Nm). Both motor series include motor, encoder, drive electronics, control electronics with ePLC™ and optional Ethernet integrated into one compact unit. All major industrial Ethernet protocols like Profinet, EtherNet/IP, EtherCAT, SERCOS, ModbusTCP/UDP and Powerlink are available.
Options include: absolute multiturn encoders, STO (safe torque off, SIL3) and brakes.
JVL has more than 35 years of motion control experience and are well known for their development and production of highly specialized integrated motors with industrial Ethernet and customized improvements. The close co-operation with customers and representatives result in cost-effective and technical optimized solutions for both basic and advanced motion control applications.
