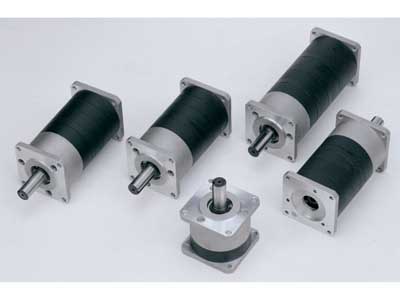

Low Cost Planetary Gears HMGH


Planetary gear for NEMA23 motors
(Obsolete use HSHG23)
The series of HMGH planetary gears are specially designed for JVL. With their NEMA23 standard flanges they can be directly mounted on the MAC 050 to 141 series of integrated motors as well as on a wide range of stepmotors. They also fit directly on the new integrated step motors, QuickStep.
Gears with other flanges can also be delivered from this series.
  • NEMA23 standard configuration on input and output flange.
  • All powder metal gears except adapter.
  • Operating temperature range: 0 - 40°C ambient.
  • Absolute max. 90°C.
  • Maximum input speed: 4000rpm.
  • Axial load 34kg max.
  • Radial load 34kg max. at 15.8mm from shaft end.
  • Very low losses.
  • High efficiency.
  • Low cost



Accessories Inner diameter [mm] Outer diameter [mm] Part number Photo
Bushing adapter sleeves for motor, brake, gear, actuator
5, 6.35, 8, 9.53, 10, 16 6.35, 8, 9.53, 10, 12, 14, 19 Read more here
