HTRGxx-N

HTRGxxN - Planetary gear:

Go to HTRG for MAC050-141 and MIS23x with NEMA23 and 6.35mm shaft

Go to HTRG for MIS23x ............... with NEMA23 and 10mm shaft

Go to HTRG for MIS340-343 ......... with NEMA34 with 9.52mm shaft

Go to HTRG for MIS340-343 ......... with NEMA34 and 14mm shaft

Go to HTRG for MAC400-402 ........ with 14mm shaft

Go to HTRG for MAC800-1200 ...... with 19mm shaft

Go to HTRG for MAC1500-4500 .... with 24mm shaft

Go to HTRG for Old HTRGxxNxxxB types

***************************************************************************************

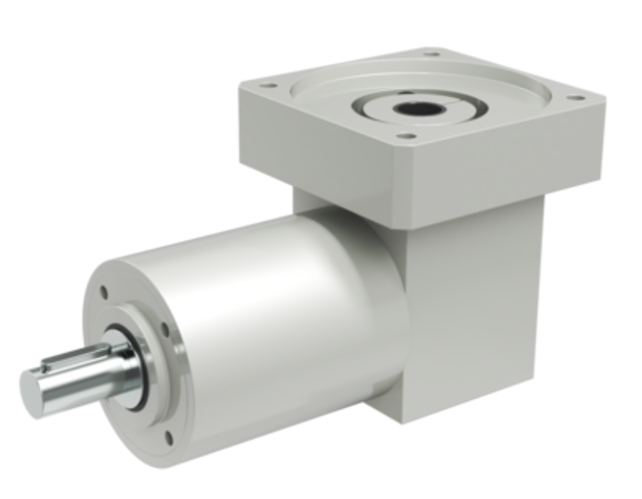

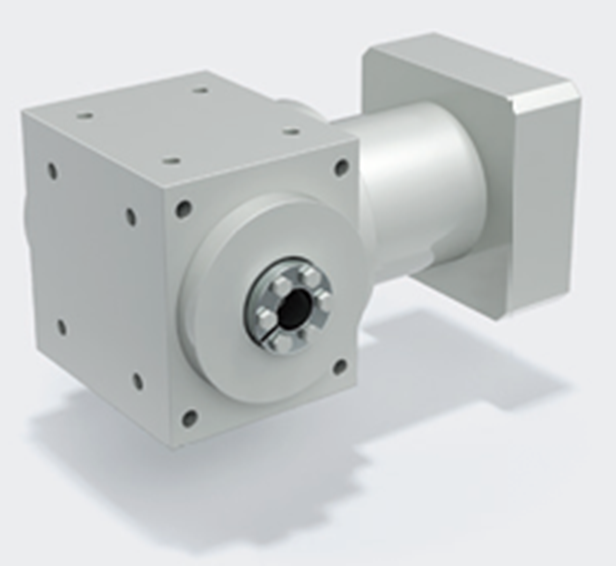

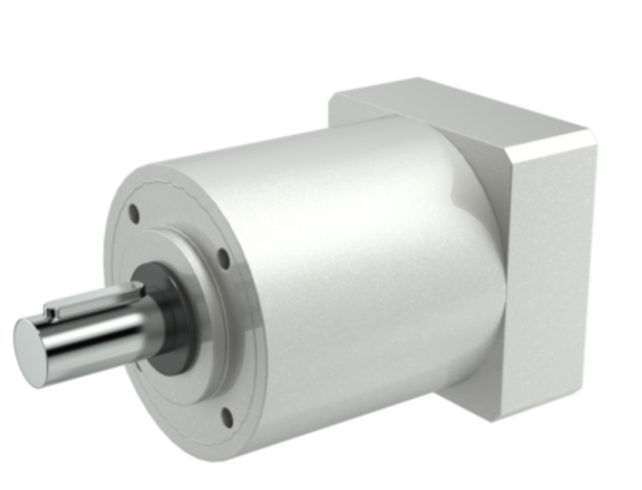

HTRG05N - 19N	HTRG05H - 06H, 08G - 19G	HTRG08M - 19M

***************************************************************************************

Ratios and stages possible:

	1. stage	2-stages	3. stages
HTRG05:	3,4,5,6,7,9	12,15,16,20,25,28,35,36,45,81	48,60,64,75,80.84,100,112,125,140,144,175, 180,216,225,245,252,324,405,567,729
HTRG06-HTRG190:	3,4,5,6,7,10	9,12,15,16,20,25,28,30,35,36, 40,50,70,100	48,64,75,80,84,90,120,125,140,150,160,175, 200,210,216,250,280,350,400,500,700,1000

For MIS23x Stepper and MAC050-141 motor with NEMA 23 and 6.35mm shaft:

Planetary precision gear HTRG05:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG05NxxxMHN23106J	1	STEP	PDF	PDF-Dim
HTRG05NxxxMHN23106J	2	STEP	PDF	PDF-Dim
HTRG05NxxxMHN23106J	3	STEP	PDF	PDF-Dim

Planetary precision gear HTRG06:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG06NxxxMHN23106J	1	STEP	PDF	PDF-dim
HTRG06NxxxMHN23106J	2	STEP	PDF	PDF-Dim
HTRG06NxxxMHN23106J	3	STEP	PDF	PDF-Dim

***************************************************************************************

For MIS23x Stepper motor with NEMA 23 and 10.0mm shaft:

Planetary precision gear HTRG05:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG05NxxxMHN23110M	1	STEP	PDF	PDF-Dim
HTRG05NxxxMHN23110M	2	STEP	PDF	PDF-Dim
HTRG05NxxxMHN23110M	3	STEP	PDF	PDF-Dim

Planetary precision gear HTRG06:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG06NxxxMHN23110M	1	STEP	PDF	PDF-Dim
HTRG06NxxxMHN23110M	2	STEP	PDF	PDF-Dim
HTRG06NxxxMHN23110M	3	STEP	PDF	PDF-Dim

***************************************************************************************

For MIS34x Stepper motor with NEMA 34 and 9.52mm shaft:

Planetary precision gear HTRG06:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG06NxxxMHN34109J	1	STEP	PDF	PDF-Dim
HTRG06NxxxMHN34109J	2	STEP	PDF	PDF-Dim
HTRG06NxxxMHN34109J	3	STEP	PDF	PDF-Dim

Planetary precision gear HTRG08:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG08NxxxMHN34109J	1	STEP	PDF	PDF-Dim
HTRG08NxxxMHN34109J	2	STEP	PDF	PDF-Dim
HTRG08NxxxMHN34109J	3	STEP	PDF	PDF-Dim

***************************************************************************************

For MIS34x Stepper motor with NEMA 34 and 14mm shaft:

Planetary precision gear HTRG08:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG08NxxxMHN34x14M	1	STEP	PDF	PDF-Dim
HTRG08NxxxMHN34x14M	2	STEP	PDF	PDF-Dim
HTRG08NxxxMHN34x14M	3	STEP	PDF	PDF-Dim

Planetary precision gear HTRG10:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG10NxxxMHN34x14M (Special)	1	STEP	PDF	PDF-Dim
HTRG10NxxxMHN34x14M (Special)	2	STEP	PDF	PDF-Dim
HTRG10NxxxMHN34x14M (Special)	3	STEP	PDF	PDF-Dim

***************************************************************************************

For MAC400 - 402 with 14mm shaft:

Planetary precision gear HTRG06:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG06NxxxMH050114M	1	STEP	PDF	PDF-dim
HTRG06NxxxMH050114M	2	STEP	PDF	PDF-dim
HTRG06NxxxMH050114M	3	STEP	PDF	PDF-dim

Planetary precision gear HTRG08:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG08NxxxMH050114M	1	STEP	PDF	PDF-dim
HTRG08NxxxMH050114M	2	STEP	PDF	PDF-dim
HTRG08NxxxMH050114M	3	STEP	PDF	PDF-dim

Planetary precision gear HTRG10:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG10NxxxMH050114M ( Special )	1	STEP	PDF	PDF-dim
HTRG10NxxxMH050114M ( Special )	2	STEP	PDF	PDF-dim
HTRG10NxxxMH050114M ( Special )	3	STEP	PDF	PDF-dim

Planetary precision gear HTRG19:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG19NxxxMH050114M ( Special )	1	STEP	PDF	PDF-dim
HTRG19NxxxMH050114M ( Special )	2	STEP	PDF	PDF-dim
HTRG19NxxxMH050114M ( Special )	3	STEP	PDF	PDF-dim

***********************************************************************

For MAC800 - 1200 with 19mm shaft:

Planetary precision gear HTRG08:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG08NxxxMHP70119M	1	STEP	PDF	PDF-dim
HTRG08NxxxMHP70119M	2	STEP	PDF	PDF-dim
HTRG08NxxxMHP70119M	3	STEP	PDF	PDF-dim

Planetary precision gear HTRG10:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG10NxxxMHP70119M	1	STEP	PDF	PDF-dim
HTRG10NxxxMHP70119M	2	STEP	PDF	PDF-dim
HTRG10NxxxMHP70119M	3	STEP	PDF	PDF-dim

Planetary precision gear HTRG13:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG13NxxxMHP70119M (Special)	1	STEP	PDF	PDF-dim
HTRG13NxxxMHP70119M (Special)	2	STEP	PDF	PDF-dim

***********************************************************************

For MAC1500 to MAC4500 with 24mm shaft:

Planetary precision gear HTRG10:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG10NxxxMHS40224M	1	STEP	PDF	PDF-dim
HTRG10NxxxMHS40224M	2	STEP	PDF	PDF-dim
HTRG10NxxxMHS40224M	3	STEP	PDF	PDF-dim

Planetary precision gear HTRG13:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG13NxxxMHS40224M	1	STEP	PDF	PDF-dim
HTRG13NxxxMHS40224M	2	STEP	PDF	PDF-dim
HTRG13NxxxMHS40224M	3	STEP	PDF	PDF-dim

Planetary precision gear HTRG16:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG16NxxxMHS40224M	1	STEP	PDF	PDF-dim
HTRG16NxxxMHS40224M	2	STEP	PDF	PDF-dim
HTRG16NxxxMHS40224M	3	STEP	PDF	PDF-dim

Planetary precision gear HTRG19:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG19NxxxMHS40224M	1	STEP	PDF	PDF-dim
HTRG19NxxxMHS40224M	2	STEP	PDF	PDF-dim
HTRG19NxxxMHS40224M	3	STEP	PDF	PDF-dim

***************************************************************************************

For old HTRG gear types.

Planetary precision gear HTRGxxNxxxB:

JVL partno.	Stage	3D (STEP)	PDFl	PDF-dim
HTRG05NxxxMHN23106J	1	STEP	PDF	PDF-Dim
