New Planetary Gears for NEMA17 motors
PRESS release: June 2021
Birkerød, Denmark - JVL A/S, one of the world’s leading producers in the field of integrated servo and stepper motors, is announcing a new line of products: NEMA17 planetary gears for usage with MAC motor® and ServoStep® integrated motors, as well as other servo and stepper motors on the market in size NEMA 17. This new series HSHG17 are replacing the older HMGH17 series.

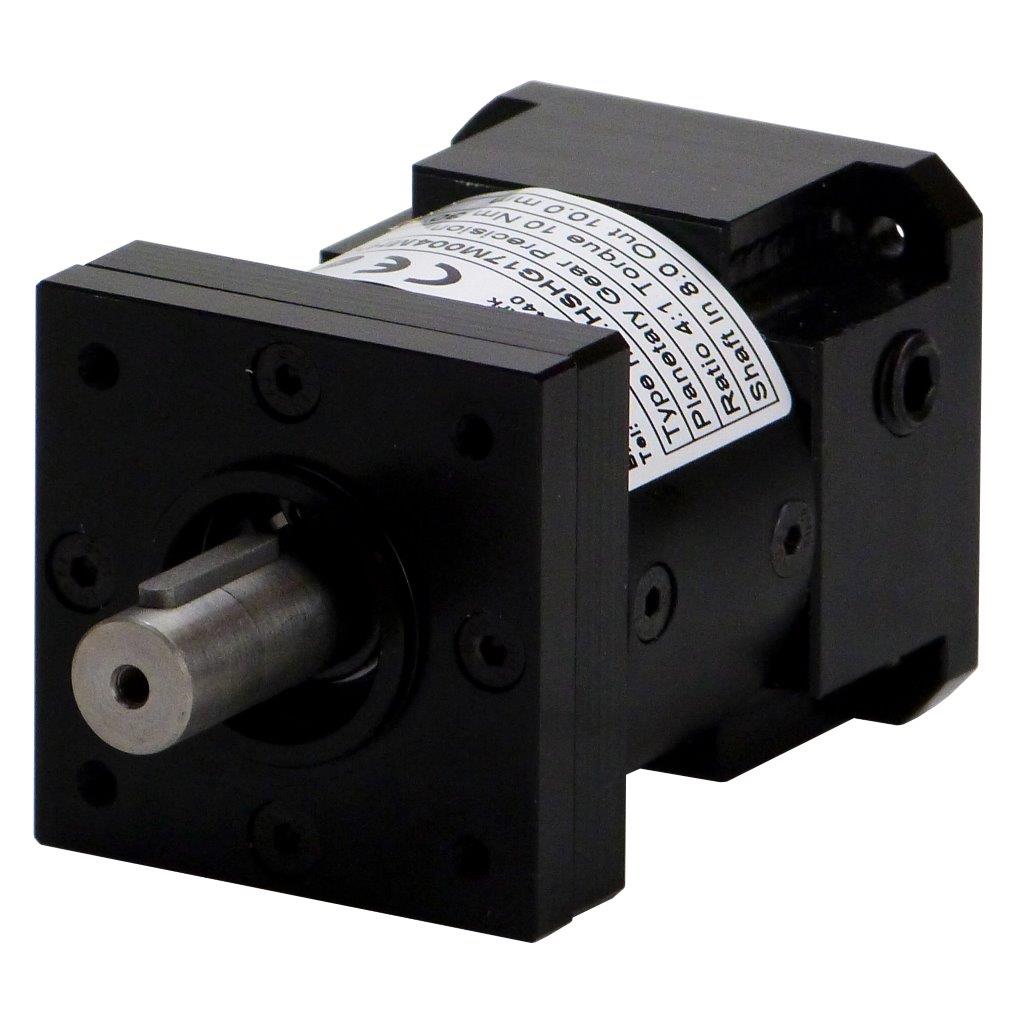

HSHG17 Planetary Gears
Our new series of planetary gears, HSHG17, offer easy connection for different applications.
Depending on your application we can supply both servo and stepper motors – with or without built-in (absolute) encoders.
Mechanically they are ready to install on motors with 5, 6.35 or 8 mm shaft. At the same time you gain the usual benefits of JVL’s integrated motors also making electrical installation easy.
Depending on your application we can supply both servo and stepper motors – with or without built-in (absolute) encoders.
Mechanically they are ready to install on motors with 5, 6.35 or 8 mm shaft. At the same time you gain the usual benefits of JVL’s integrated motors also making electrical installation easy.
Highlights
- Complete planetary gear boxes
- Can replace HMGH17 directly and is shorter
- Option: Integrated Stepper or Servo motor
- Easy point-n-click programming using MacTalk® software
- All Ethernet protocols
- No need for space in your electrical cabinet: drive and control electronics are built-in using MAC motor® or ServoStep®)
You can even choose to program the motor and gear whereby they can run as stand-alone units. Should you prefer to run the actuator from a master PLC or controller, then choose between our large range of connectivity options including all major Industrial Ethernet protocols. For even more comfort we can provide you with a sensor-kit with all the parts you need for Home sensor signaling, to be mounted directly onto the actuator.
Technical specifications
- Rated torque: 5 to 12 Nm
- Input Flange Size: NEMA17 (42x42 mm)
- Output Flange Size: NEMA17
- Output Shaft: Ø10 mm with Key
- Position accuracy: ±30 arcmin
- Gear ratios: 4, 8 and 20:1
- Protection: IP42
Read more about the gear boxes here: HSGH17 Planetary Gearboxes.
Read more about the gear boxes for NEMA23 motors here: HSHG23 Planetary Gearboxes.
Read more about JVL's NEMA17 Integrated Stepper Motors here: MIS17
Read more about JVL's NEMA17 Non-Integrated Stepper Motors here: MST17
