| MIS232S66.. Hollow + pin (with STO optional) |
|
 |
 |
| To be built into a linear actuator using your own or a JVL HBWE spindle, spindle not reattachable. Available scew type: Rolled ball screw ø12 mm, Lead: 2/5/10 mm/rev, Various length up to 3 meter |
For 3D CAD Drawing click here. |
| MIS232S67.. Hollow + Clamp (with STO optional) |
|
 |
 |
| To be built into a linear actuator using your own or a JVL HBWE spindle, spindle is reattachable |
For 3D CAD Drawing click here. |

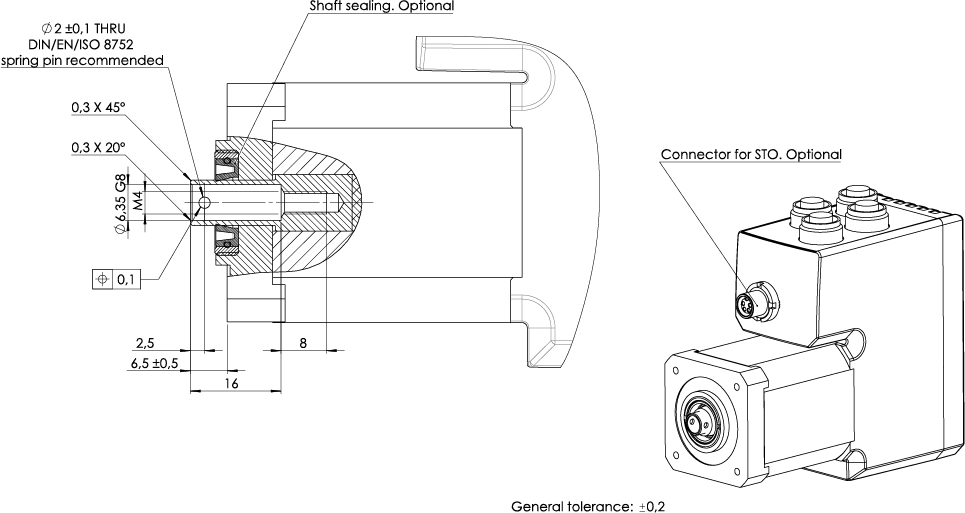

| MIS176S59.. Hollow + pin |
|
 |
 |
|
Available screw types: Lead screw + Brass trapeze nut ø10 mm, Lead: 2 mm/rev,
Rolled ball screw ø8 mm, Lead: 2.5 mm/rev. Various length up to 3 meter. |
|
| MIS340C31 with Hollow shaft, also available for MIS341 |
|
 |
 |

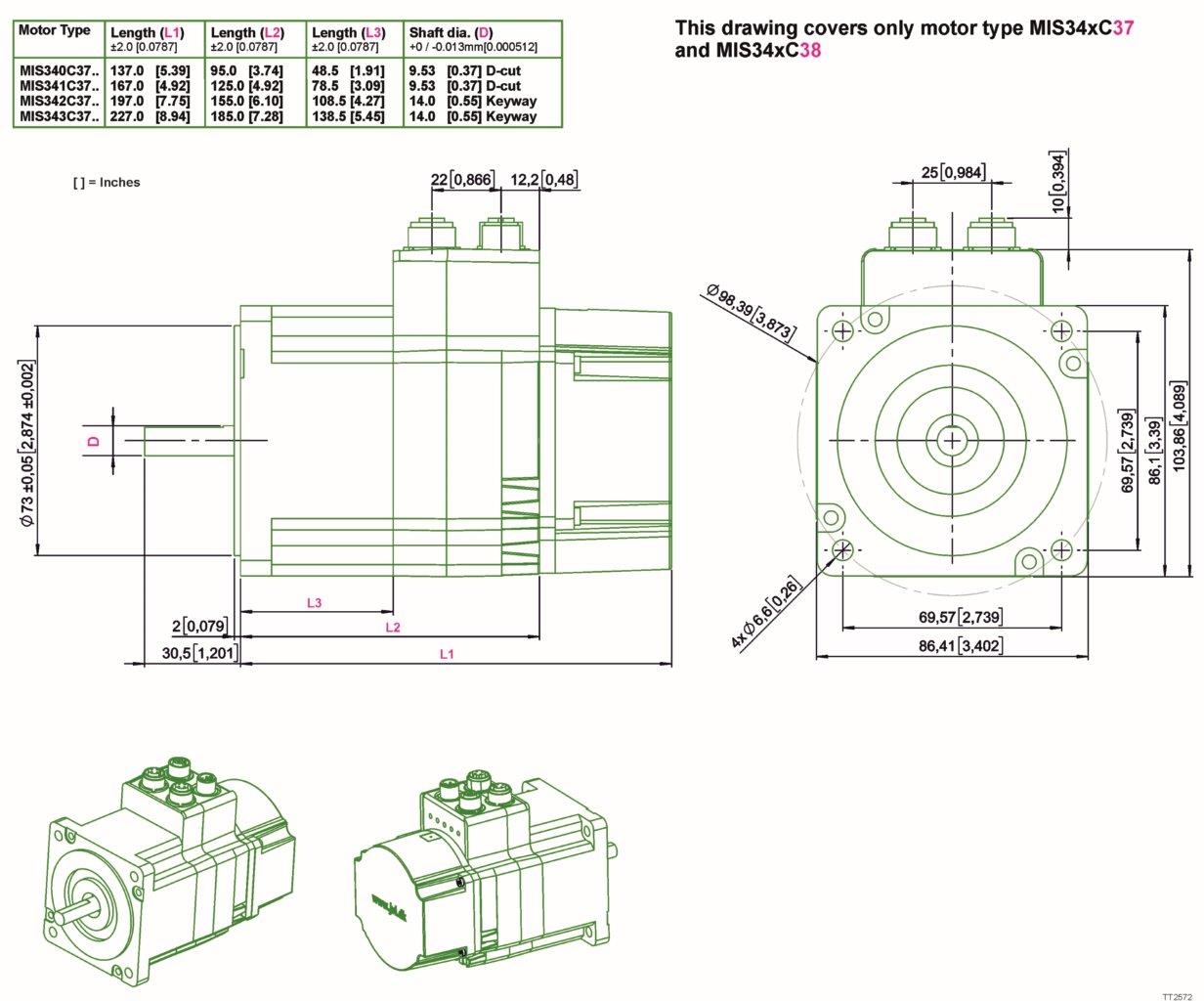

| MIS34xC37 with rear mounted brake + cover, also available as IP65 (MIS34xC38..) STO optional |
|
 |
 |
| Also available without cover (MIS34xC36..) |
|
| MIS232T14 with ø14mm shaft and keyway |
|
 |
|
| MIS23x 2nd generation (MIS23xQ/R/S/T) with ø8mm rear shaft |
|
 |
 |
| Rear mounted brake with cover (MIS23xxC6) |
Free rear shaft (MIS23xx51) |
For information about the product click here.
