DEMO_MIS340
|

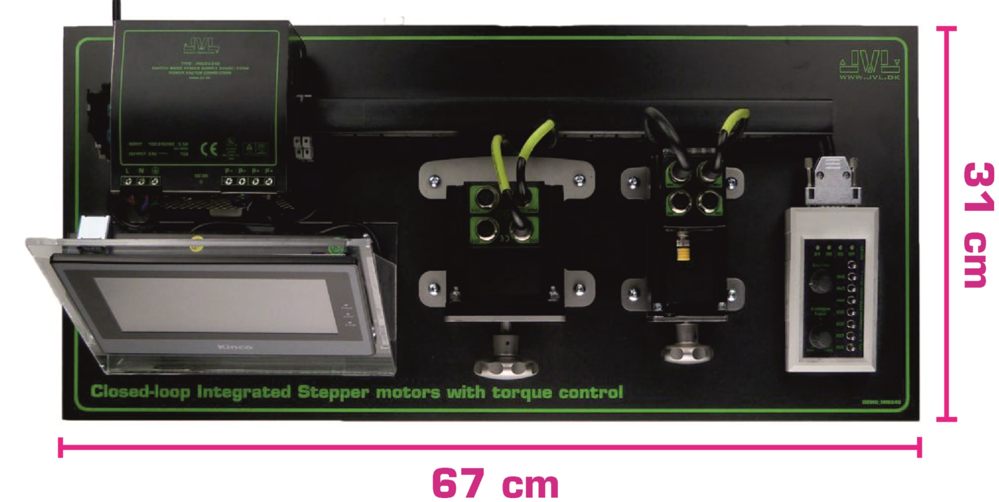

DEMO_MIS340, easy plug and play solution for showcasing various scenarios with or without closed-loop.
Plug the power cord into a 230 VAC type K socket (Danish wall socket) and the Demo is good to go.
MIS23 and PA0160 program overview:
IN1: Velocity mode 100 RPM closed-loop, adjust Torque using Analogue Input.
IN2: Velocity mode 100 RPM open-loop, adjust Torque using Analogue Input
IN3: Torque search with 5 RPM, change direction by applying load
IN4: Gear mode closed-loop. Encoder Input controls motor, Analogue Input determines gear ratio.
IN5: Motor running back and forth 100 RPM closed-loop
|
|
||
 |
|||
HMI and MIS34 showcase how easy a JVL motor can be controlled using a HMI.
Motors and accessories used in this Demo: MIS340, MIS232S, PA0160, PSU48-240, MM9028 (Steel stand for MIS23), MM9100 (Steel stand for MIS34), MM0020-040-8M-6.35 (Hand wheel for MIS23), MM0020-060-12.0-9.53 (Hand wheel for MIS34), HMI-4414T.

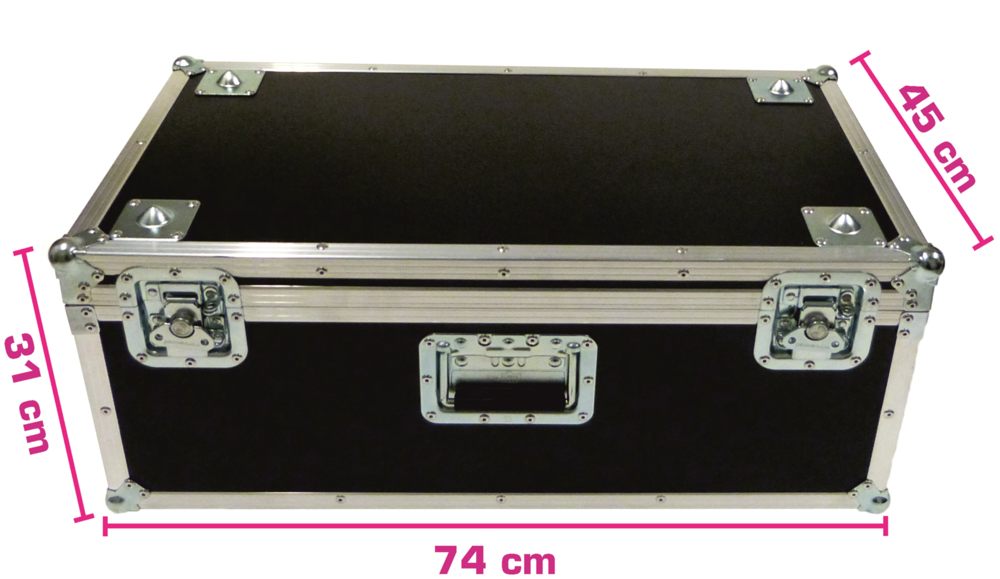

Weight of case without content is 9,5 Kg.
