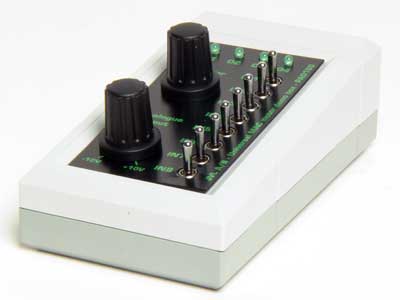

Test Box PA0160-24 for MAC and QuickStep motors

The Test Box PA0160-24 is designed to test set-ups with Integrated MAC ac servo motors and Integrated MIS QuickStep stepper motors.
The Test Box includes possibility for IO encoder simulation and an analog input which can be used to simulate the IO´s of the machine. A variety of special cables are available for connection of the DSUB connector on the test box to MAC motors with various modules and to the QuickStep motors.
The test box has 8DI + 4DO, offers encoder emulation and an analog potmeter. Using it with MIS23x QuickStep motors, 5DI are available. (Encoder emulation takes 2 IO and the potmeter takes 1 IO)

The 8 switches on the PA0160-24 for input signals can be activated either as a switch or as a push button depending whether they are activated to the left or the right. In the middle they are neutral.
