Order no. |
Max
Current
(A) |
Torque
Holding/Running
(Nm) |
Protec-
tion
(Optional) |
|
|
|
Integrated Stepper Motors
|
|
|
4
4
4
|
0.15
0.26
0.80
|
Standard IP42 (IP65)
|
ServoStep
Ethernet
PLC 8IOA |
|
|
|
6
6
6 |
0.97
1.97
3.08 |
Standard IP42 (IP65)
|
ServoStep
Ethernet
PLC 8IOA |
|
|
|
6
6
|
1.16
2.53
|
Standard
IP42 (IP65)
|
ServoStep
Ethernet
PLC 8IOA |
|
MIS231A
MIS232A/K
MIS234A |
3
3
3 |
1.3/1.1
1.8/1.6
3.0/2.9 |
Standard
IP42
(IP65) |
RS485
CANOpen
PLC 8IOA
|
|
MIS340C
MIS341C
MIS342C |
9
9
9 |
3.0/2.5
6.1/5.1
9.0/7.2 |
Standard
IP42
(IP65) |
ServoStep
Ethernet
PLC 8IOA |
|
MIS430C
MIS432C |
9
9 |
10.0
25.0 |
Standard
IP42 |
ServoStep
Ethernet
PLC 8IOA |
|
|
Stepper Motor Controller |
| SMC75xxMx |
3 |
MIS23xA/K
|
Standard
IP42 |
RS485
CANOpen
PLC 8IOA Housing
|
|
| SMC75xx |
3 |
MIS23xA/K
|
IP00 Open board
|
RS485
CANOpen PLC 8IOA
|
 |
|
SMC66xx |
6 |
MIS17xQ/R/S/T MIS23xQ/R/S/T
|
Standard
IP42
(IP65) |
ServoStep
Ethernet
PLC 8IOA
Housing
|
|
| SMC66xx |
6 |
MIS17xQ/R/S/T MIS23xQ/R/S/T
|
IP00 Open board
|
ServoStep
Ethernet
PLC 8IOA |
|
|
SMC85xxMx |
9 |
MIS34xC MIS43xC
|
Standard
IP42
(IP65) |
ServoStep
Ethernet
PLC 8IOA
Housing
|
|
| SMC85xx |
9 |
MIS34xC MIS43xC
|
IP00 Open board
|
ServoStep
Ethernet
PLC 8IOA |
|
|
|

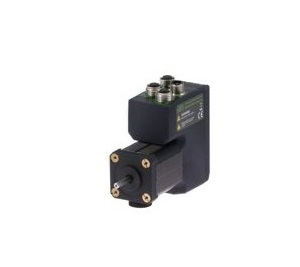

The ServoStep integrated motor - the complete motion solution Stepper motor with integrated controller. All necessary components in one unit that work like a servomotor
The basic idea in the ServoStep MIS motors is to minimize the installation costs but also to integrate all components in a motion control system. The stepper motor, driver, controller, hall-sensor, encoder incremental or absolute, PLC, CAN, RS485 and industrial Ethernet are specially developed by JVL and mounted inside motor. The motor is developed to work in harsh condition and withstand vibration, dust, liquids, electrical noise and high temperature
Adapt your motor to your application
The JVL MIS Integrated Servo Motors can be delivered with different connectors M12, M23 and others depending of the application. Choose between different fieldbus, industrial Ethernet and used interface pulse input/output.
Standard in all motors:
Closed loop
Torque control
PLC 8IOA 5-24V
RS485 & SSI
Pulse/direction
RS422 encoder IO
409600 step/rev
Encoder absolute
Optional:
CANopen
Profinet , Ethernet/IP
Modbus TCP/IP, Powerlink
EtherCat, SercosIII
Absolute multiturn encoder
Brake /double shaft
STO connector
Ultra high torque
IP67
Read more in the Quickstep brochure or click on the pictures for more information.
Notice MIS23xA/K have limited functions.
|
