Special protective coating and potting of PCB and motor
JVL can optional offer different kind of motor, PCB and components protection for extreme and harsh application. Extreme application demand often special protection and JVL can optional for OEM projects offer this service.
Supplier datasheets and photos can be found in the table below.
| Safety- datasheet |
Description and Applications |
|||
|
(PCB surface and Electronics)
|
KE7001/KE7003 |
|
3M™ Novec™ 1700 Electronic Grade Coating is a clear, low viscosity, low surface tension solution of a fluorochemical acrylic polymer carried in a hydrofluoroether solvent. Designed for moisture and corrosion protection of printed circuit boards and electronic components, it dries to a thin, transparent, film with excellent hydrophobic and oleophobic properties. It is easy to apply, does not need post-curing, is removable and repairable. It is non-flammable, low in toxicity, non-ozone depleting and RoHS compliant. | Photo link |
|
(PCB surface and Electronics)
|
KE7005 |
Link | PLASTIK 70 was specially developed to protect printed circuit boards. It overcomes electrical leakages and short circuits. As a low viscosity fixing and insulating lacquer, PLASTIK 70 can also be used as extra/after insulation of coils and transformers and overcomes disturbing noises. PLASTIK 70 can also be used as a universal protective coating on any surface like metal, paper, ornaments, paintings, furniture, etc. | Photo link |
|
(PCB and electronics)
|
KE1005 |
|
||
|
(PCB and electronics)
|
KE1004 |
|
||
| KE7002 |
Link |

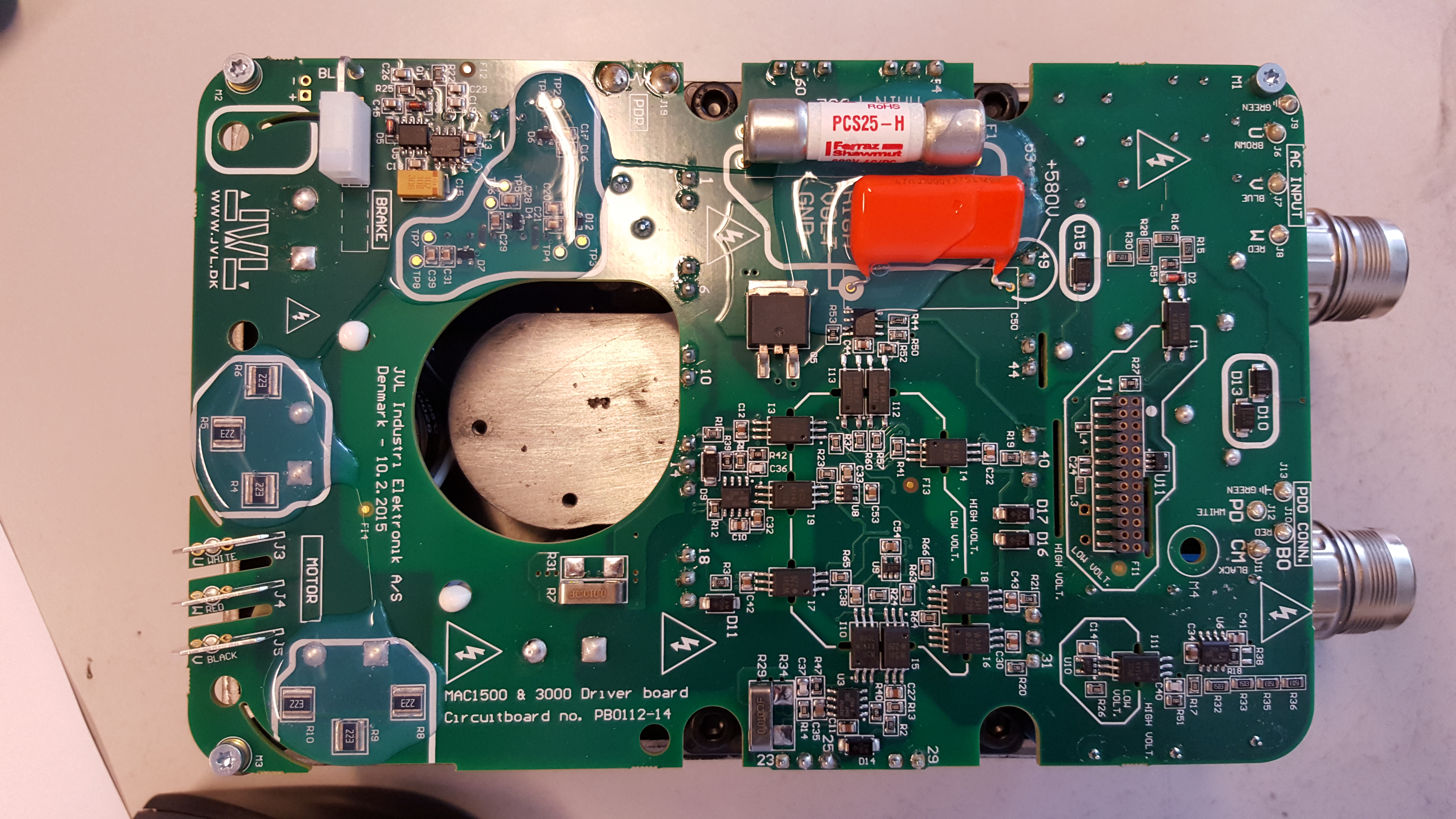

DOW CORNING® 3140 RTV COATING
One-part, translucent adhesive or coating with good flowability, good flame resistance, UL, IPC and Mil Spec tested. Good flowability - Room temperature cure - No added solvents - UL 94 V-1, IPC-CC-830 and MIL-A-46146 tested - No mixing required - Room temperature cure, no ovens required - Faster in-line processing with optional heat acceleration - Able to flow, fill or self-leveling after dispensing. |
Photo link |
|

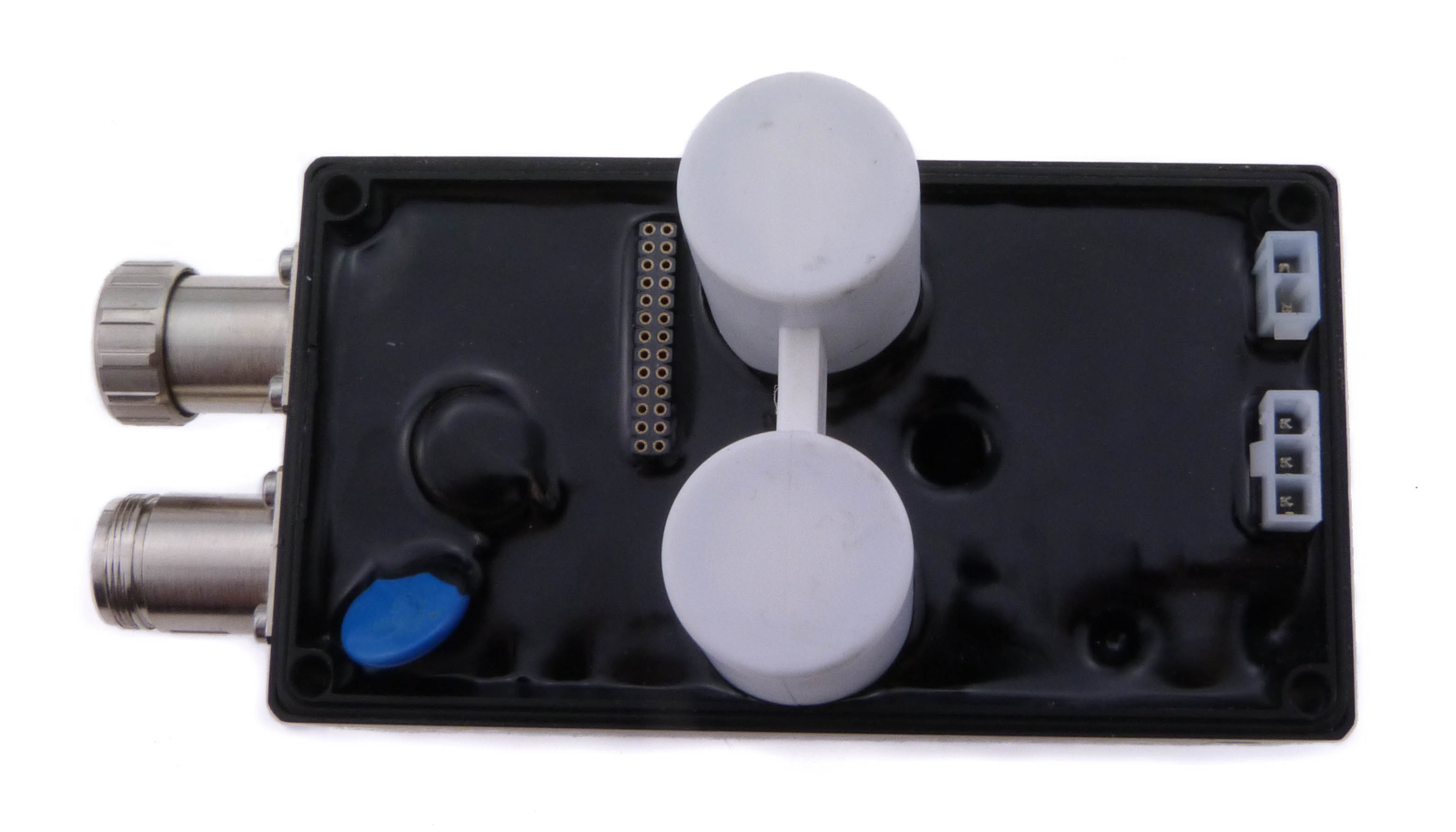

| Polyurethane potting (for electronics) |
Supplier |
Link | Polyurethane Potting | Photo link |
| Painter |
Link | Good resistance to chemical and atmospheric attack. | Photo link |
|
| Epoxy primer (Motor surface) |
Painter |
Link | Good resistance against mechanical damage, solvents, chemicals & oils. | |
| Hammerite Satin Black |
KE7006 |
|
Paint for repair and extra sealant |
Photo link |

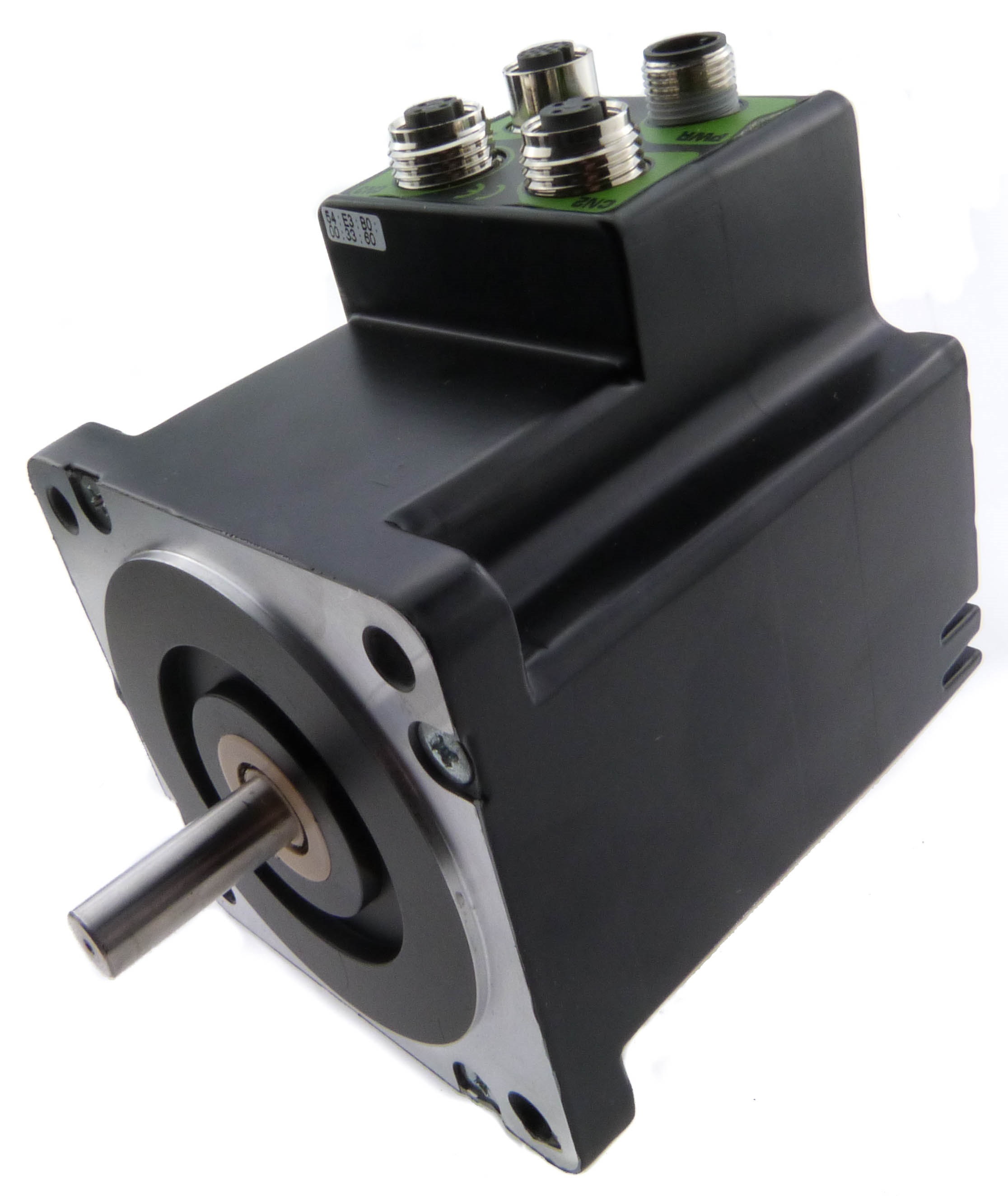

MIS34x, MAC400 , MAC050 to 141-A3 that are IP65 or IP67 and other motors are first painted with a primer and thereafter epoxy painting.
We offer silicone free versions of the MAC motors series
|
Novec1700 |
Plastik70 |
Permabond |
Silicone |
Potting |
Painting |
|
|---|---|---|---|---|---|---|
| SMD73 | x |
x | ||||

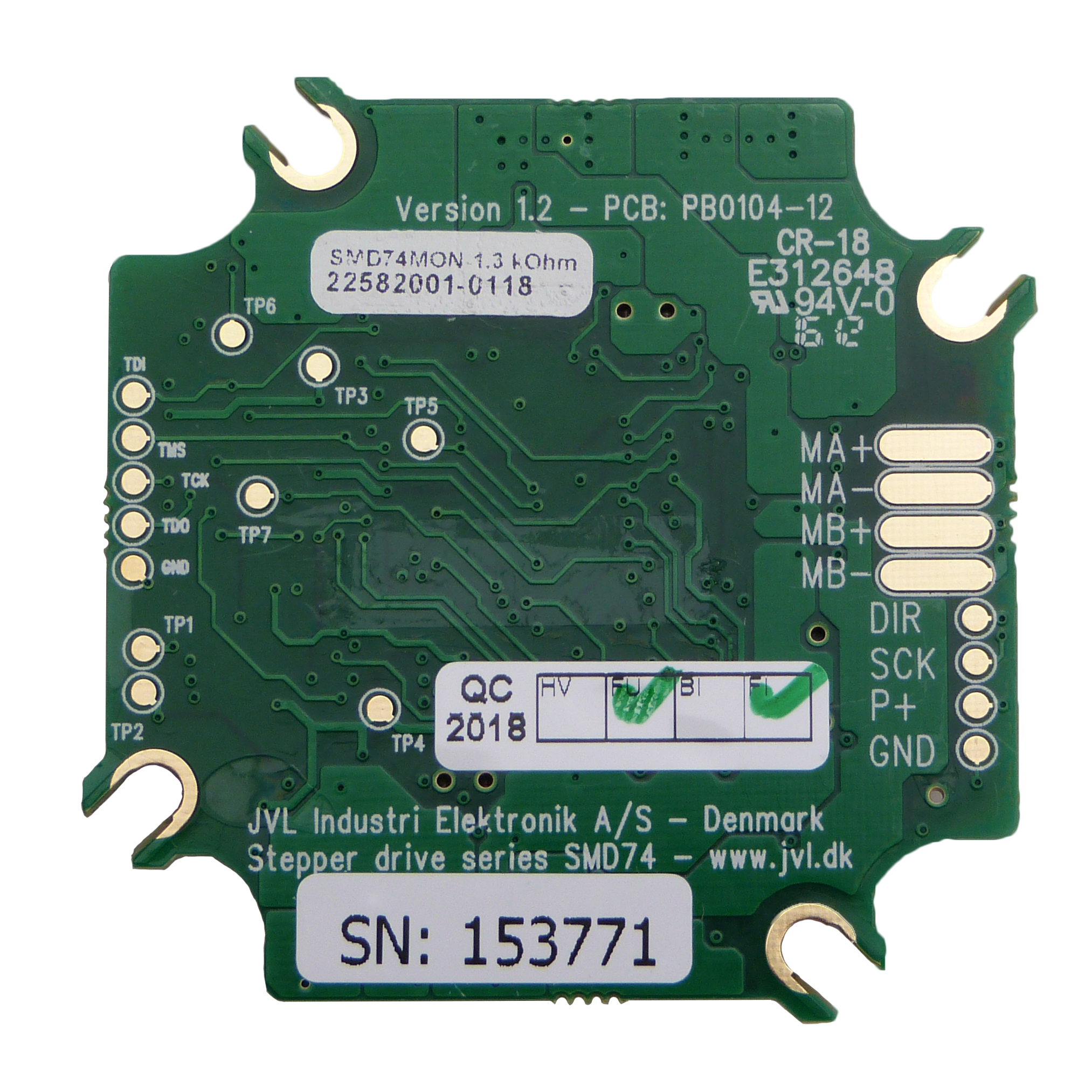

| SMD74 | x |
x | ||||
| SMC75 | x | |||||
| SMC85 | x | |||||
| MAC050 -141 |
x | x | ||||
| MAC400 | x | x | x | |||
| MAC402 | x | |||||
| MAC800 | x | x | ||||
| MAC1200 | x | x | ||||
| MAC1500 -3000 |
x | x | ||||
| MIS17x | x | |||||
| MIS23x | x | |||||
| MIS34x | x | x | ||||
| MIS43x | x |
