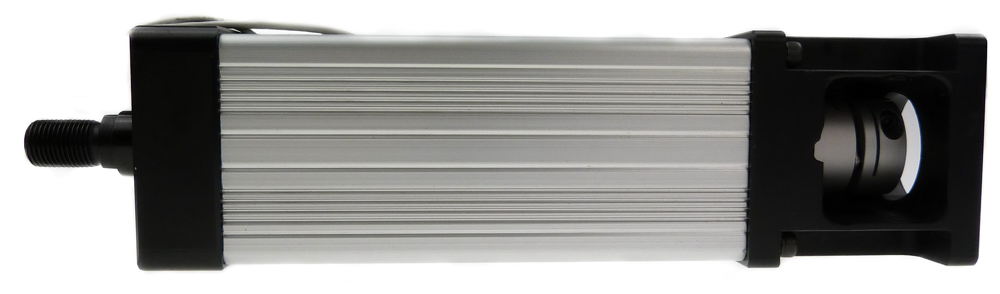

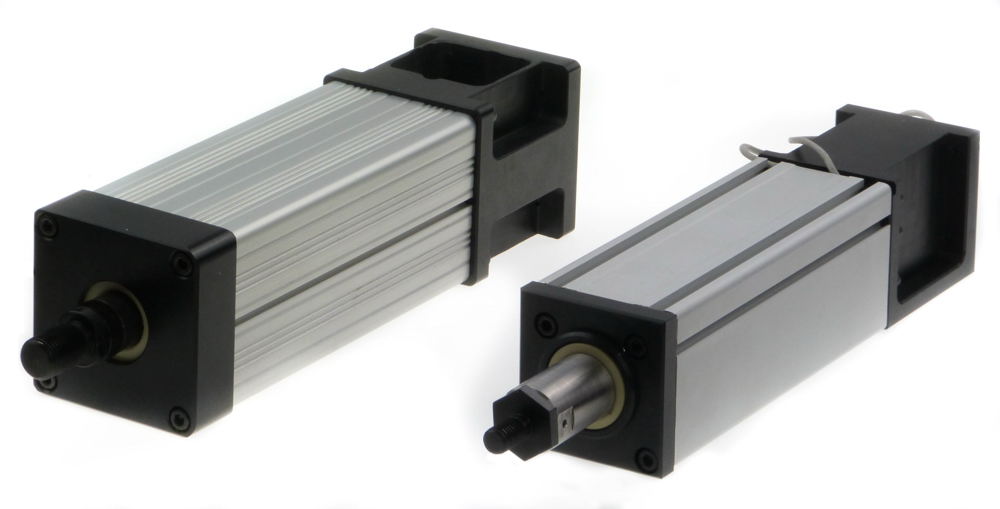

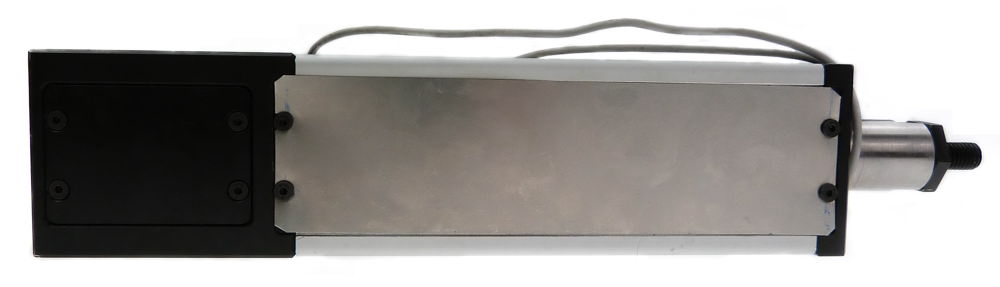

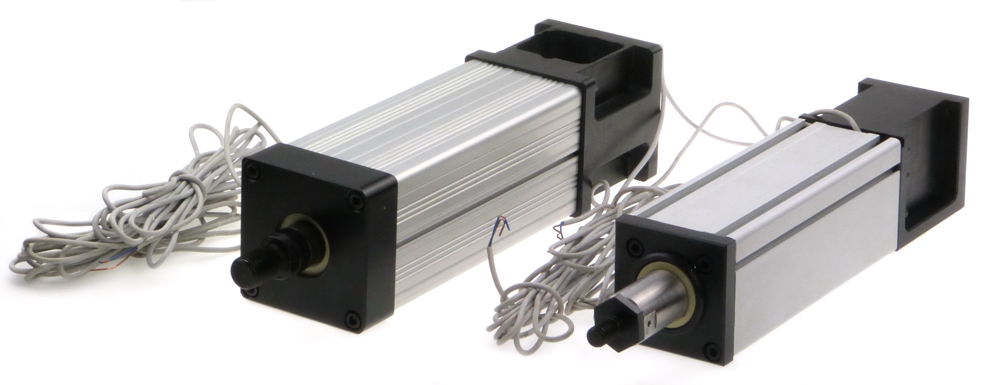

Electric Rod Actuator with Ball Screw



Make your own Motor Partnumber here.



Technical Data
		Motors size 60	Motors size 70
Size	[mm]	60x60	70x70
Ball Screw Diameter	[mm]	12	16
Speed	[m/s]	1	1
Stroke	[mm]	0-500	0-500
Repeatability Accuracy	[±mm]	0.05/300	0.05/300
Axial play	[mm]	0.05-0.25	0.05-0.25
Operation Temperature	[°C]	0-80	0-80
Standard Stepper Motor		NEMA23, MIS23	NEMA34, MIS34x, MSW34x
Standard AC Servo		MAC050-140	MAC40x, MAC800
Fx (Thrust)	[N]	1000	2000
Mta (out)	[Nm]	2.4	4.6
Mta (peak)	[Nm]	4.8	9.2
Mta: Screw end, Max driving torque
Frd:
+My: Radial Torque
+Mz: Radial Torque
+Fx: Axial Load
+Fy: Radial Load
+Fz: Radial Load Stroke length within 200mm.

Possible lead
12 mm. Diameter*	Lead Screw	2mm and 4mm.
	Rolled Ball Screw	2mm, 4mm, 5mm and 10mm

*(On request, 16mm.)



Lead Screw, Max Axial play (backlash) 0.4mm, for Ball Screw 0.25mm.

Recommended stroke length is 60mm-80mm, Higher than that will bring down the accuracy, however up to 400mm is doable.





Drive Technology

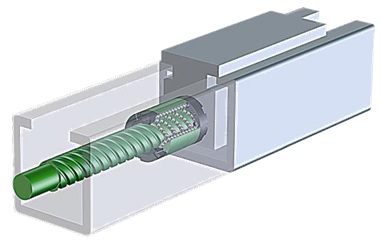

Rolled Ball Screw Drive: High load, Max 40kN High accuracy, repeatability 0.005mm High rigidity On request, Ground Ball Screw

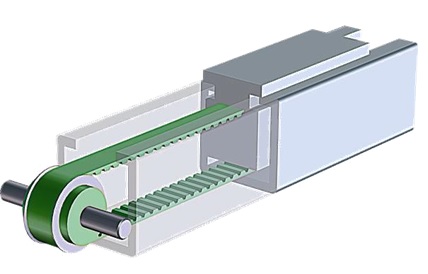

Time Belt Drive: High speed, Max 10m/s High acceleration, Max 40m/s2

Guide Technology

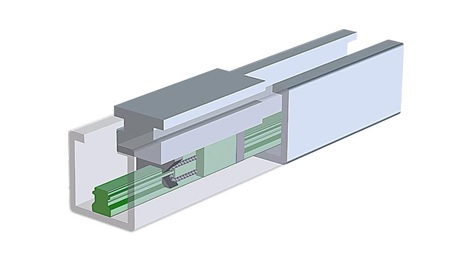

Ball Guide: High load, Max 38000N High torque, Max 2760Nm Low friction, Min 0.02µ Very high rigidity	Single Rail
	Double Rail

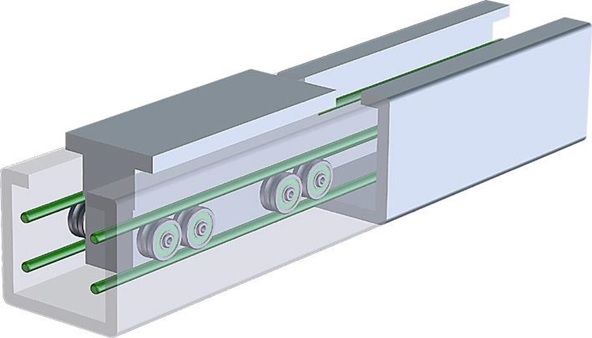

Roller Guide: Max speed 10m/s Low friction, Min 0.1µ High rigidity Fz = 500N @ 200mm

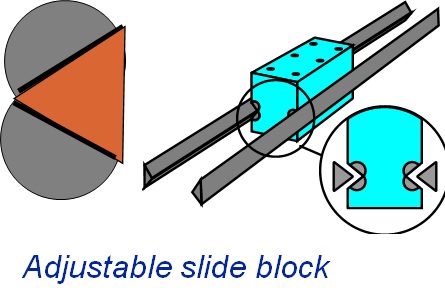

Slide Contact Guide: High speed, Max 5m/s Maintenance free Durable Economical Longer life time Fz = 300N @ 200mm









For Ground Ball Screw please be adviced that delivery time will be longer (more than 35 work days).
