Other Accessories


For quick, trouble-free mounting

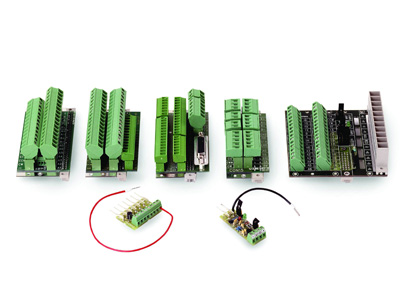

A complete range of JVL terminal boards and cables enable units to be quickly and easily installed in any motion-control system. Terminal Boards are available for all Controllers, Drivers, etc., with clearly marked colour-coded terminals for cables up to 2.5 square mm. 2 converter units allow accommodation of other types of input signal. Cables with fitted connector can be supplied on order to required lengths.

Baseplate. For individual mounting
In situations where a 19" rack system cannot be used, all models using JVL''s standard cabinet can be mounted on a plane surface using a Baseplate. The Baseplate is a 4mm black aluminium plate which is fixed to the unit cabinet and has provision for 6 screws for mounting on a plane surface, for example inside a control cabinet.

Racks, cabinets etc.
A variety of 19" rack cabinets and desk top cabinets are available for building in JVL drivers, controllers etc. The datasheet gives full information about these units and their dimensions.


JVL terminal boards and cables
terminal boards and cables enable units to be installed in any motion-control system - quickly and easily
Controllers, Drivers - terminal Boards are available for all
Accessories of JVL terminal boards
A complete range of JVL terminal boards and cables - for quick, trouble-free mounting



DETAILED





DOWNLOAD
