Stepper Motor Controllers with PLC, 8IO, analogue, encoder input and CANopen


Order no.
Max. Current
(A)
Protec-
tion
(Optional)


Stepper Motor Controller SMC75 Max. 3 Amp
SMC75xxMx 3 Standard
IP42
SMC75 with housing JVL integrated Stepper Motor Controller with PLC.
SMC75xx
3
Open board SMC75 with no housing integrated Stepper / stepping Motor Controller from world leader JVL industri elektronik
Stepper Motor Controller SMC66 Max. 6 Amp
SMC66xx
6
Standard
IP42
(IP65)
SMC66 with housing Stepper Motor Controller with PLC, CANopen and 8IO.
SMC66xx 6 Open board SMC66 PLC MIS integrated steppermotor developed by danish JVL industri elektronik.
Stepper Motor Controller SMC85 Max. 9 Amp
SMC85xxMx
9
Standard
IP42
(IP65)
SMC85 with housing Stepper Motor Controller with PLC, CANopen and 8IO.
SMC85xx 9 Open board SMC85 PLC MIS integrated steppermotor developed by danish JVL industri elektronik.

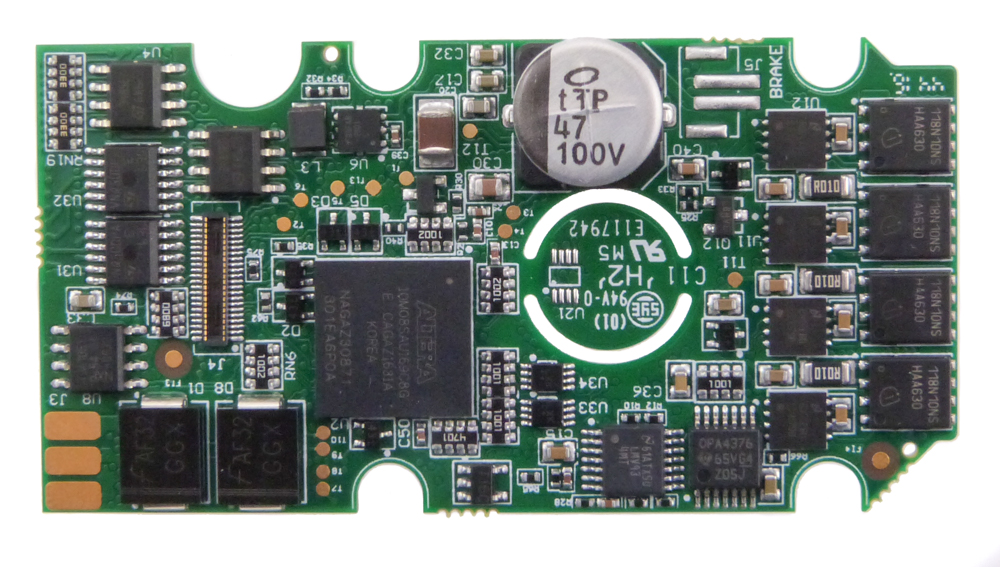

SMC66 without Housing

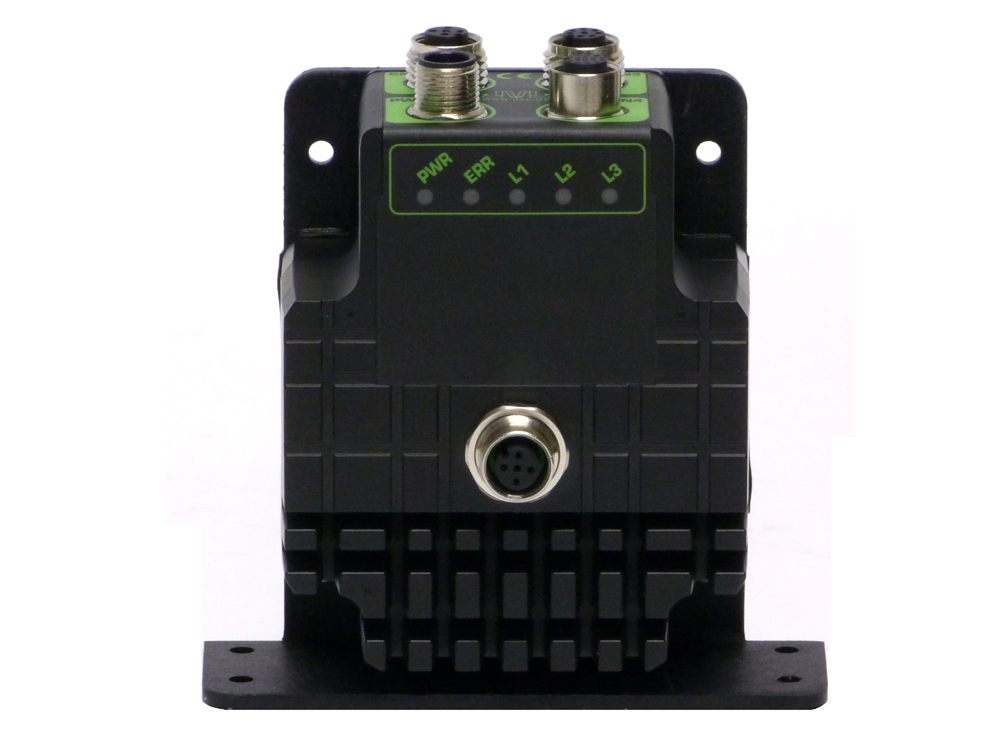

SMC66 with Housing

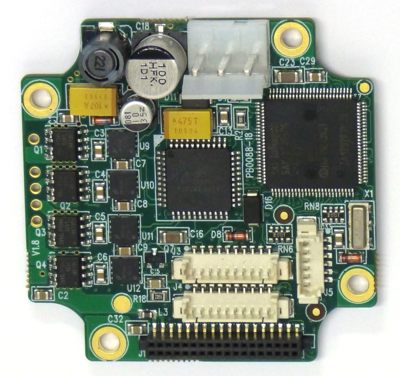

SMC75 without Housing

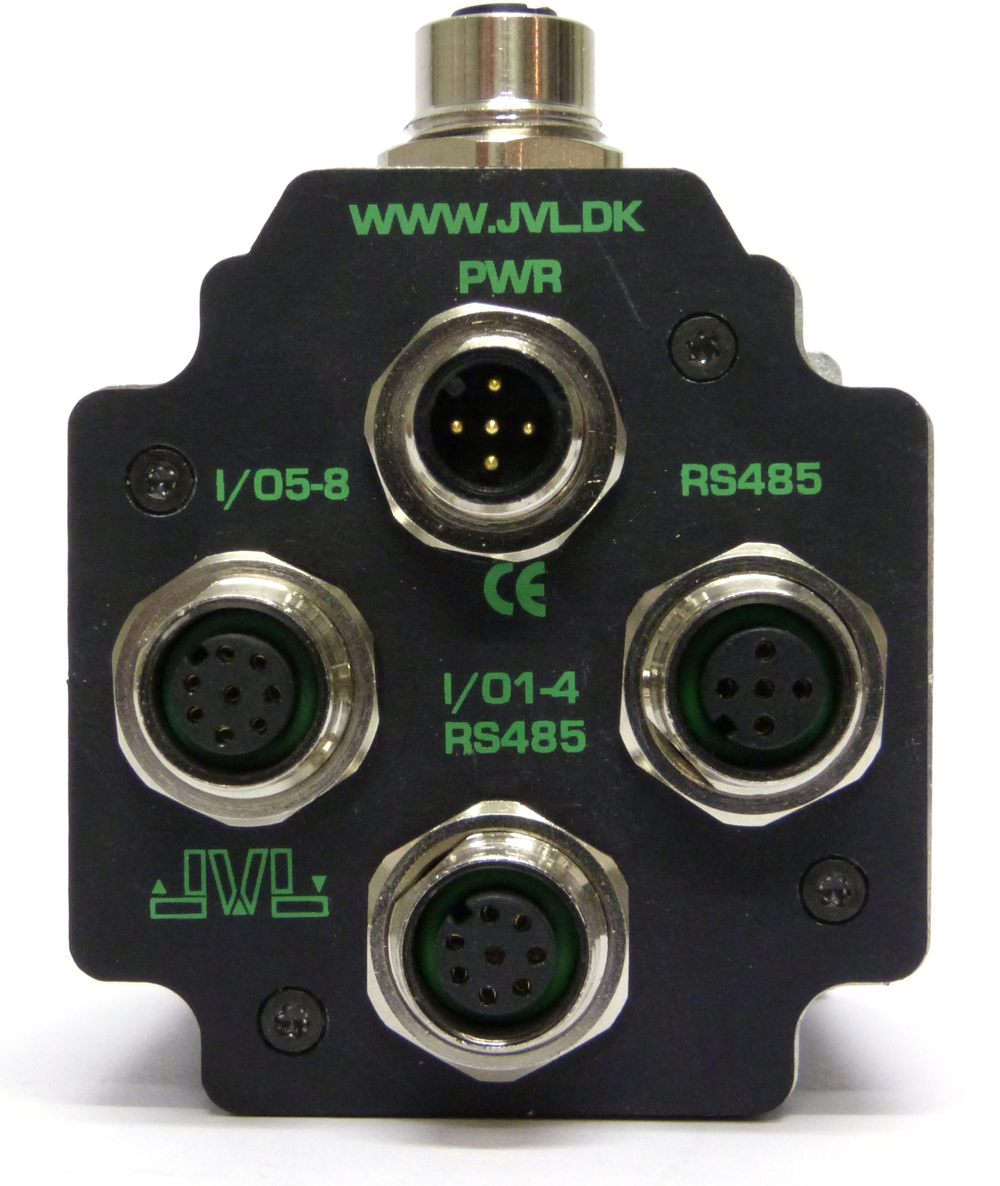

SMC75 with Housing

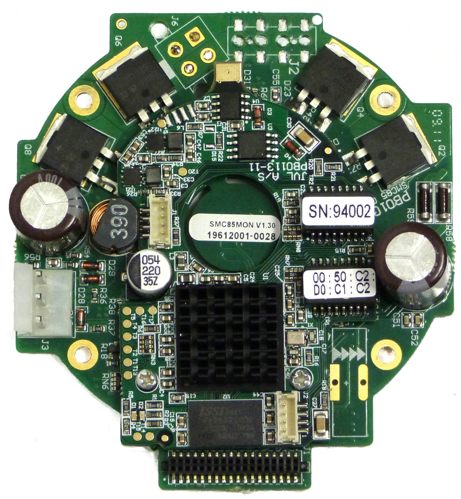

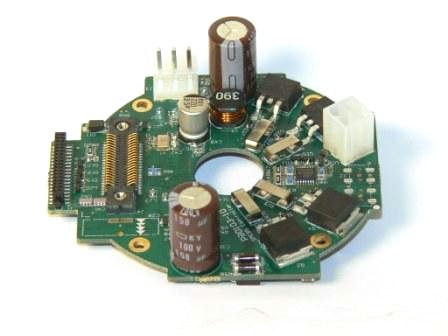

SMC85 without Housing




SMC85 with Housing

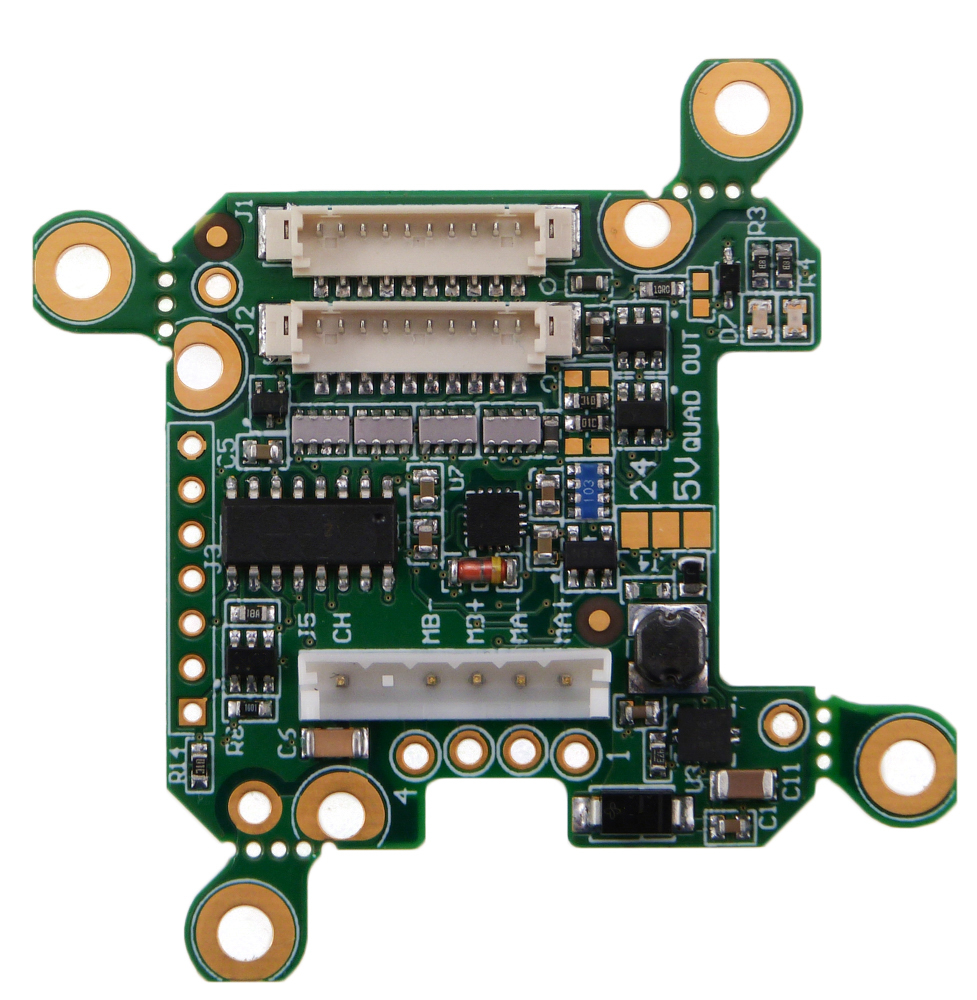

PA0260 - Incremental and absolute multi turn rotary magnet encoder PCB. ABZ, Sin/Cos, SSI and BISS-C interface.
