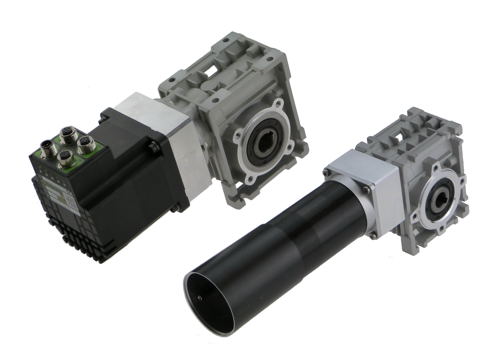

Worm gears HTTW


Worm gears in many sizes

This worm gear range allows you to supply compact sized stepper and servo gear motors for applications in many sectors that have limited dimensions and where high torque, hollow shaft and low cost is a necessity.
  • Gear ratios from 5:1 to 100:1

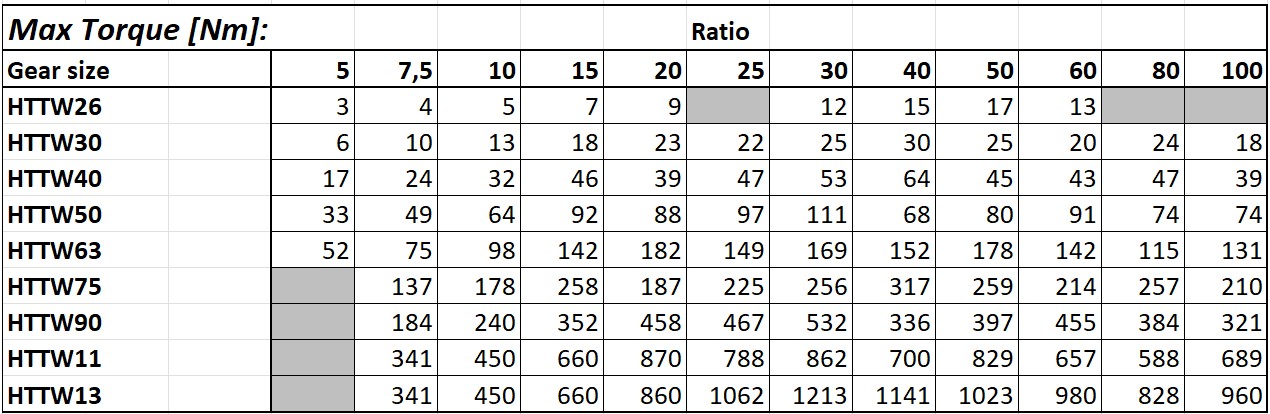

  • Output torque 12-166Nm. Up to 4KW
  • Efficiency 50-70%
  • Flanges for all JVL motors
  • Assembly in many positions
  • Die-cast aluminium housing for worm gearboxes
  • Permanent synthetic oil long-life lubrication
  • High reliability and space saving
  • Many gears on stock






DETAILED
  • APPLICATIONS





DOWNLOAD
