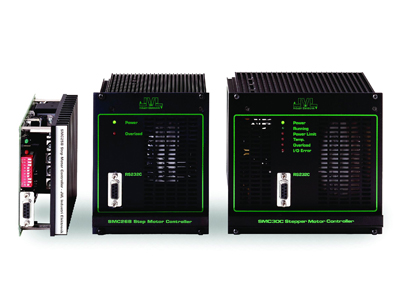

Stepper Motor Controllers SMC23, SMC24, SMC25 and SMC26 SMC30

Complete units with PLC capabilities
JVL Controllers are very easy to use and include all necessary functions for accurate, reliable step-motor control. Motor start/stop speeds, acceleration/deceleration ramps, absolute and relative positioning are all set using easily programmed Controller commands. The Controllers have a built-in compiler which enables programming from a standard "unintelligent" console. They can thus be used as stand-alone units, completely independent of other control units such as PLC equipment, PCs, etc.
  • RS232 or RS485 Interface communication
  • Up to 7 controllers on the same interface bus
  • Max. operating frequency 15kHz
  • Driver stage of 3 and 6 A/40 Volt
  • Power supply 15-45VDC or 115/230VAC
  • 3 Digital User Inputs
  • 3 Digital User Outputs
  • 6 Analogue Inputs
  • Stop and end-of-travel inputs
  • 200, 400, 800 or 1600 steps per revolution (full-, half-, 1/4 or 1/8 step operation)
  • Protected against voltage overload and motor output short-ciruit
