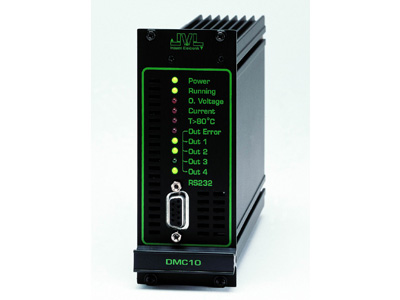

DC Servo Drivers & Controllers DMC10


For controlling DC servo motors

This Controller can be used for controlling DC motors up to 1kW and is characterised by its flexible application and control features.
This Controller can be used for controlling DC motors up to 1kW and is characterised by its flexible application and control features.
  • Digital control loop
  • Simple programming using MotoWare
  • EMC protected - CE approved
  • Preprogrammed Speed profiles
  • Can handle motors up to 1kW
  • Automatic Zero-point seek
  • Setup stored in EEPROM
Features Input:
  • Analog +/-10V
  • Step-pulse and direction
  • Digital selection of position
  • RS232 Interface
  • Current overload protection
  • Current: 12A continous, 25A peak
  • Short-circuit and thermal protection
  • End-of-travel inputs
  • Voltage overload protection
  • Small physical dimensions
  • Absolute/Relative positioning
  • Extremely precise positioning






DETAILED





DOWNLOAD
