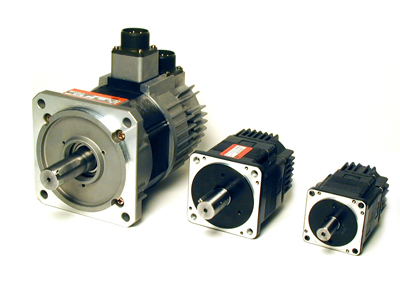

AC Servo Motors MSE400 - MSE3K0

The AC Servo Motors MSE400, MSE800, MSE1K5 and MSE3K0 have been designed by JVL for use with the JVL AMC20 series of advanced AC Servo Controllers.
  • Highest torque density rating in the industry
  • High torque-to-inertia for faster start and stop
  • Rugged design and long life bearings
  • High power, cooler running, rare-earth magnet design
  • Exposed-laminated housing, optimized for high torque and smooth operation
  • Encoder 2000p/r.
  • With JVL AMC20 series servo motor controller, 8000 counts/r with index pulse
  • Very short length compared to power rating: 750W@102mm
  • Standard servo flange
  • Yaskawa/Omron flange and shaft
  • High Axial and radial shaft load
  • Low noise
  • Option for planetary gear head
  • Option for 24VDC brake


For information on the JVL series of AMC20 Servo Controllers click here.
