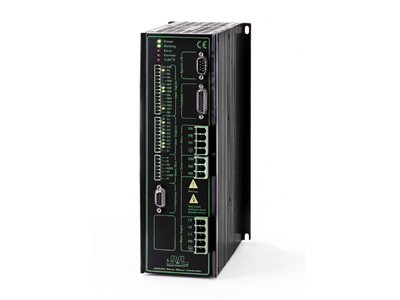

AC Servo Controller AMC20, AMC21 and AMC22


Programmable servo controllers featuring graphic monitoring facilities
JVL´s AC Servo Controllers provide many facilities, including very high resolution electronic gearing, built-in sequential program execution. Programming is easy and very straightforward using a PC and JVL´s programming software, MotoWare. In addition motor operation can be monitored graphically, thus greatly aiding control and troubleshooting.
JVL´s AC Servo Controllers provide many facilities, including very high resolution electronic gearing, built-in sequential program execution. Programming is easy and very straightforward using a PC and JVL´s programming software, MotoWare. In addition motor operation can be monitored graphically, thus greatly aiding control and troubleshooting.
  • 0.75, 1.5 and 3 kW
  • Compact and programmable
  • Built-in RS232/RS485 Interface
  • 11 inputs, 8 outputs
  • Uses programmable FLASH-PROM
  • CANopen bus
  • CAM facility
  • Separate logic voltage
  • Current overload protection
  • Short-circuit and thermal overload protection
  • Simple programming with MotoWare
  • High resolution electronic gearing


  • Facility for graphic monitoring
  • EMC tested, built-in mains filter
  • Mains supply from 1x115VAC to 3x400 VAC
