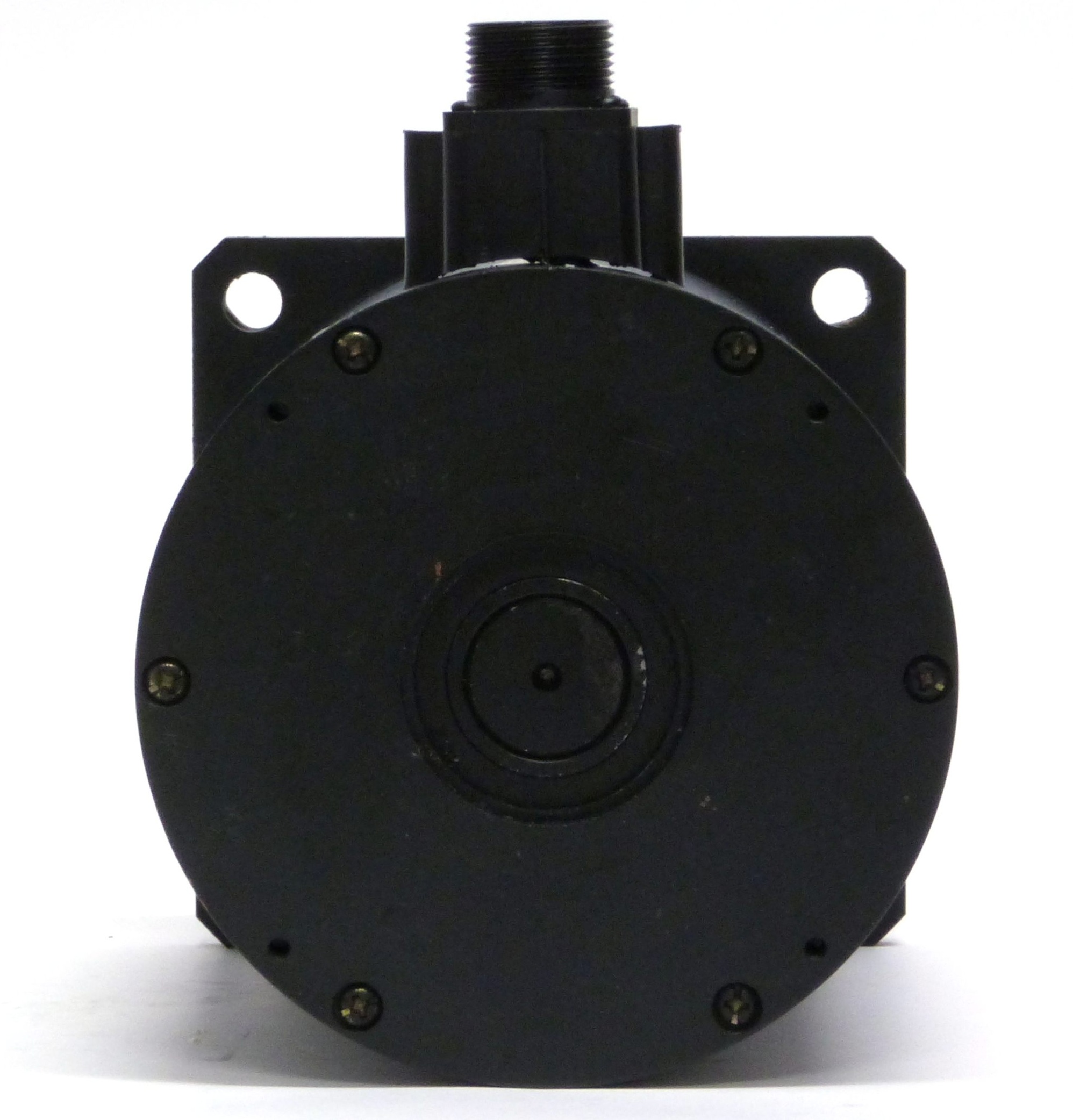

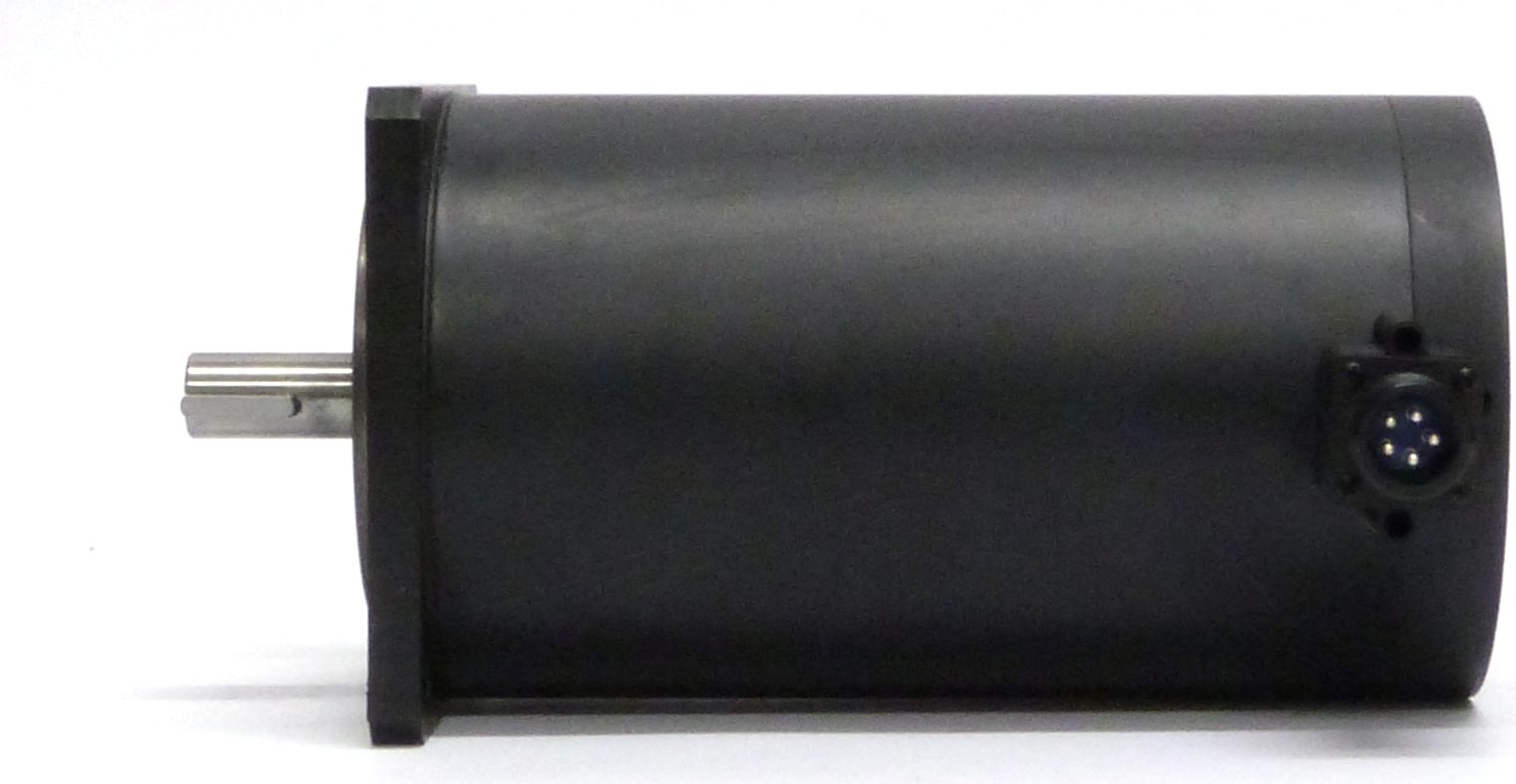

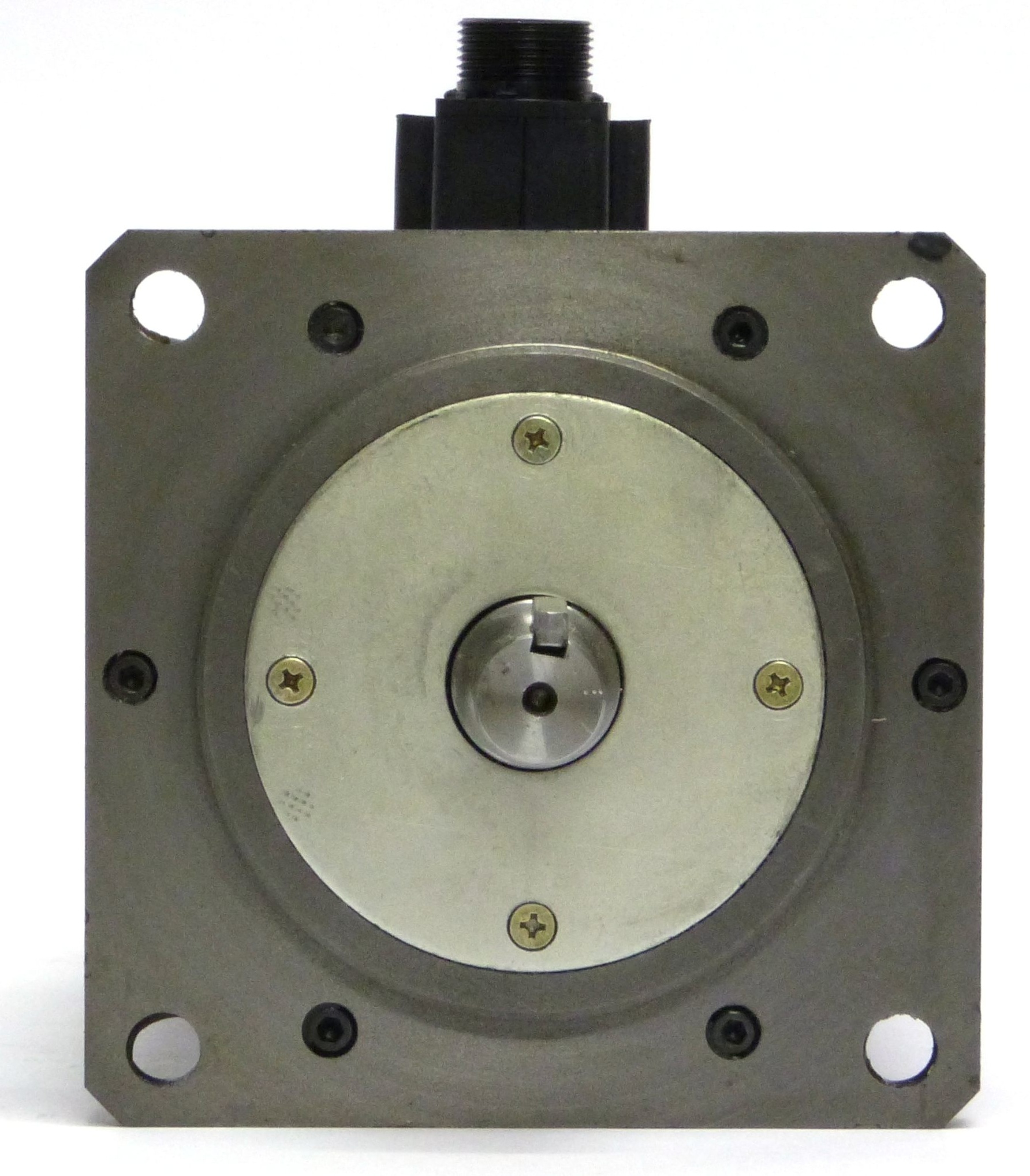

High Torque Stepper Motors MST51x up to 50Nm


This high torque stepper motor can be used for application that demand extreme high torque at low speed. With a flange size 134x134mm and length 270mm can this motor deliver up to 50Nm holding or running torque.

Torque Length
MST511 27Nm 165mm
MST512 40Nm 230mm
MST513 50Nm 270mm

  • Industrial connector for high IP protection.
  • Highest torque density rating in the industry.
  • High torque-to-inertia for faster start and stop.
  • Rugged design and long life bearings.
  • High power, cooler running, rare-earth magnet design.
  • Exposed-lamination housing, optimized for high torque and smooth, accurate microstepping.
  • Standard NEMA51 mounting.
  • High axial and radial shaft load.
  • Cost-effective alternative to servo motors.
  • Optional with build in controller SMC85 with PLC and Ethernet.




Click here to read more about our Controller solutions.
