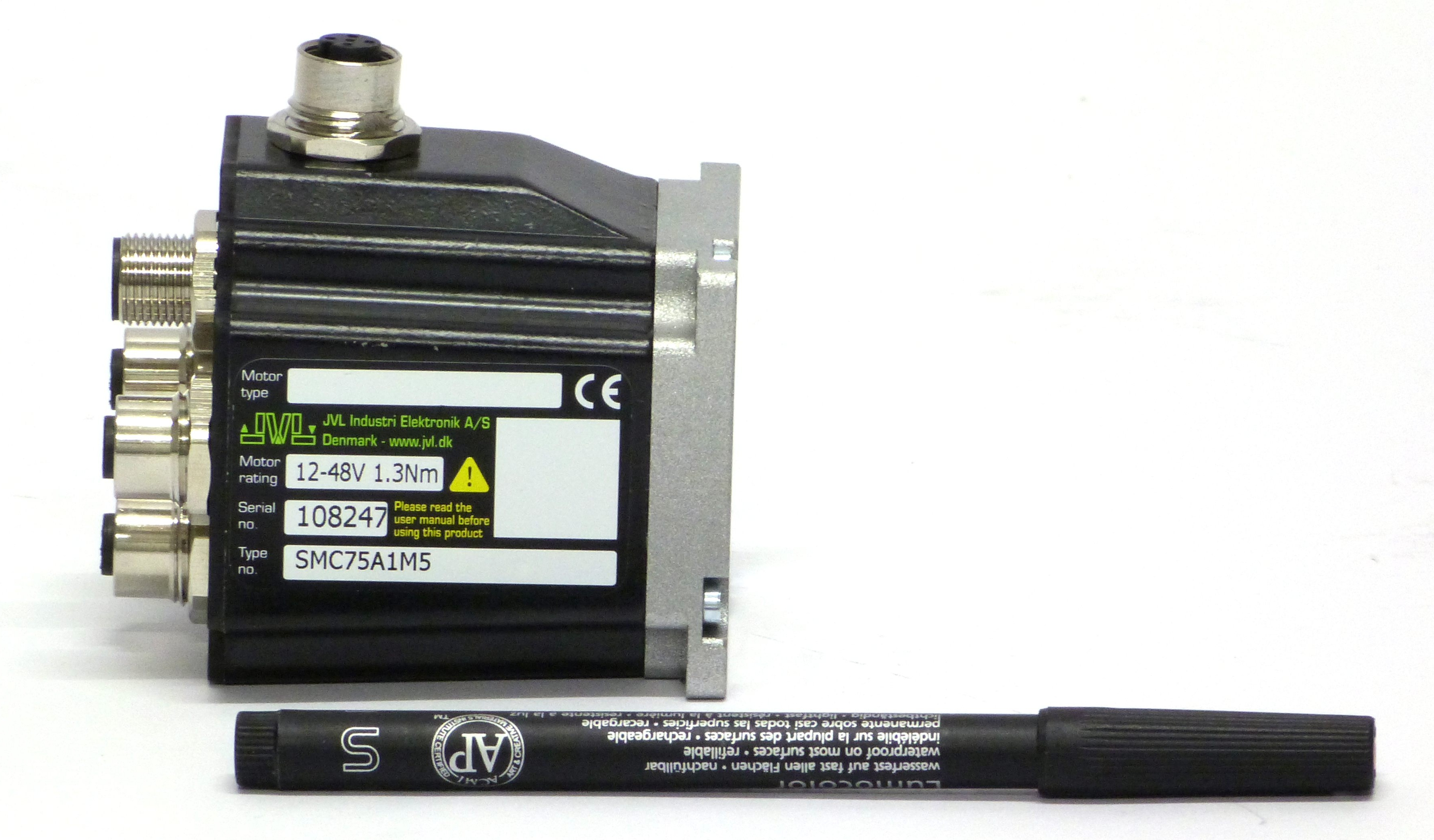

Stepper Motor Controller SMC75 with Housing


Stepper Motor Controller with PLC, CANopen and 8IO

A Stepper Motor Controller with RS485 and CANbus serial interface. 8IO can be configured to input, output or analog input. Can be controlled via nanoPLC and MacTalk. The very compact, 57x57mm, PCB contains everything needed to solve a modern control task as stand-alone or controlled from a PLC or PC. MODBUS RTU and CANopen gives the possibility for easy connection to a PLC. For PC or IPC an ActiveX/OCX driver is available so that interface to LABview, Excel, VB or other Windows-programs is simple.
  • NanoPLC with 8IO in 24V
  • RS485 up to 962kbit
  • CANOpen DSP402
  • MODBUS RTU
  • Resolution up to 1600 step/rev.
  • Pulse/Direction mode
  • Supply 12-48VDC
  • Motor current 0-3Amp RMS
  • Dual supply for safe emergency stop
  • Active X / OCX driver available

QuickStep Integrated Stepper Motor production from JVL
Integrated mini stepper motor a unique solution for a production line
Integrated steppermotor are the right choice for less demanding applications
Integrated stepper motor from JVL with high torque
QuickStep are very compact integrated stepper motors

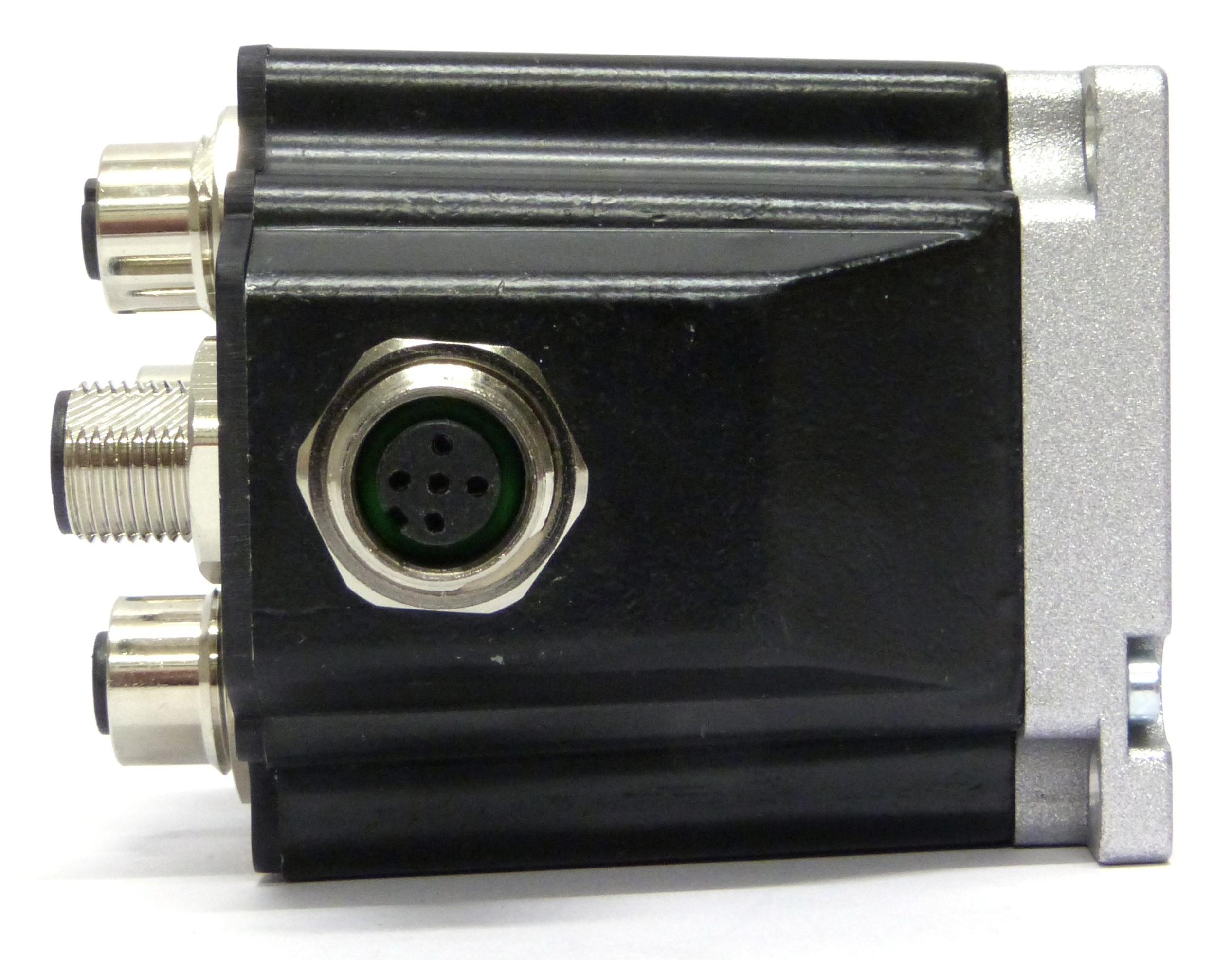

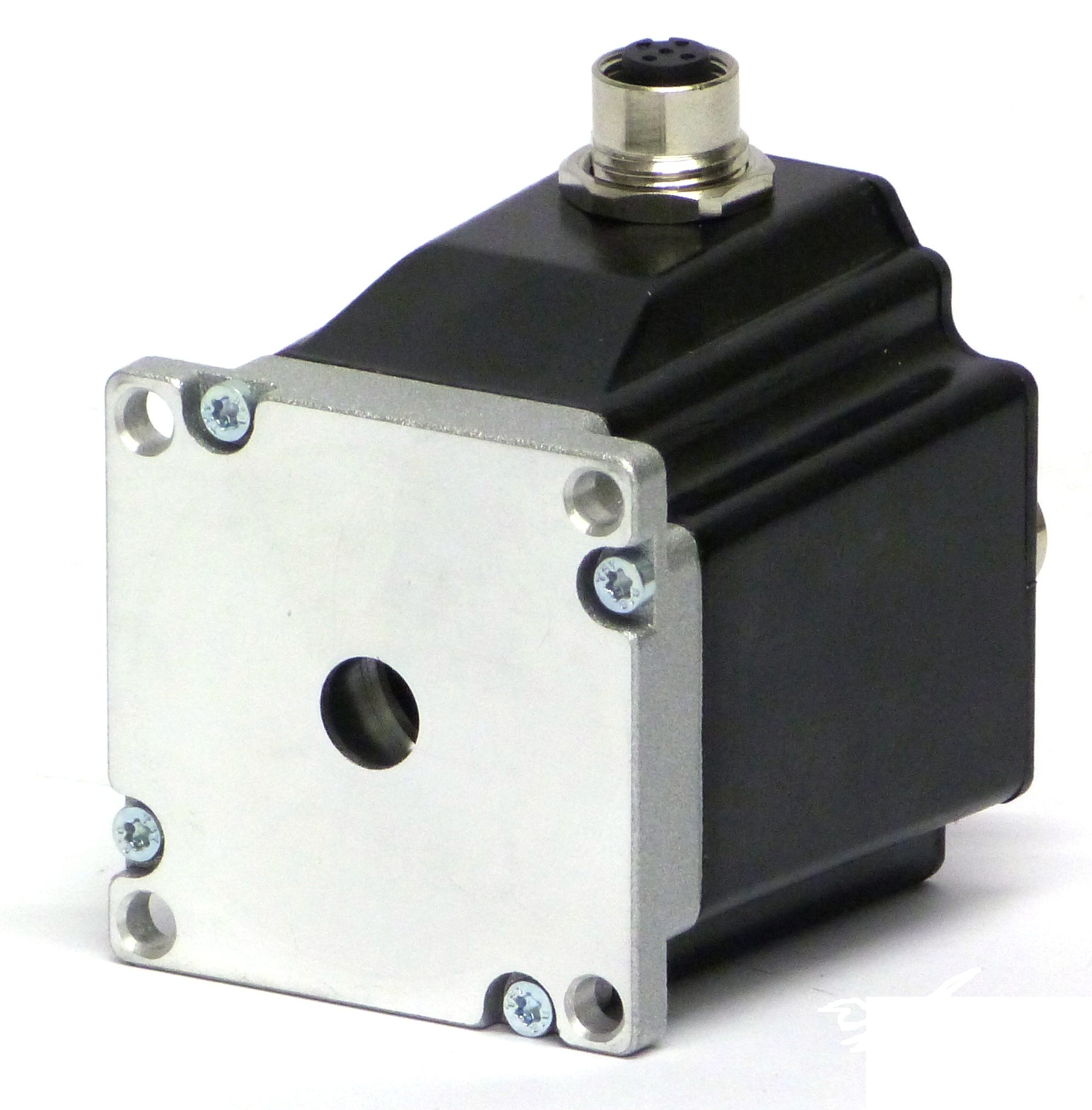

The PCB can be mountet in an instrument or be mounted directly on the back of the motor. Alternatively it can be delivered in a box with cables out or with M12 connectors. The box can be mounted on a buttom plate or on DIN rail. Click here to read more about MIS23x integrated stepper motor solutions.
