MSL Non-integrated Stepper Motor Linear Actuator Motor Part Number Selector

How you generate a part number.
1
2
3
4
5
-
6
7
8
9
10
MSL
231
A
[x]
[y]
-
4
L3
AA
0.5
[z]

  1. Select MSL if you want motor without internal driver or controller. If you want a motor with integrated controller or driver (only for Captive and External in NEMA 23 and 34) click here.
  2. The first two numbers indicate the motor size in inches Eg. 2.3 inch is 23. For most applications 1 stack motors are sufficient. The 6th character in the type number shows stack quantity. 1 stack motors are MSL231and 2 stacks are MSL232. Only order 2 stack for special purposes where short time high force are needed shortly with very low duty cycle. Notice that force always should be below "Recommended load limit”. If load is repeatedly higher than the limit the nut or thread will be damaged. Use only the actuator above it´s limit for short time operation or when and a test have shown it works fine. Note: for MSL34x only 1 stack is available.
  3. Select for motor currents
    A Motor currents from 0-3,00 Amp. (Only on request).
    B Motor currents from 3,01-6,00 Amp. MSL23x and MSL34.
    C Motor currents from 6,01-9,00 Amp. (Only on request).
    D Motor currents from 9,01-12,00 Amp. (Only on request).

  4. Select (with x) see screw diameter on the product page.

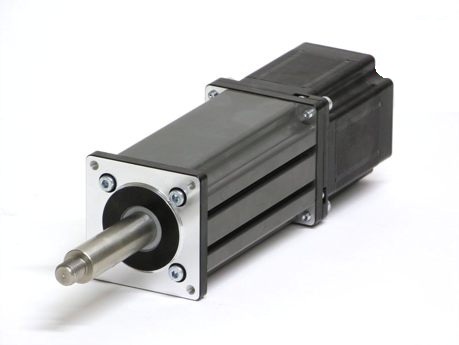

    C Captive with internal guide (Not available for MSL34x).

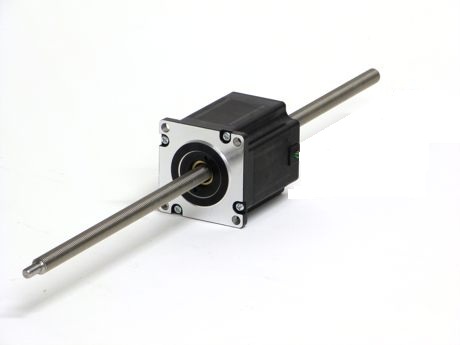

    N Non-captive with internal nut.
    A External anti backlash nut (small screw diameter, default) (Not available for MSL34). More information.

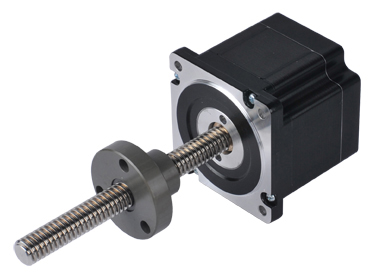

    E External plastic nut. (small screw diameter, default)
    F External bronze nut. (small screw diameter, default)
    G External plastic nut. (big screw diameter)
    H External bronze nut. (big screw diameter)
    B External nut with ground ballscrew and steel balls. (Only for +25 pcs. order)
    R External nut with rolled ballscrew and steel balls. (Only for +25 pcs. order)
    For more information click here.
  5. Select (with y) pitch from 0.6 to 25.4mm/rev. See table on product page.
  6. Select 4 (always).
  7. Select L3 for 300-320mm wire and L4 for 400mm wire. L3 is default.
  8. Select AA for no encoder. For MIL only (see point 1) you can choose H2 or H3: H2 is semi Absolute Encoder (in power-off state the shaft must be turned less than 180°), H3 is Absolute Encoder. Resolution is 1024 counts/rev. AA is default.
  9. Select motor current. The current you choose is the order code, e.g. 4.0 Amp is order code 4.0, like in the example below. See table on product page for possibilities.
  10. Select (with z) Stroke or Travel lenght (see options belov). For E and N select in steps of 25-50mm and C in predefined steps. For order quantity above 10 pcs can motors be delivered with longer stroke. Please contact JVL.

    C - Captive (Click to show)

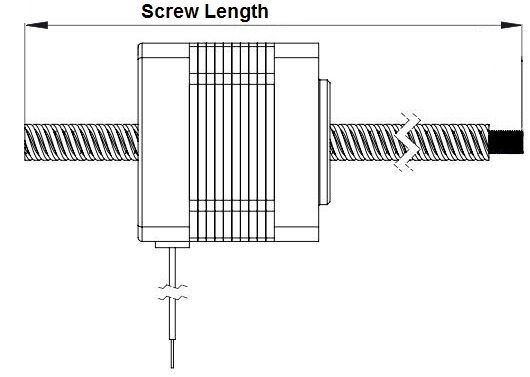

    N - Non-captive (Click to show)

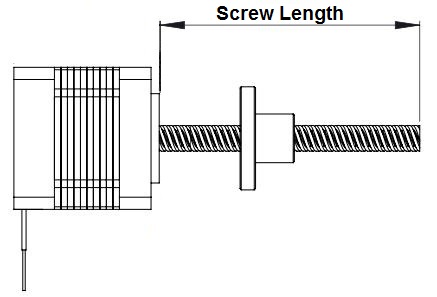

    E - External nut (Click to show)

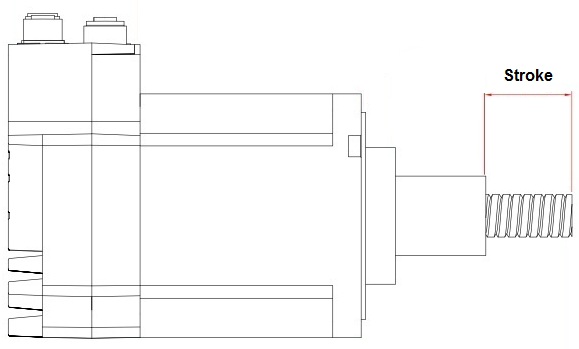

    B - Ballscrew (Click to show)



  11. Part Number Selector Examples

    MSL232BCK-4L3AA4.0G
    MSL - Motor without JVL technology, 232 - double stacked NEMA 23 Motor, B - Motor current 4 Amp, C - captive, K - 2.54 mm Travel / rev., 4 - default, L3 - 320 mm wire, AA - default, 4.0 - current, G - 63.5 mm travel length.
    MSL232BNK-4L3AA4.0J
    MSL - Motor without JVL technology, 232 - double stacked NEMA 23 Motor, B - Motor current 4 Amp, N - Non-captive, K - 2.54 mm Travel / rev., 4 - default, L3 - 320 mm wire, AA - default, 4.0 - current, J - 400 mm travel length.
    MSL341AED-4L3AA3.0D
    MSL - Motor without JVL technology, 341 - single stacked NEMA 34 Motor, A - Motor current 3.0 Amp, E - External nut, D - 1.27 mm Travel / rev., 4 - default, L3 - 320 mm wire, AA - default, 3.0 - current, D - 125 mm travel length.
