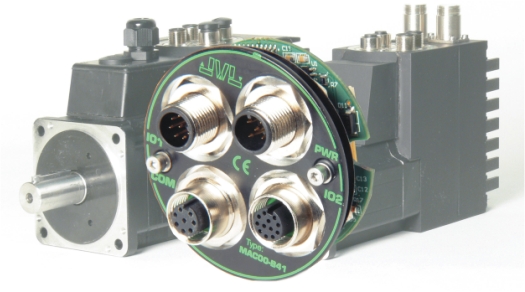

New module for MAC servo motors - MAC00-B41.

The MAC00-B41 is a new module for use with MAC servo motors types MAC400 and MAC800.

The module offeres the following extended I/O functions:

- 6 digitale I/O (24V tolerant)

- 2 analogue 12-bit inputs

- 2 multifunction RS422 channels

- Double supply-feature for safe motor stop

- Galvanically isolated RS232 and RS485

- New, simple and robust internal connector

- M12 industrial connectors for simple and secure connection

The module is primarily intended for applications where there is a need for very rapid motor start and stop functions. Start and stop jitter is less than 50µs and synchronisation with an external encoder is possible.

The module additionally includes a galvanically isolated RS232 and RS485 interface which is used for set-up or diagnosis, or can be permanently connected to a network.



Further software features are planned later this year, such as a fully programmable PLC with high-speed I/Os.
