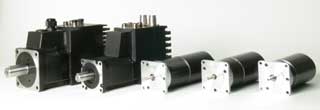

JVL MAC motors - now in 400W version

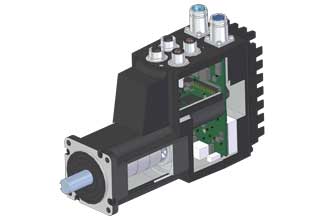

JVL now introduces a MAC400 integrated motor for the medium power range
The new MAC400 provides all of the same features as the larger MAC800 model and in addition offers:
  • Absolute multiturn encoder
  • Prepared for PowerLink;
  • EtherCAT; Ethernet/IP;
  • ProfiNet and SERCOS
  • Even lower cost due to newest technology and production techniques
  • Improved 2-channel power dump circuit
  • 2 RS422 channels for encoder in/output and SSI encoder, etc.
  • 6 IO for capture of position; interrupt, counters, enable, timer and PLC functions
  • High-speed serial interface
  • Plugable power connectors
  • Natural cooling, no fan
Among the many well-known advantages of using an integrated motor like the MAC motor, the following can be mentioned:
  • Simple installation.
  • No cables between motor and driver
  • EMC safe.
  • Switching noise remains within motor Compact.
  • Does not take space in cabinet
  • 24VDC for control circuits
  • Option for built-in brake
  • All MAC motors use the same expansion modules
  • CE approved/MAC800 UL recognised, pending for MAC400
  • Built-in mains supply in MAC400 and MAC800
  • Low price
The MAC motors offer the following interface options:
  • From PC/PLC with drive-commands via RS232/RS485/RS422
  • Pulse/dir. or quadrature inputs.
  • 12-bit ±10V input for speed, position or torque control
  • A+B encoder output
  • Register mode via 4 inputs or serial commands
  • Option for µPLC built-in

The new MAC400 model has been developed because of customer requests for a mid-range solution in the highly successful MAC series. We are sure it will live up to the strict requirements we put on all our MAC motors regarding performance, versatility and reliability.
