Accessories for Stepper Motor Driver SMD73 and SMD74
The following equipment is recommended for use with the Stepper Motor Drivers SMD73 and SMD74:
- High Torque Stepper Motors MST170-343
- High Torque Stepper Motors MST001A, MST002A and MST234B03
- Other Switchmode Power Supplies
| Partnumber | Description | Protection class | |

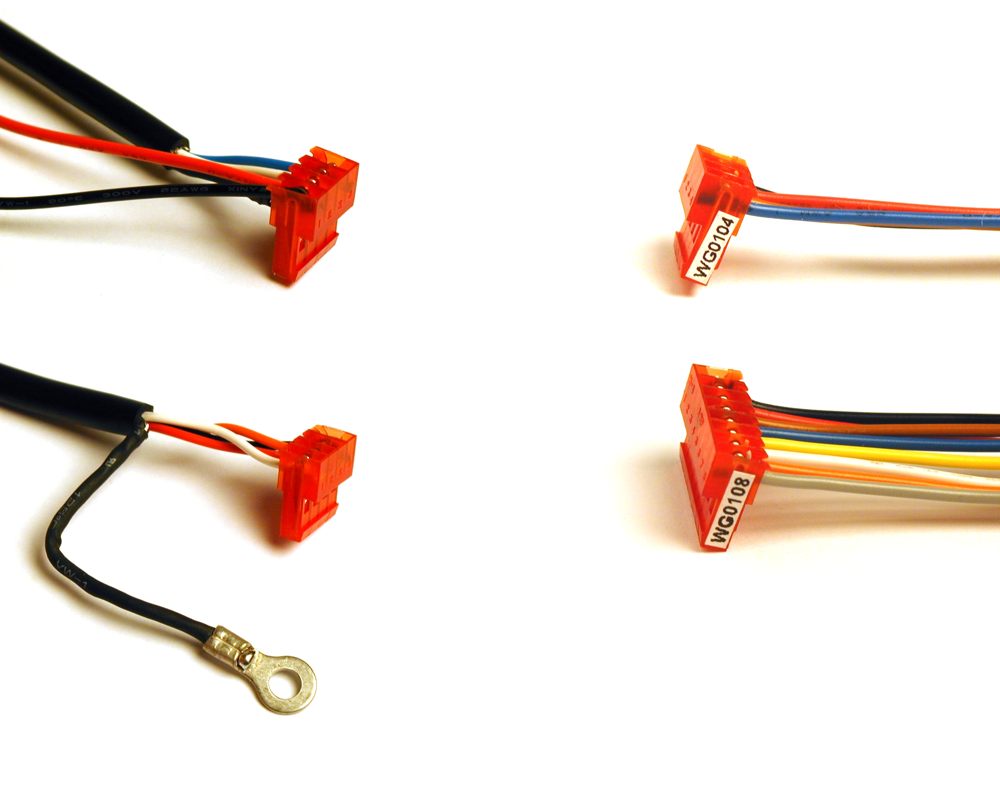

| WG0104 | 4 pole con with 1m wire 0,5mm. 2 for motor or inputs. Not shielded | - |  |
| WG0108 | 8 pole con with 1m wire 0,5mm. 2 for motor and inputs. Not shielded. | - | |
| WG0112 | 4 pole con with 5m cable 0,5mm. 2 for motor. Shielded | - | |
| WG0114 | 4 pole con with 5m cable 0,5mm. 2 for inputs. Shielded | - | |
| WG0805 | 5 pin M12 A female with xxmm wires for motor and puls/dir | IP67 | |
| WG0813 | 4 pin M12 D female with 87mm wires for additional IO connector. | IP67 | |
| PSU24-75 |
PSU 24VDC/3.2A, 75W.
85-264VAC DIN
Switch-mode power supply.
UL/CE approved.
DIN rail.
HxDxW = 126x100x56mm. |
- |  |
Find appropriate stepper motors here.
