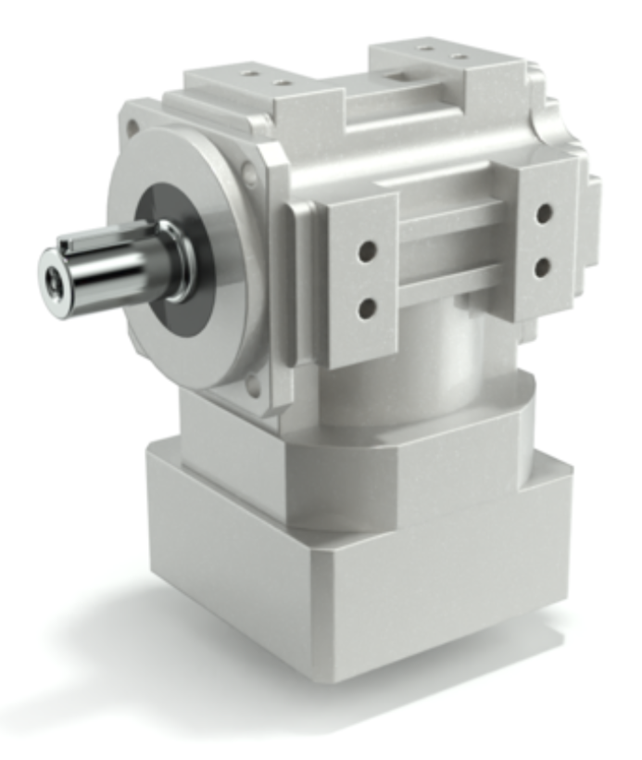

HTRGxxK - Planetary gear
|
HTRG01K - 04K |
Front Flange |

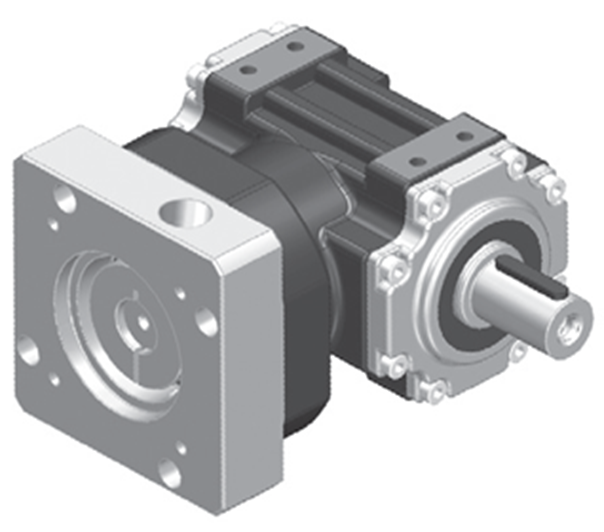

HTRGxxKyyy
LP/LQ |

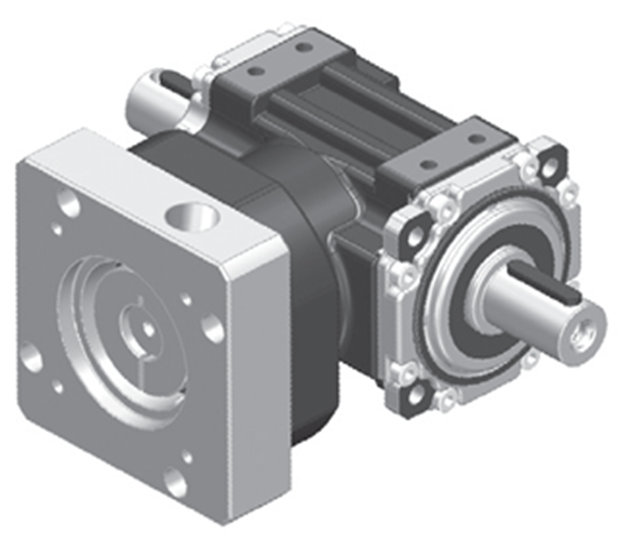

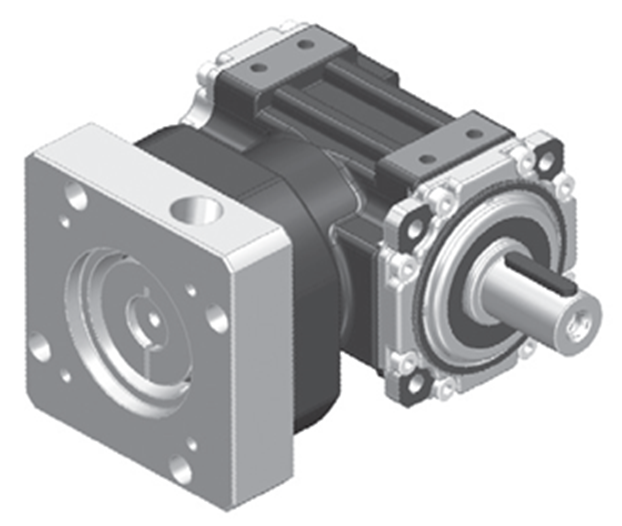

HTRGxxKyyy

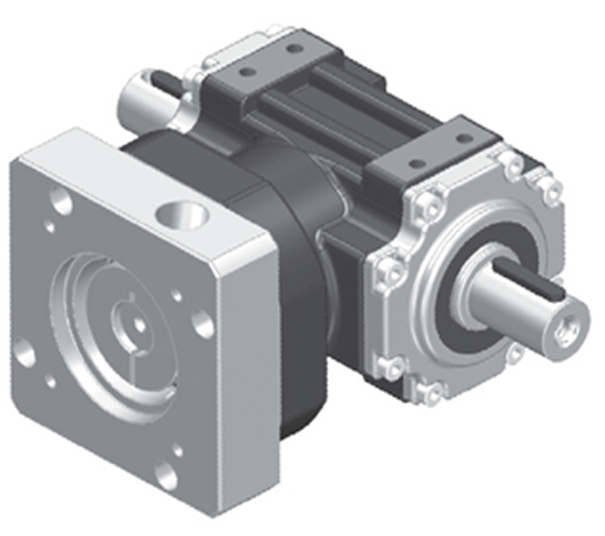

LD/LE |

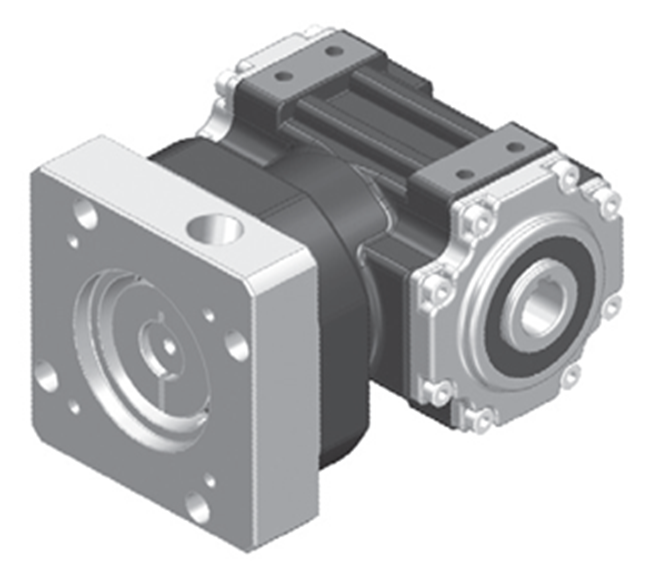

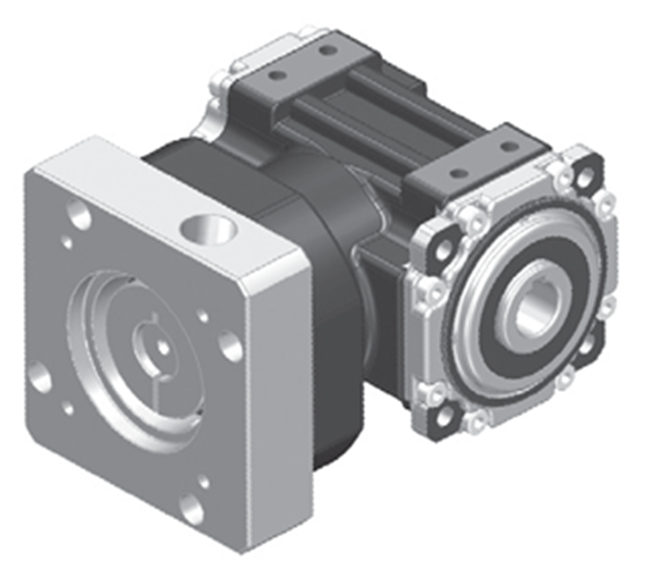

HTRGxxKyyy
H0/H1 (Size 03-04 only) |

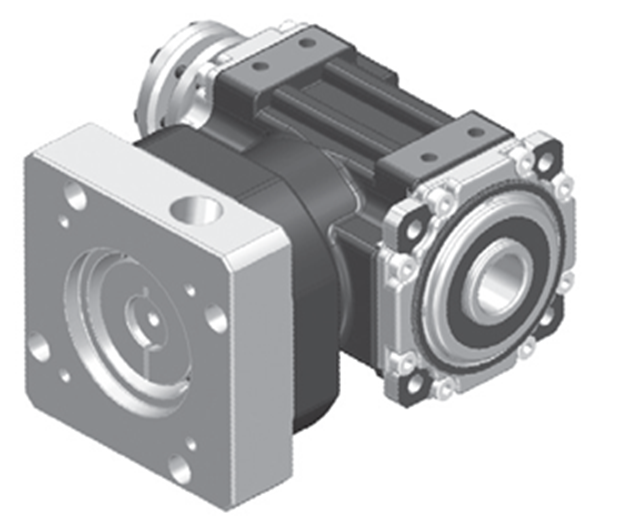

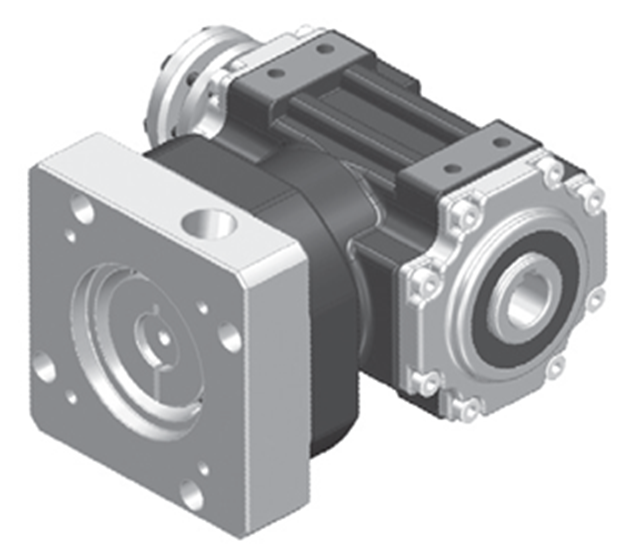

HTRGxxKyyy
S0/S1 |
 |
No
Yes |
  |
  |
  |
  |
Only ratio 1, 2 and 5 is possible !
Planetary gears HTRGxxK for NEMA23 Stepper motors with 6.35 mm shaft:
Planetary gears HTRGxxK for NEMA23 Stepper motors with 10.0 mm shaft:
Planetary gears HTRGxxK for NEMA34 Stepper motors with 9.52 mm shaft:
Planetary gears HTRGxxK for NEMA34 Stepper motors with 14.0 mm shaft:
|
JVL partno. |
3D (STEP) | PDF-Dim | |
|
HTRG02KxxxLQN34114Mx |
Step |
PDF |
PDF-Dim |
Planetary gears HTRGxxK for MAC400/402 motors with 14.0 mm shaft:
|
JVL partno. |
3D (STEP) | PDF-Dim | |
|
HTRG02KxxxLP050114Mx |
Step |
PDF |
PDF-Dim |
|
HTRG02KxxxLQ050114Mx |
Step |
PDF |
PDF-Dim |
|
HTRG02KxxxS0050114Mx |
Step |
PDF |
PDF-Dim |
Planetary gears HTRGxxK for MAC800-1200 motors with 19.0 mm shaft:
|
JVL partno. |
3D (STEP) | PDF-Dim | |
|
HTRG02KxxxLQP70119Mx |
Step |
PDF |
PDF-Dim |
|
HTRG02KxxxLPP70119Mx |
Step |
PDF |
PDF-Dim |
|
HTRG02KxxxS0P70119Mx |
Step |
PDF |
PDF-Dim |
|
HTRG03KxxxLPP70119Mx |
Step |
PDF |
PDF-Dim |
|
HTRG03KxxxLQP70119Mx |
Step |
PDF |
PDF-Dim |
|
HTRG04KxxxLQP70119Mx |
Step |
PDF |
PDF-Dim |
Planetary gears HTRGxxK for MAC1500-4500 motors with 24.0 mm shaft:
|
JVL partno. |
3D (STEP) | PDF-Dim | |
|
HTRG03KxxxLQS40224Mx |
Step |
PDF |
PDF-Dim |
|
HTRG04KxxxLQS40224Mx |
Step |
PDF |
PDF-Dim |
***************************************************************************************
