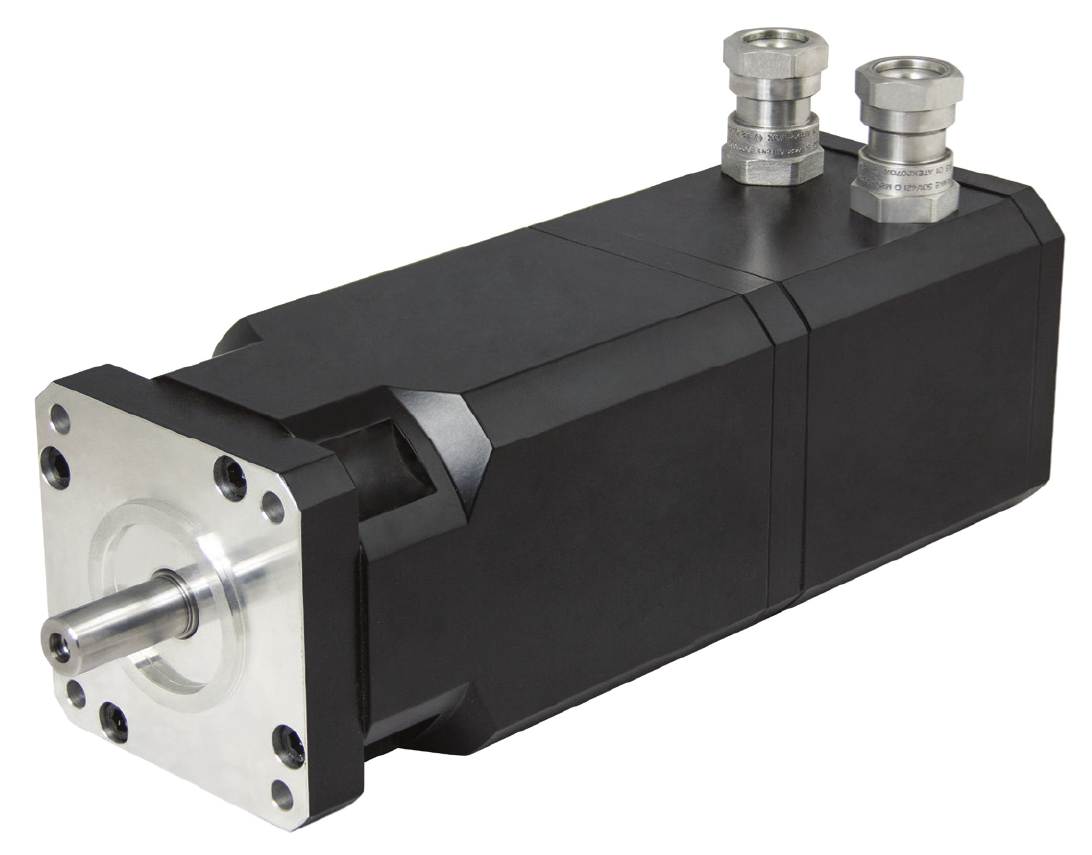

ATEX/IECEx Servomotor ( Obsolete )
|
Our MSA Series Brushless Motors are characterised by an IC 400 type construction, thereby featuring a totally enclosed motor that does not require any type of additional ventilation. To ensure higher service life, most of the insulating materials are rated in the 200-degree class. In addition, the stator pack design with winding in the groove and using Neodymium magnets ensures high performance with small dimensions generating, as a result, a sinusoidal electromotive force. For enhanced application safety, a temperature sensor is mounted for each winding so as to prevent damage from overheating, thereby increasing motor service life. Motors are tested in accordance with EN 60034-18-41 relating to partial discharge between windings. To increase the application range, the insulating materials used are UL certified. This motor complies with: ATEX Directive 94/9/EG, EN60079-0, EN60079-1.
Features • ATEX II 2G Ex d IIB T4 Gb |
 |
||||
|
|||||
|
|
|||||
|
|
|||||
MSA
| Feedback | Unit | 02-01.4-12-x-x-000 | 02-01.6-32-x-x-000 | 02-02.6-20-x-x-000 | 02-02.6-56-x-x-00 |
| Size | mm | 88 | 88 | 88 | 88 |
| Motor length | mm | 185 | 185 | 210 | 210 |
| Motor length with brake | mm | 233 | 233 | 258 | 258 |
| Nominal voltage | VDC | 60 | 325/560 | 60 | 325/560 |
| Continous stall torque | Nm | 1.4 | 1.6 | 2.6 | 2.6 |
| Continous stall current | Arms | 7.5 | 3.2 | 8.4 | 3 |
| Nominal torque | Nm | 1.3 | 1.26/1.2 | 2.6 | 2.10/1.69 |
| Nominal current | Arms | 7.65 | 2.52/2.4 | 8.25 | 2.39/1.92 |
| Nominal speed | rpm | 4900 | 5500/6600 | 2900 | 3200/5900 |
| Peak torque | Nm | 2.7 | 3.5 | 4.5 | 7.2 |
| Peak current | Arms | 14.1 | 7.1 | 14.1 | 8.5 |
| Torque constant | Nm/Arms | 0.17 | 0.5 | 0.315 | 0.88 |
| BEMF constant (1)(2) | Vrms/krpm | 12.5 | 32.7 | 20.5 | 56.5 |
| Resistance (1)(2) | Ohm | 0.85 | 5.5 | 0.85 | 5.8 |
| Inductance (1) | mH | 2.05 | 14.1 | 2.25 | 17.2 |
| Rotor inertia | kg/cm2 | 1.06 | 1.06 | 1.7 | 1.7 |
| Max. axial load | N | 130 | |||
| Max. radial load | N | 250 | |||
| Mass | 4.2 | 4.2 | 5.2 | 5.2 | |
| Feedback | Resolver, encoder inc 2048 + hall, absolute single-turn hiperface (SEK 37), absolute multi-turn hiperface (SEL 37) | ||||
(1): Line-line, (2): At 20° C, (3): With no condansation.
MSA
| Feedback | Unit | 02-03.4-30-x-x-000 | 02-03.6-63-x-x-000 | 02-04.2-76-x-x-000 | |
| Size | mm | 88 | 88 | 88 | |
| Motor length | mm | 235 | 235 | 235 | |
| Motor length with brake | mm | 283 | 283 | 298 | |
| Nominal voltage | VDC | 60 | 325/560 | 325/560 | |
| Continous stall torque | Nm | 3.4 | 3.6 | 4.2 | |
| Continous stall current | Arms | 7.1 | 3.7 | 3.6 | |
| Nominal torque | Nm | 3.4 | 2.72/1.99 | 3.40/2.73 | |
| Nominal current | Arms | 7.08 | 2.80/2.05 | 2.91/2.33 | |
| Nominal speed | rpm | 3400 | 2900/5400 | 2400/4400 | |
| Peak torque | Nm | 6.9 | 10.6 | 12.8 | |
| Peak current | Arms | 14.1 | 11.5 | 11.5 | |
| Torque constant | Nm/Arms | 0.48 | 0.97 | 1.17 | |
| BEMF constant (1)(2) | Vrms/krpm | 30.5 | 63 | 76.4 | |
| Resistance (1)(2) | Ohm | 1.15 | 4 | 4.65 | |
| Inductance (1) | mH | 3.2 | 13.35 | 15.5 | |
| Rotor inertia | kg/cm2 | 2.32 | 2.32 | 2.7 | |
| Max. axial load | N | 6.2 | 6.2 | 6.8 | |
| Max. radial load | N | 130 | |||
| Mass | 250 | ||||
| Feedback | Resolver, encoder inc 2048 + hall, absolute single-turn hiperface (SEK 37), absolute multi-turn hiperface (SEL 37) | ||||
(1): Line-line, (2): At 20° C, (3): With no condansation.

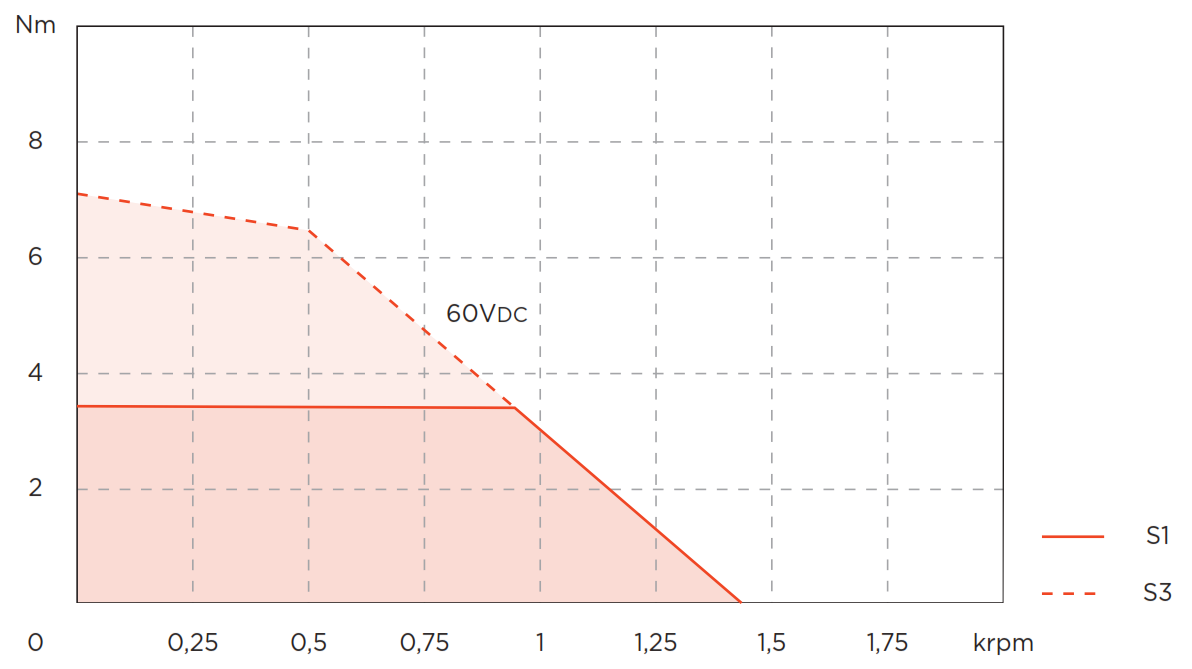

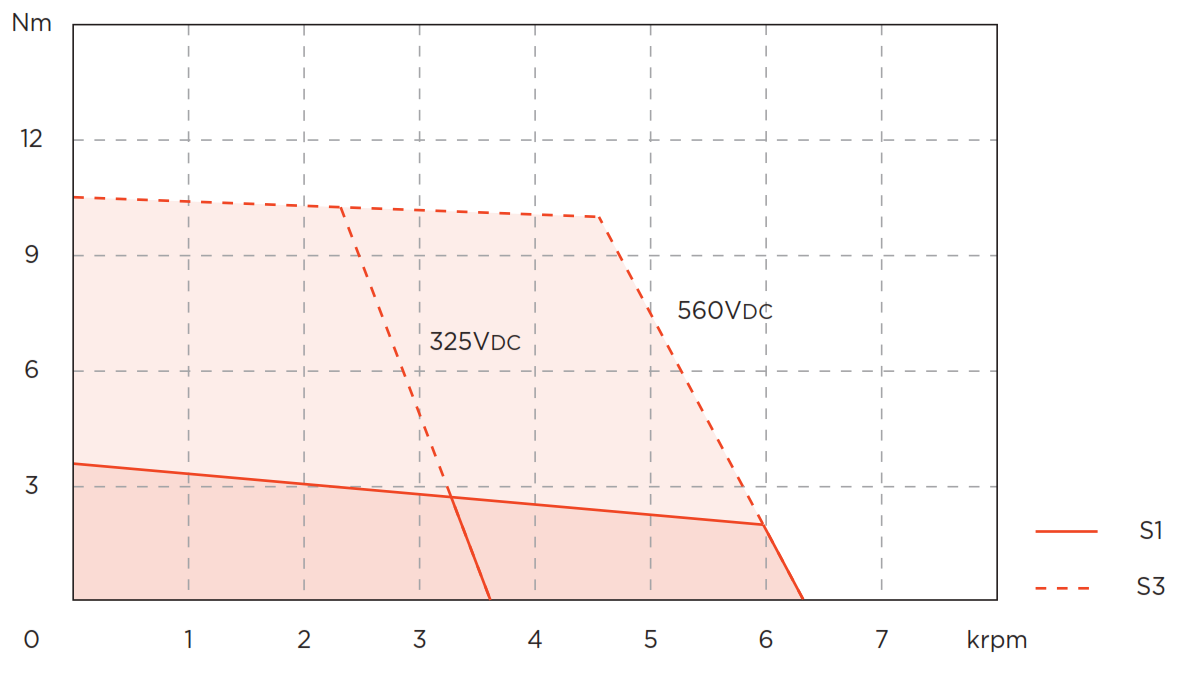

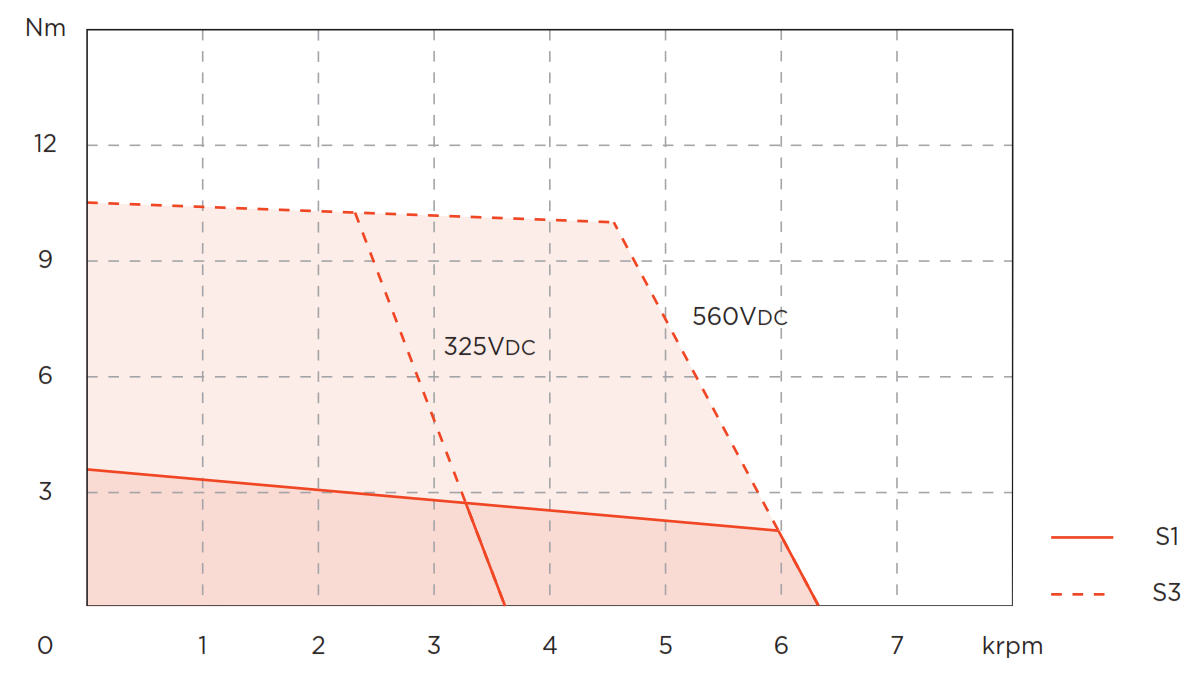

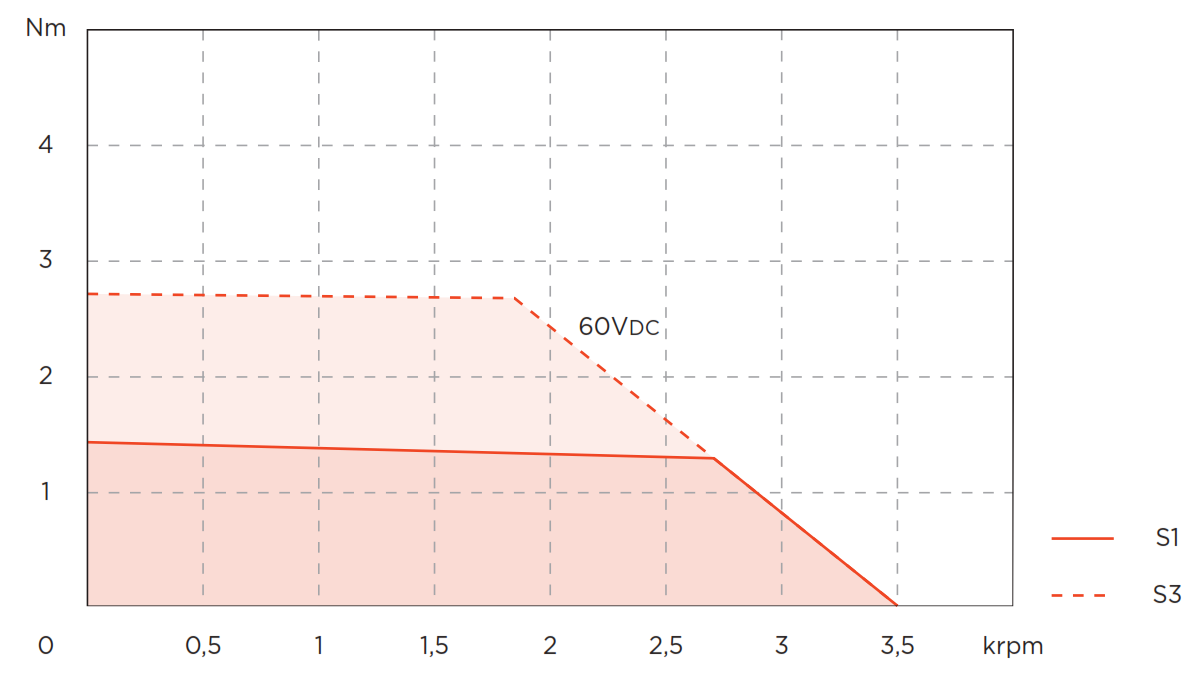

Torque vs speed curves
Rated values are calculated at 20°C ambient temperature with a heat sink size of 300x300x20 mm.

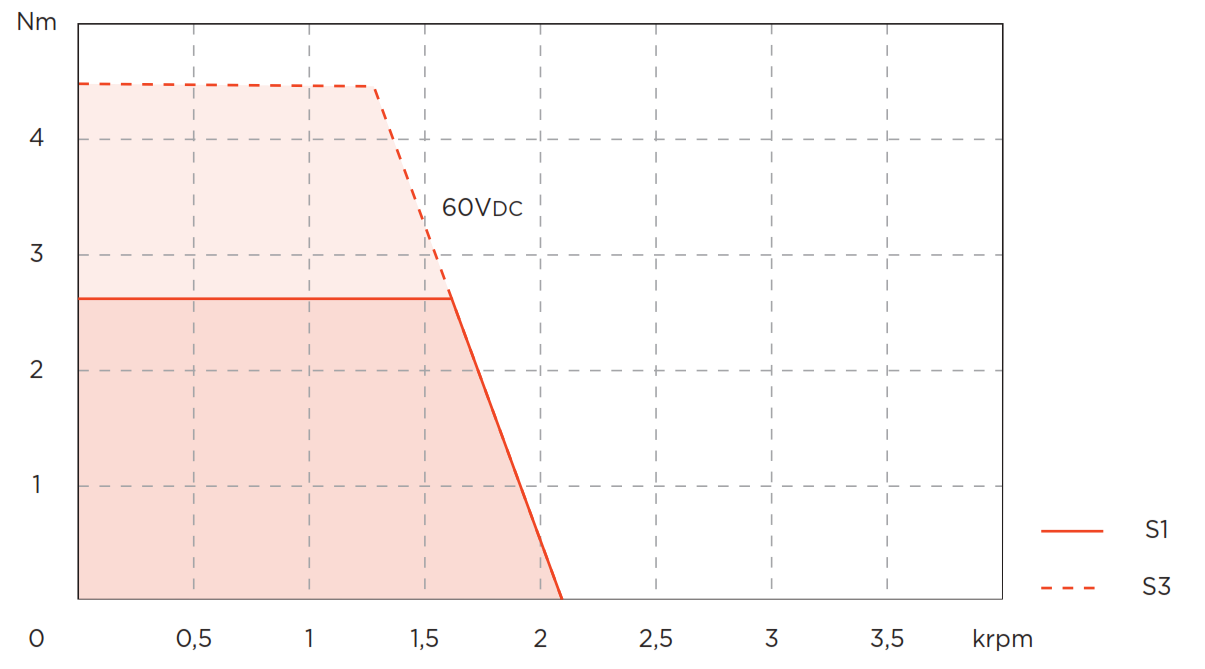

| 02-02.6-20 |

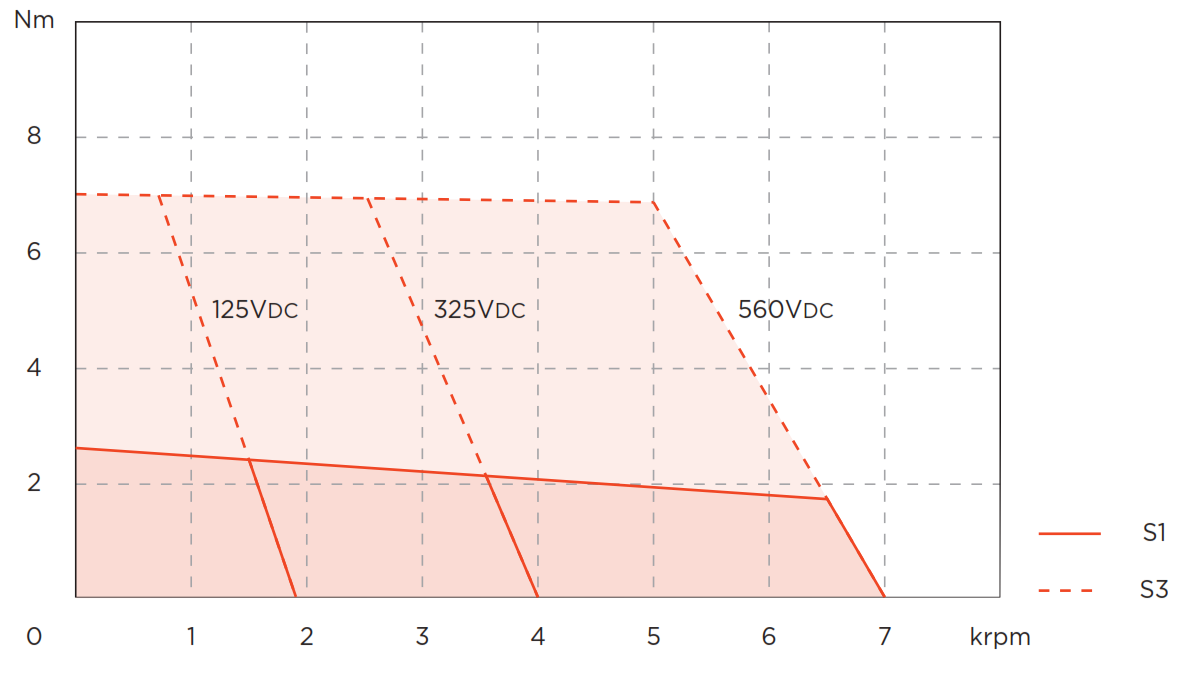

02-02.6-56 |
|
 |
|
|
|
|
|
|
 |
|
|
|
|
 |
|
